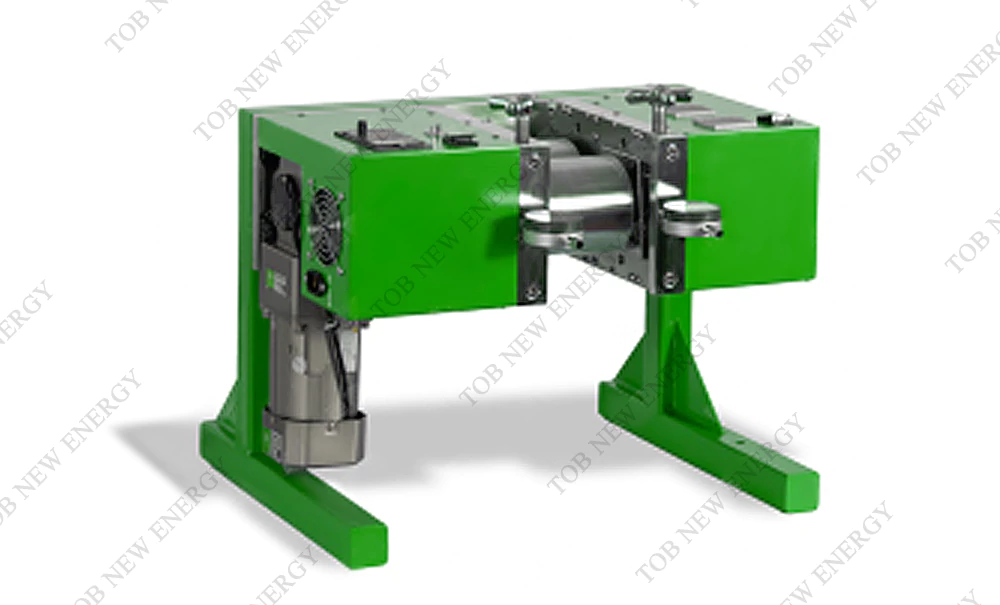

Lab Horizontal Roller Press Machine

Lab Horizontal Roller Press Machine

SPECIFICATIONS

Product Description

This Lab Horizontal Roller Press Machine is mainly suitable for electric rolling of battery materials, small amounts of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum at a certain temperature in the laboratory. The rolling thickness can be adjusted and the operation is simple. Especially suitable for thinning and increasing density of lithium battery electrode sheet.

Main feature

*Heating and rolling, adjustable temperature, and digital display.

*The rolling mill has high hardness and is coated with hard chromium on the surface, with a hardness of HRC62 and rust prevention.

*Install transparent protective panels for safe use.

*Horizontal design facilitates the feeding and rolling of strip materials.

*Using gear meshing rotation to achieve roller pressing.

*The tablet thickness and speed can be adjusted, and the appearance is exquisite and beautiful.

*Electric rolling, forming automation.

*Small size, easy operation, flexible and fast use.

Working process and debugging instructions

Rolling operation: Place the material between two rollers, press the start button, the motor starts, and the gears mesh to drive the two rollers to rotate, achieving rolling of the rollers.

Method for adjusting the thickness of the rolled material: Rotate the adjustment handwheels on the left and right sides to adjust the rolling gap to the appropriate position. Use a plug gauge (already equipped in the packaging box) to check the gap size and whether it is evenly balanced. The left and right adjustment handwheels should be evenly adjusted to avoid damaging other parts.

Temperature adjustment: The green number displayed on the thermostat indicates the current temperature setting value, and the red text indicates the current temperature detection value. Press the "up" and "down" buttons to adjust the set temperature value.

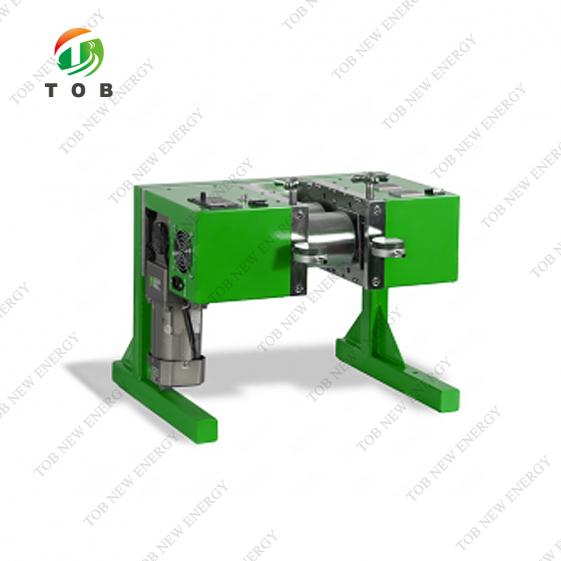

PRODUCT DISPLAY
