Roll to Roll Hot Roller Press Machine For Battery Electrode

TOB-JS100L-LX Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

Brand:
TOB NEW ENERGY
item no.:
TOB-JS100L-LX
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Roll to Roll Hot Roller Press Machine For Battery Electrode

SPECIFICATIONS

Optional Customized Service: pressure real-time display function.
The default quotation for the product is for conventional equipment without pressure display. If pressure display function is required, it is necessary to communicate with the sales personnel in advance.

1 TOB-JS100L-LX Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2 The hot roller press machine has 100mm width steel rollers. Max 200mm for cold press, Max 180mm for hot press. Such a roller can be heated up to 130°C

Model	Roll to Roll Hot Roller Press Machine TOB-JS100L-LX
Source voltage	AC 110V-220V Customized, 50HZ
Power	800W
Warranty	One Year limited warranty with lifetime support
Roller temperature	RT-130℃, adjustable and digital display
Roller diameter	2 - Φ96mm
Roller surface hardness	HRC62
Roller finish degree	>0.8
Rolling press thickness	0-2mm, Adjustable
Working speed	0-40mm/s
Rolling press width	Max 100mm for cold press, Max 80mm for hot press
Dimension(LWH)	800700350mm
Weight	About 86kg

PRODUCT DISPLAY

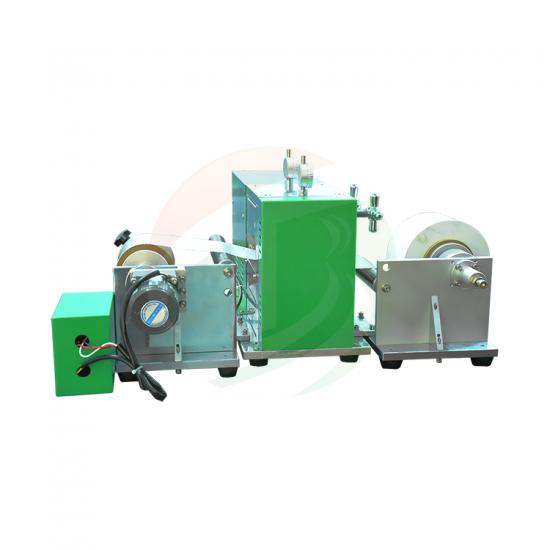

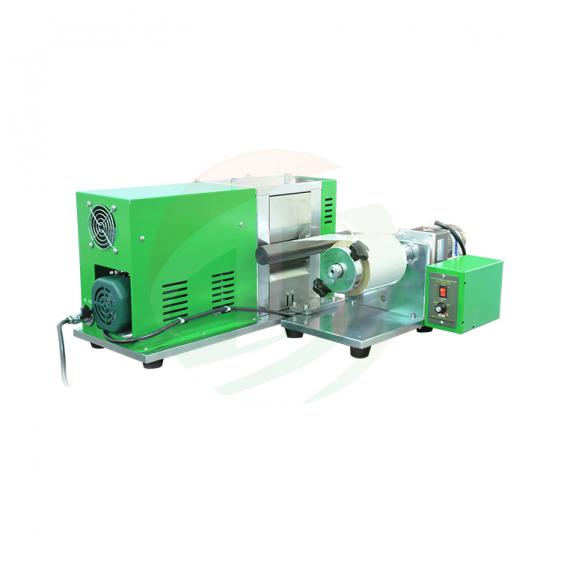

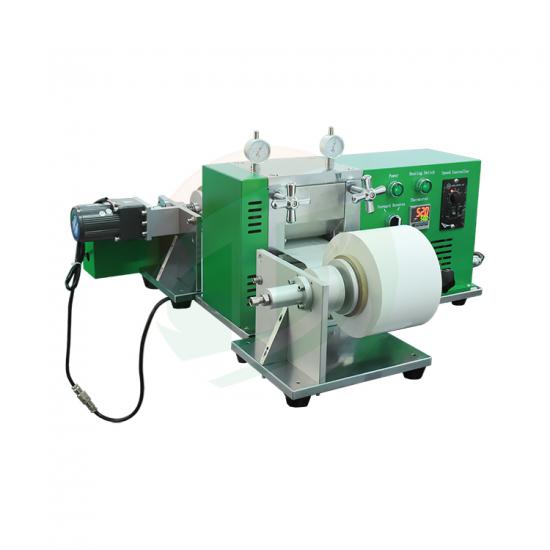

Roller Press Machine

Email : tob.amy@tobmachine.com

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609
