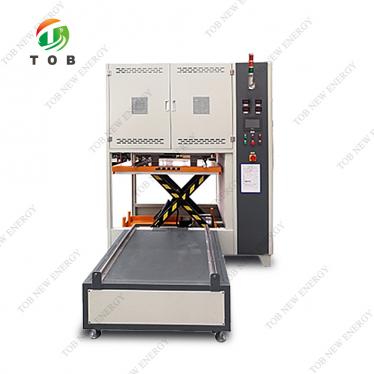

Elevator Furnace

The furnace chamber is made of imported alumina fiber material with a unique design, which is durable, has good thermal insulation performance, and will not collapse. The heating element adopts a silicon-molybdenum rod, greatly improving its service life.

1100 Degree Vertical Tube Furnace With Vacuum Pump Optional And Quartz Tube Dia 50*1000mm SPECIFICATIONS The TOB-VTL1100vertical tube furnaceadopts Electric resistance wire as heating element with fast temperature rising. (up to 1000degrees within 20mins). 40 segments programmable temperature controllers are installed with 6 groups of PID adjustment. Thislaboratory tube furnaceis the ideal laboratory equipment for universities, research institutes, industrial and mining enterprises to do High temperature atmosphere sintering, Atmosphere reduction, CVD experimental, vacuum annealing such as for preparing nano materials and film. Model Tube Size Power Voltage Heating Zone  Length Max Heating  Temperature TOB-VTL1100-I Φ50*1000mm 2.5kw AC110V/220V 450mm 1100℃ TOB-VTL1100-II Φ70*1000mm 4kw TOB-VTL1100-II Φ100*1000mm 7kw Heating element Electric resistance wire Temperature controller 40 program temperature control system, With over temperature, broken accidentally protection function, 6 groups of PID adjustment Control precision of + / - 1 ℃ Furnace chamber  Polycrystal alumina fiber Tube material Gas refining quartz tube (or corundum tube) Vacuum Flange &  Fitting Ports Stainless steel flange with Gas nozzle, valve, pressure gauge Pressure measure  system Pressure gauge (Resistance vacuum gauge can be chosen according requirements) Air intake control Flow meter (Protons flow controller can be chosen according requirements ) Vacuum system Vacuum pump can be chosen Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

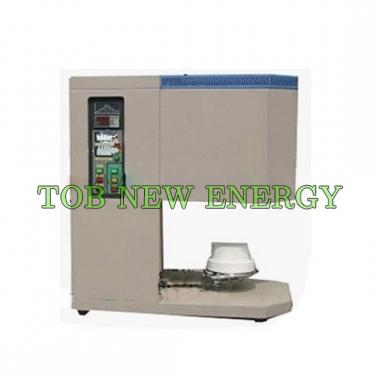

High Temperature 1700℃ Crucible Furnace For Powder Sintering SPECIFICATIONS Thiscrucible furnaceadopts silicon molybdenum rods as heating element, using 708P type intelligent temperature control instrument and B double platinum rhodium thermocouple together to adjust the internal temperature of the furnace temperature measurement, automatic control. Thiscrucible furnacehas maximum temperature of 1700 ℃ For high temperature sintering. Model 1700℃ Crucible Furnace    TOB-LCF-1700C Heating mode Silicon molybdenum bar heating Furnace effective size Φ200*180mm Working temperature ≤1700℃ Max temperature 1700℃ Temperature rising speed 10℃/min Temperature accuracy  ±1℃ Source voltage AC110V/220V   50/60HZ Heating power 6.5kw General dimension 480*500*950mm Weight 110kg Structure 51 steps programmable intelligent control Fiber inner materials for temperature up to 1700℃ Lift model at bottom, simple for operation Standard configure 1pcs crucible tongs, 1pair High temperature gloves,  2pcs heating elements, 1pcs thermocouple. Warranty One year limited warranty with lifetime support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
