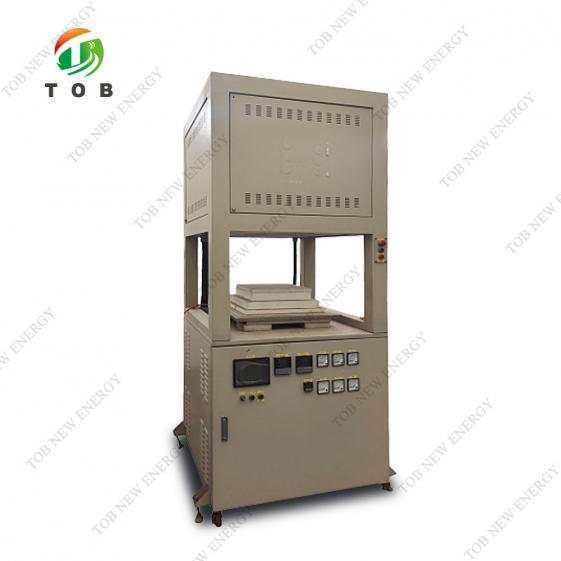

High Temperature Elevating Furnace

The furnace chamber is made of imported alumina fiber material with a unique design, which is durable, has good thermal insulation performance, and will not collapse. The heating element adopts a silicon-molybdenum rod, greatly improving its service life.

Brand:
TOB
item no.:
TOB-Z1100
order(moq):
1
Payment:
L/C,T/T,Western Union
product origin:
China
Lead Time:
7

inquiry now

Product Detail

High Temperature Elevating Furnace

SPECIFICATIONS

1. The furnace chamber is made of imported alumina fiber material with a unique design, which is durable, has good thermal insulation performance, and will not collapse. The heating element adopts a silicon-molybdenum rod, greatly improving its service life.

2. The electric furnace door can be lifted and lowered, and can be pulled out of the furnace body. It features a fully automatic lifting system and an electric hydraulic lifting system.

3. A 485 conversion interface is reserved, which can be interconnected with a computer through our software to achieve remote control, real-time tracking, historical records, output reports, and other functions for a single or multiple electric furnaces. A paperless recording device can also be installed to achieve data storage and output.

4. The temperature controller is equipped with a double-line LED display panel, mainly used for temperature control. It has high temperature control accuracy (within ±1°C), responsive reaction, programmable PID control, deviation, over-temperature alarm, and power-off protection, ensuring safe and reliable operation.

Technical Parameters：

Model	Furnace size DxWxH	Rated power	Max. temperature	Heating element	Voltage
TOB-Z1100-20	200X200X200mm	5kw	1100℃	Resistance wire	220V/380V
TOB-Z1400-20		7kw	1400℃	Silicon carbide rod
TOB-Z1700-20		8kw	1700℃	Silicon molybdenum rod
TOB-Z1100-30	300x300x300mm	7kw	1100℃	Resistance wire	220V/380V
TOB-Z1400-30		13kw	1400℃	Silicon carbide rod
TOB-Z1700-30		15kw	1700℃	Silicon molybdenum rod
TOB-Z1100-50	500x500x500mm	15kw	1100℃	Resistance wire	220V/380V
TOB-Z1400-50		23kw	1400℃	Silicon carbide rod
TOB-Z1700-50		25kw	1700℃	Silicon molybdenum rod
TOB-Z1100-100	1000x700x600mm	50kw	1100℃	Resistance wire	220V/380V
TOB-Z1400-100		70kw	1400℃	Silicon carbide rod
TOB-Z1700-100		100kw	1700℃	Silicon molybdenum rod
TOB-Z1100-120	1200x800x800mm	65kw	1100℃	Resistance wire	220V/380V
TOB-Z1400-120		100kw	1400℃	Silicon carbide rod
TOB-Z1700-120		120kw	1700℃	Silicon molybdenum rod

Product Display

Elevating Furnace

Left and right discharge：

Elevating Furnace
