Box Furnace

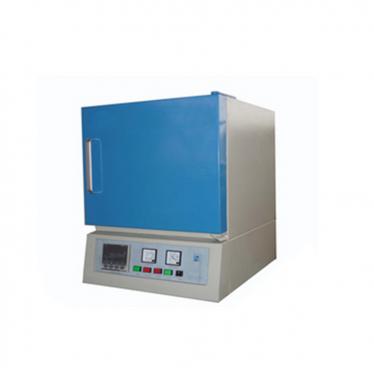

1200 Degree Box Chamber Furnace This furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy conservation. It is a special and ideal equipment developed for high-temperature sintering, high-temperature annealing, melting, and analysis in universities, research institutions, and industrial and mining enterprises.

1400 Degree Box-type High Temperature Furnace This furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy conservation. It is a special and ideal equipment developed for high-temperature sintering, high-temperature annealing, melting, and analysis in universities, research institutions, and industrial and mining enterprises.

1700 degree  Box-Type High Temperature Furnace This furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy conservation. It is a special and ideal equipment developed for high-temperature sintering, high-temperature annealing, melting, and analysis in universities, research institutions, and industrial and mining enterprises.

1800 degree Intelligent Lab Chamber Furnace This furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy conservation. It is a special and ideal equipment developed for high-temperature sintering, high-temperature annealing, melting, and analysis in universities, research institutions, and industrial and mining enterprises.

1100℃ Ceramic Debinding Furnace It is specifically designed for chemical element analysis and high-temperature heat treatment such as quenching, annealing, and tempering of small steel parts in the laboratories of industrial and mining enterprises, universities, and scientific research institutions. It can also be used for high-temperature heating such as sintering, dissolution, and analysis of metals, stones, and ceramics.

1400 chamber furnaces

1100 chamber furnaces mini

1600 chamber furnaces SPECIFICATIONS Model TOB-DSP-KF1600-I TOB-DSP-KF1600-II TOB-DSP-KF1600-III TOB-DSP-KF1600-IV TOB-DSP-KF1600-VI TOB-DSP-KF1600-VI TOB-DSP-KF1600-VII Power 3 KW 5KW 7KW 9KW 12KW 21KW 65KW Furnace tube size(mm) 160X150X150 200X200X200 300X200X200 300X250X250 400X300X300 500X400X400 1200X600X600 Dimension 510X490X780 560X550X850 560X630X850 610X630X930 660X730X1340 910X900X1500 1670X1180X1500 Power supply voltage 220V 380V Phase number Single-phase Three Phase Heating element 1700 type silicon molybdenum rod Temperature control mode 一.Yudian temperature control 30 sections can only use PID temperature regulation. 二.FP93 temperature control (from Japan) (Replace imported instruments, for an additional fee) 1,40 section program temperature control can be divided into 4,2,1 group program,  if the program is divided into four groups, each program segment 10, 2,6 group PID control, low, medium and high temperature can each with a set of PID,  such that each segment is capable of controlling the temperature is very accurate. Control accuracy +/- 1 ℃ Heating rate ≤30 ℃/ Min Recommended heating rate 15℃/ Min Max temperature 1600 ℃ Rated temperature 1550 ℃ Surrounding surface temperature ≤35℃ Thermocouple Type Type B Triggers 1.Phase trigger (with soft start and current limiting function) 2.Current limiting function: no matter how to adjust the heating time,  our furnace transformer secondary current through the post is limited to 160A,  limited protection of equipment, no matter how you operate, the device will not burn. 3.Soft-start function: When the power current will slowly increase,  the impact on the heating element is small, help extend the life of the heating element SCR 106 / 16E Germany Semikron Certification CE  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

The TOB-KBF1600 Model furnace isLaboratory High Temperature Muffle Furnaceadopts 1800 typeSilicon molybdenum rods as heating element, using double shell structure and 40 program temperature control system, electric phase-shifting trigger, thyristor control, furnace chamber using polycrystal alumina fiber material, double layer between the furnace shell is equipped with air cooling system, to rise and down temperature quickly.

The TOB-KBF1700Degree Muffle Furnaceadopts 1800 type Silicon molybdenum rods as heating element, using double shell structure and 40 program temperature control system, electric phase-shifting trigger, thyristor control, furnace chamber using polycrystal alumina fiber material, double layer between the furnace shell is equipped with air cooling system, to rise and down temperature quickly.

TOB-MF1200 Muffle furnaceis a 1200℃ laboratory muffle furnace mainly used for battery materials or other powder materials and ceramic sintering research.

The TOB-KBF1100 Modelmini muffle furnaceadoptselectric Resistance wireas heating element, using double shell structure and 40 program temperature control system, electric phase-shifting trigger, thyristor control, furnace chamber using polycrystal alumina fiber material, double layer between the furnace shell is equipped with air cooling system, to rise and down temperature quickly. (Up to 1000℃ within 20mins)

The TOB-KBF1400 Modelsmall muffle furnaceadoptssilicon carbideas heating element, using double shell structure and 40 program temperature control system, electric phase-shifting trigger, thyristor control, furnace chamber using 1600 type polycrystal alumina fiber material, double layer between the furnace shell is equipped with air cooling system, to rise and down temperature quickly.

1100 High Temperature chamber furnaces

High purity ceramic fiber insulation (energy saving 30% and weight lighter about 30% than old furnace ). Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C. Perfect sealing furnace door and easy open.

High Temperature chamber furnace
