Battery Material Analyzer

TOB-EASY-V1220 Automatic Surface Area & Porosimetry Analyzer Application Fields:Battery materials,Petrochemical Industry Medicine,Environmental protection materials,Nano materials and Other powder and granular materials

TOB-CID-6.0 two-station lithium battery and cap pressure testing machine is used in the production process of lithium batteries.

Four channels simultaneously test the real-time expansion thickness of silicon-based or graphite-based batteries(coin cell, stacking pouch cell, winding pouch cell) during in-situ charge and discharge, which is used to evaluate the expansion properties of materials and batteries.

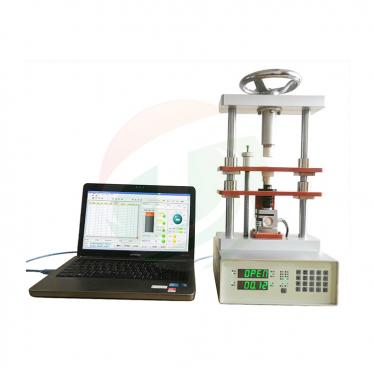

TOB-PRCD1100 & TOB-PRCD2100 available in two different models. Application fields: Carbonaceous powders, metal oxide or metal composite powders

The Semiconductor Power Tester Resistivity in type ST-2722-SZ can measure the resistivity of any  semiconductor powder material. It has no requirement for materials. It only requires the sample`s test value to be within the measuring range of the instrument.

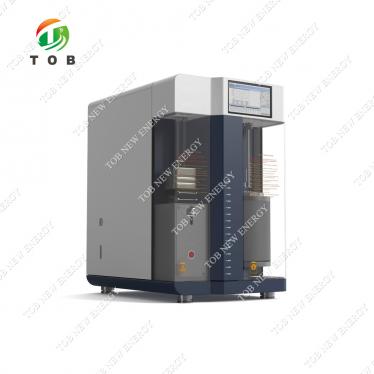

Surface Area and Pore Size Analyzer For Powder Material Research SPECIFICATIONS Power Voltage: 100V~220V ± 10V  Frequency: 50/60Hz Maximum power: 300W Connection: grounding, single-phase power socket Physical properties Length: 60cm (23.6 inches) Width: 48cm (18.9 inches)   Height: 74cm (29.1 inches) Weight: 60kg (132.3 lbs) Accessories Weight: 30kg (66.1 lbs )  Installation requirements (L * W) 100 * 60cm (not including space computers taking up) Functions  ● Surface area measurement: BET surface area (Single-point and multi-point), Langmuir surface area, T-plot method outer surface area,  T-plot method the total inner surface area of microporous, BJH adsorption cumulative surface area of the total pore, BJH desorption cumulative surface area of the total pore ● Determination of pore volume: Single point total pore volume,BJH adsorption cumulative total pore volume    BJH desorption cumulative total pore volume    T-plot method the total pore volume of micropore ● Determination of average pore size:    Adsorption average pore diameter   BJH adsorption average pore diameter   BJH desorption average pore diameter   The most frequency pore ● Pore size distribution:   BJH adsorption and desorption differential pore size distribution (dV / Dr-D) and (dV / dlogD-D)   BJH adsorption and desorption integral distribution (or cumulative distribution)   MP method micropore distribution Technical Parameters Test principle: the static volumetric method, gas adsorption; Analysis Models: BET, Langmuir, BJH, t-plot, DR, MP and NLDFT; Measuring range: surface area ≥ 0.005M2/g, no upper limit; pore size 2 _ 500nm; pore volume 0.0001cc/g, no upper limit; Sorption gas: N2 (high purity); Ar, Kr, CO2, etc. available Analysis No: Two independent analysis ports  Degassing stations: Two Sample Type: powders, granules, fibers, flakes and other materials  Sensor：Two sensors, 0_1000 torr P.S (0_133kpa);  Test Efficiency: multi-point BET surface area _12 minutes per sample; Determination pore size distribution from adsorption isotherms _1.5h per sample;  Determination pore size distribution from adsorption and desorption isotherms _3.5 h per sample. Nitrogen Partial Pressure: P/Po 4×10-5 _ 0.998, the minimum resolvable relative pressure  5 × 10-5 Ultimate vacuum: 4.0 × 10-2Pa（3×10-4  torr） Pressure Accuracy: ≤ ± 0.15% (F.S) Repeatability accuracy: surface area ≤ ±1.0 % （surface area）;  ≤2nm (pore size) Operation Mode: Automatic  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

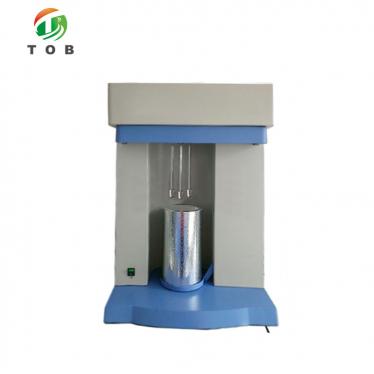

Bet Surface Area Analyzer With Testing Range ≥ 0.01m2/g SPECIFICATIONS Power Voltage: 100V~220V ± 10V  Frequency: 50/60Hz Maximum power: 300W Connection: grounding, single-phase power socket   Physical properties Length: 61cm (24.0 inches) Width: 36cm (14.2 inches) Height: 69cm (27.2inches) Weight: 49kg (108.0 lbs) Accessories weight: 31kg (68.3 lbs) Installation requirements (L * W) 100 * 60cm (not including space computers taking up)   Work environment Temperature: 20 ℃ -28 ℃ Maximum relative humidity: 70%   Technical Parameters    Test principal: Continuous Flow Chromatography method, Low temperature nitrogen adsorption Test methods: Direct Comparison method  Gas: mixed gas of high purity nitrogen and helium (The proportion of nitrogen and helium is 3/7; and gas purity is 99.999%). Flow control: automatic control program, P / Po 0.05 - 0.35, control accuracy error ≤ 0.5%;  Measuring range: Surface area ≥ 0.01m2/g, no upper limits;   Sample NO:  one standard sample and 3 samples tested    Test Efficiency: Direct comparison measures specific surface area: 15 minutes for three samples Repeatability Accuracy:  ≤ ±1 % Data acquisition: high-precision data acquisition and processing chip, high anti-interference ability. Data processing: WINDOWS-compatible data processing software, completely green without installing, providing multi-mode data analysis, graphical processing interface, real-time monitoring experiment, simple operation. Control system: The entire testing process is completely automatic. With large volume dewar and liquid nitrogen surface control technology, the whole experiment don’t need add liquid nitrogen.  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

The BET Surface Area Analyzer work principle isothermal physical international general adsorption static volumetric method,the automatic control of the whole computer, without the need for manual monitoring.

The TOB-BETSpecific Surface Area Instrumentis used for Battery materials.

The TOB-BETSpecific Surface Area Instrumentis used for Battery materials.

Best Price For Surface Area Analyzer For Powder Materials Research SPECIFICATIONS The TOB-BETSpecific Surface Area Instrumentis used for Battery materials, magnetic materials, catalyst, adsorbent, cement, ceramic raw materials, metallurgical raw materials, carbon, silica, inorganic materials, coatings, abrasive, nano materials, medicine powder, rare earth, porous material, composite material powder and granular material specific surface area measurement.industry, building materials, coatings, abrasive and other industries. Model Specific Surface Area Tester  TOB-BET-01 Voltage supply AC 110V/220V  50HZ/60HZ±10% Power 300W Warranty One year limited warranty with lifetime support  Technical principle Dynamic nitrogen adsorption surface area tester,  using gas chromatography, low temperature adsorption principle Measuring range 0.1m2/g～3500 m2/g Measure time 5min/sample, Can test one sample every time Measuring accuracy ＜ ±1％ Testing method Single point test, contrast test, multi point (BET) analysis. Dimension(L*W*H) 700*360*710mm  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

The tap densityis an important index of powder materials quality.

TOB-TDT-JZ-1 type powder compactiontap density instrumentapplicable to the pharmaceutical, battery materials, electronic materials, ceramics, powder coating, metal powder, food, chemical industry, building materials, coatings, abrasive and other industries.

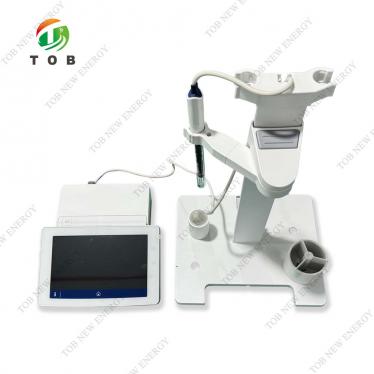

0-14 PH Meter Tester With Auto Temperature Compensation For Lab SPECIFICATIONS Model PH Meter   TOB-PHS-3E Testing parameter pH、mV, Temperature Testing range pH (0.00~14.00)pH mV （-1999～1999）mV Temperature （0.0～99.9）℃ Resolution pH 0.01pH mV 1mV Temperature 0.1℃ Error pH ±0.01pH±1 mV ±0.1%（FS） Temperature ±0.3℃±1 Stability （0.01pH±1）/3h Function Temperature compensation Auto/Manual（0.0～99.9）℃ Calibration Two point calibration Buffer recognition Automatic recognition of 3 kinds of standard buffer solution  of 4.00pH, 6.86pH, 9.18pH Display LCD Source voltage AC110V/220V, 50/60HZ Dimension(L*W*H) 300*220*90mm Weight 1.5kg Warranty One year limited warranty with life time support  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Digital PH Meter With Manual Temperature Compensation 0-14 Testing Range SPECIFICATIONS Model TOB-PHS-3C Testing parameter pH、mV Testing range pH (0.00~14.00)pH mV （-1999～1999）mV Resolution pH 0.01pH mV 1mV Error pH ±0.01pH±1 mV ±0.1%（FS） Stability （±0.01pH±1）/3h Temperature compensation Manual (0.0～60.0)℃ Source voltage AC110V/220V, 50/60HZ Dimension(L*W*H) 300*220*90mm Weight 1.5kg Warranty One year limited warranty with life time support Structure 1 Large screen LCD segment liquid crystal display 2 Automatic standard buffer solution recognition function, two point calibration 3 Manual temperature compensation function PACKAGE AND SHIPPING 1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. SERVICES 1 We supply machines with battery technology support. 2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. We cooperated with each other, and we will do TOP OF THE BEST battery  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

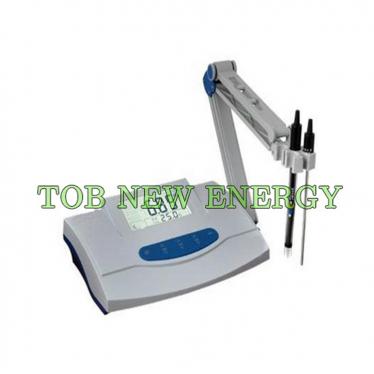

Electrical Conductivity Meter With Temperature Compensation Function（-5.0～135.0）℃ SPECIFICATIONS This TOB-DDSJ-318 electrical conductivity meter Can test Electrical conductivity, Electrical resistivity, TDS, Salinity, Temperature for （-5.0～135.0）℃ Model Conductivity Meter With Temperature Compensation  TOB-DDSJ-318 Source voltage AC 220V/110V, 50/60HZ Warranty One year limited warranty with lifetime support Advantages 1 Can test Electrical conductivity, Electrical resistivity, TDS, Salinity, Temperature 2 Adopt microprocessor technology, with automatic temperature  compensation, automatic calibration, automatic switch range, etc 3 Big screen, blue backlight, double digital display LCD  4 With standard RS - 232 and USB interface, can connect with PC Testing range Electrical conductivity : 0.000μS/cm～199.9ｍS/cm Electrical resistivity : 5.00Ω.cm～20MΩ.cm TDS : 0.000 mg/L～19.99g/L Salinity : (0.0～8.00)% Temperature :（-5.0～135.0）℃ Resolution ratio Electrical conductivity : 0.001μS/cm、0.1ｍS/cm  Electrical resistivity : 0.1Ω.cm TDS : 0.001 mg/L  Salinity :0.01% Temperature : 0.1℃ Testing error Electrical conductivity : ±0.5％FS  Electrical resistivity : ±0.5％FS TDS : ±0.5％FS Salinity :±0.1% Temperature : ±0.3℃ Constant conductance pool with  best conductivity measurement range Electrode constant (cm-1) 0.01 0.1 1 10 Test range (μS/cm) 0.-19.99μS/cm 2-199.9μS/cm 20.0μS/cm- 19.9ms/cm 200μS/cm- 199.9ms/cm Temperature compensation scope （-5.0～135.0）℃ Dimension(L*W*H)  250×195×100mm Weight About 2kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

This TOB-DDS-307Aelectrical conductivity metercan testConductivity, TDS, temperature, selecting electrode measured high pure water.

Automated True Density Tester For True Density, True Size, Measured Skeletal Density, Open Porosity, Obturator Porosimetry.

TOB-PHBJ-260 portable PH tester is high quality ph testing equipment with 0-14 testing range.

TOB-PHB-4PH Meteris portable ph testing equipment with 0-14 ph testing range.
