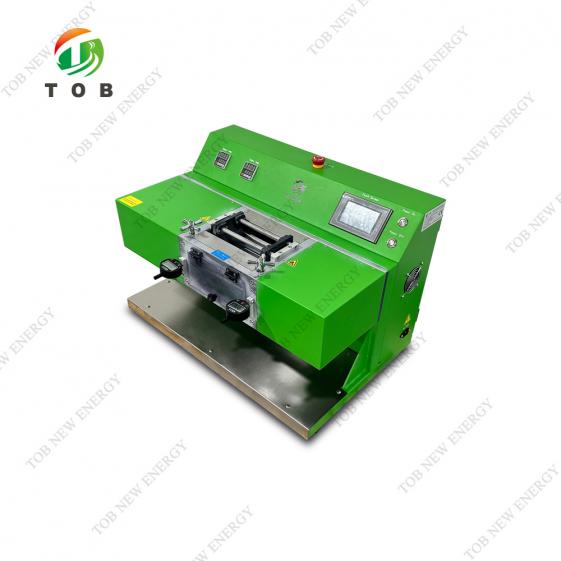

Integrated Double Servo Heating Calendering Machine for Dry Electrode Research

Integrated Double Servo Heating Calendering Machine for Dry Electrode Research

SPECIFICATIONS

1. Product Introduction

This calendering machine is mainly suitable for electric rolling of non-ferrous materials such as battery materials in the laboratory at a certain hot temperature. The rolling thickness is adjustable, and the operation is simple.

It is especially suitable for ithium ion battery dry electrode sheet research.

Dual servo control is accurate and can rotate asynchronously.

2. Main features

* High-precision dual servo control, asynchronous rotation.

* Heating rolling, upper and lower temperature controllers are independently controlled, temperature is adjustable, and digital display.

* Roller internal heating, precise temperature control.

* Can choose to work with or without heating.

* Roller hardness is high, and the surface is hard chrome plated.

* Adopt inclined blocks to adjust the gap between the sheets, good self-locking, high adjustment accuracy, electronic meter display.

* High rolling accuracy, roller cylindricality≤±2um.

* Digital display of sheet thickness and speed, accurate observation and adjustment of speed, exquisite and beautiful appearance.

* Electric rolling, automatic, can be operated in forward and reverse directions.

* Small size, easy operation, flexible and fast use.

* PLC screen control, automatic, accurate adjustment of degrees.

* Equipped with a funnel for convenient powder feeding.

3. Technical parameters

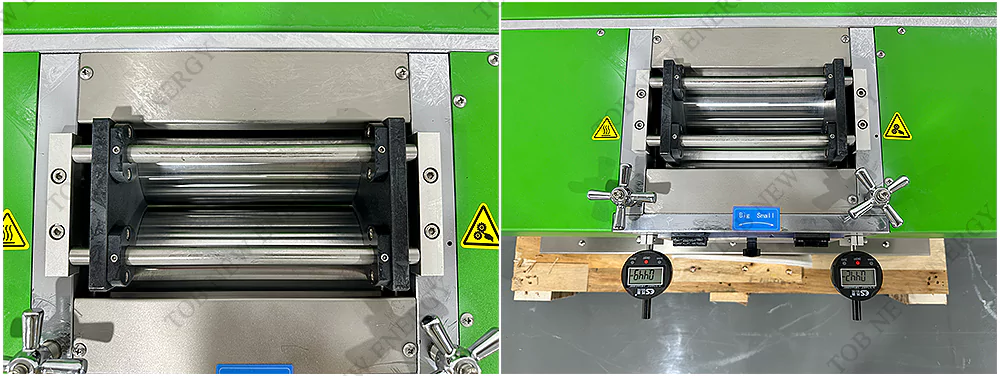

PRODUCT DISPLAY
