Hydraulic Press Machine For Coin Cell Electrode

TOB-YP180 Hydraulic press machineis a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample.

item no.:
TOB-YP180
order(moq):
1 set
Payment:
L/C,T/T,Western Union, Paypal
product origin:
China
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

Laboratory Hydraulic Press Machine With built in Hydraulic Pump For Coin Cell Research

SPECIFICATIONS

1 TOB-YP180 ModelHydraulic press machineis a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample.

2 TheHydraulic press machineis mainly used for laboratory tablet battery materials manual press, and Pressure powdery cake. It is mainly used for coin cell/ button battery electrode lab press.

3 TheManual press machinemould can be customized according to customer’s requirements.

Model	Hydraulic press machine TOB-YP180
Press die size	Diameter 68mm, customized
Press stroke	30mm
Advantages	By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never rust Using high quality imported mould material
Rocker Pressure	<6kg
Max Pressure	200kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
Working Pressure	80-100kg/cm2
Dimension(LWH)	232165320mm
Weight	28kg
Shipping Weight	35kg
Warranty	One Year limited warranty with lifetime support

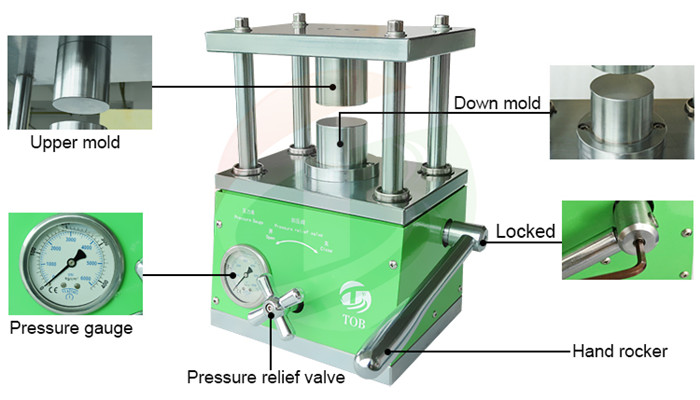

PRODUCT DISPLAY

Coin Cell Electrode Hydraulic Press Machine

Hydraulic Press Coin Cell Electrode Machine

PACKAGE

Electrode Hydraulic Press Machine
