Semi-automatic OCV Sorting Machine for Pouch Cell

This OCV battery sorting machine is used for pouch cell. By scanning the QR code of the battery cell, its voltage and internal resistance data are bound, including the coding function (the coding function can be blocked), and the function of automatically picking out the poor K value of V2 and poor code scanning (compatible with V1 and V2 tests) , one-click conversion) has functions such as data binding and uploading to the MES system, which can meet the needs of various working conditions.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-BVG-PMC130
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Semi-automatic OCV Sorting Machine for Pouch Cell



SPECIFICATIONS


Basic Functions

This OCV battery sorting machine is used for pouch cell. By scanning the QR code of the battery cell, its voltage and internal resistance data are bound, including the coding function (the coding function can be blocked), and the function of automatically picking out the poor K value of V2 and poor code scanning (compatible with V1 and V2 tests) , one-click conversion) has functions such as data binding and uploading to the MES system, which can meet the needs of various working conditions.


Equipment features
The horizontal distance between the testing station and the coding station can be manually adjusted, and the product compatibility is strong.

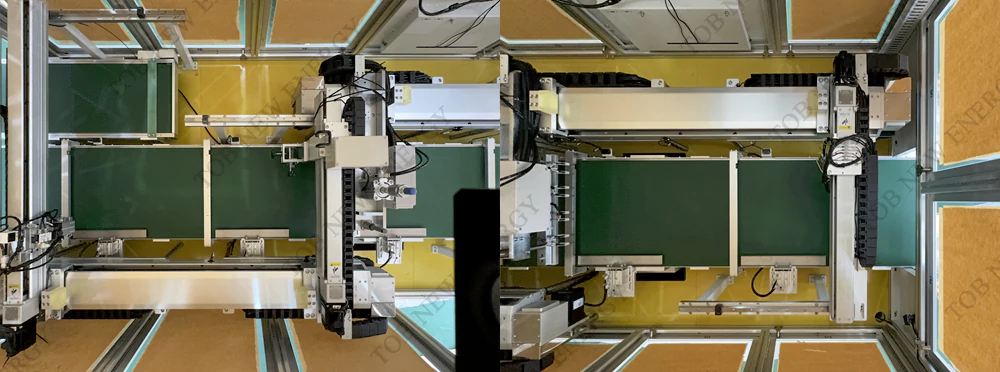

Pouch Cell OCV Sorting Machine


Equipment production workflow:

Pouch Cell OCV Sorting Machine

Pouch Cell OCV Sorting Machine

Testable product range and blister tray requirements:
Regular square type

Cells length A: 50mm-130mm(not include top seal side)
Cells width B: 30mm-85mm
Tab length C: 6mm-20mm(Below 8 mm, misjudgment is prone to occur)
Tab spacing D: 2.0mm above
Thickness: 3mm-10mm

Pouch Cell OCV Sorting Machine



Technical parameters:

Technical specifications of each system:

Item

RequIrments

Description

Speed

18-30PPM

Depends on the battery size and the number of cells pertray, the more cells in atraythe higher the efficiency

First pass rate

≥99%

Not include bad feeding material

Power

5KW

Machine running power

noise

≤60db

    Data of one meter away from the equipment during stable production



Test repeatability


Hioki 3561/BT3562

Voltage measurement range DC 20V, minimum resolution: 0.1mV, measurement accuracy:

±0.01%rdg.±3dgt.(Ex.FAST needs to add ±3dgt..,FAST/MEDIUM need add士2dgt.)

Resistance measurement range

300mQ (maximum display 310.00mQ, resolution 10μQ) ~ 32 range (maximum display 3.10002, resolution 100μQ), 2-level switching

Measurement accuracy:±0.5%rdg.±5dgt.(EX.FAST need add士3dgt.,FAST/MEDIUM need add土2dgt.)


Installation environment requirements

Item

spec

Parameter

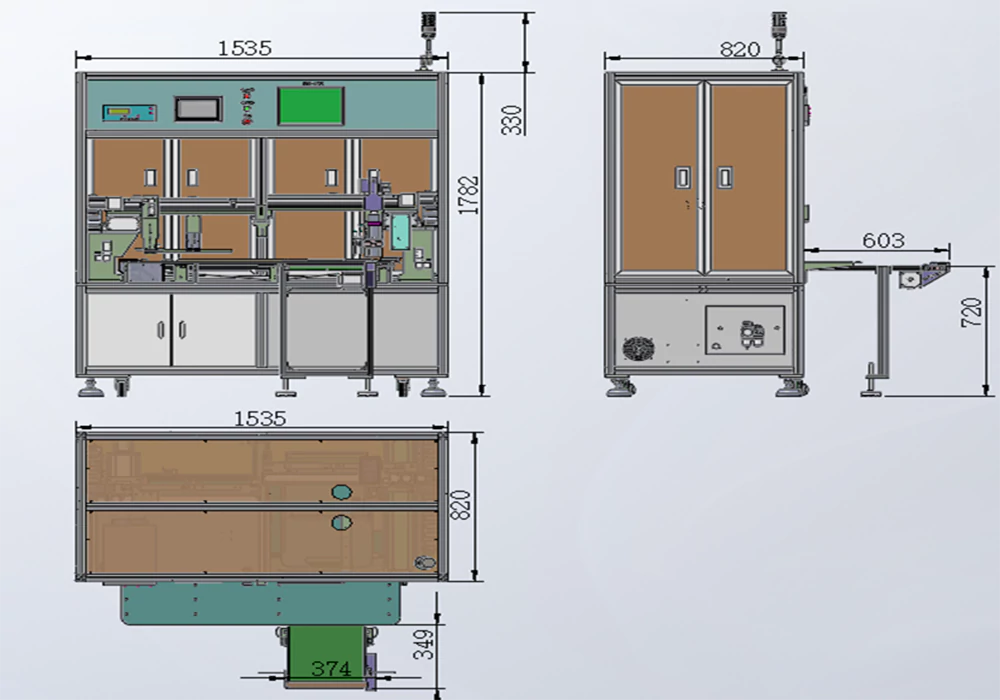

Equipment specification

size

1560*1423*1770mm(L*W*H)mm;

Note: The actual size is subject to the final design size (excluding three-color lights)

weight

About 600 kg

color

international warm gray

Environment requirements

Air

Pressure≥6bar;(provide by customer)

Vacuum

Vacuum degree≥-75KPa;(provide by customer)

Voltage

Voltage 220V 50Hz;voltage range±10%;

Power:5KW,Must have ground wire and phase loss protection

Bearing

>300kg/㎡


PRODUCT DISPLAY


Battery Sorting Machine

Battery Sorting Machine

Battery Sorting Machine

Battery Sorting Machine

Battery Sorting Machine
