Laser Welding System for Prismatic Cell Sealing

This TOB-1LP-2000-CWS laser welding system is suitable for the lid welding and filling hole welding of prismatic cells.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-1LP-2000-CWS
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Laser Welding System for Prismatic Cell Sealing


SPECIFICATIONS


This TOB-1LP-2000-CWS laser welding system is suitable for the lid welding and filling hole welding of prismatic cells. This laser welding system is suitable for prismatic cell laboratory and production. The system adopts IPG laser, CCD vision system, dust collector, chiller, etc.


Design effeciency

1PPM

YIELD

One time pass rate ≥98%, final pass rate ≥99.3%(incoming material to meet the technology.rotocol requirements, manual operation to meet technical protocol requirements, unqualified only caused by equipment)

Failure rate

≤2% (only caused by equipment)

Appearance

Refer to the color swatches provided by customer

Process

Device System Name

Key components

Specification

Remark

Qty

Upper cap pre-welding&full welding and filling port laser welding

Upper cap pre-welding&full welding and filling port laser welding machine

Continues Laser

TOB-LP-1500S

IPG

1

Laser welding head

TOB-SWH-2000



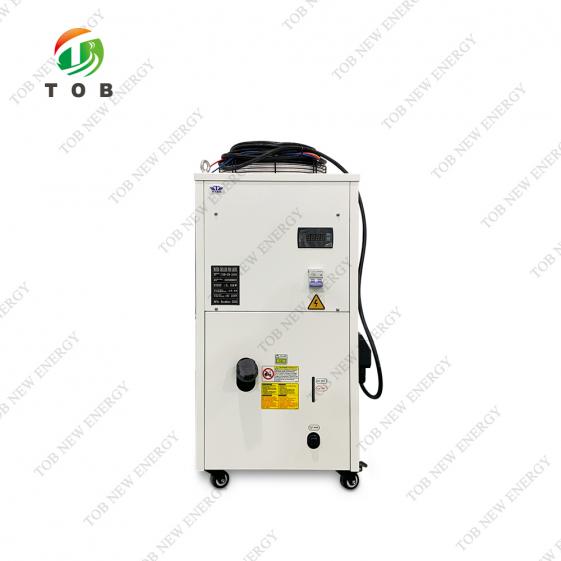

Water cooling machine

TOB-CH-2000


1

Smoke dust removal

TOB-FH-20B


1

Welding mechanism

Custom 3 axis


1

CCD vision

Custom


1

Welding fixture for cell upper cover(Compatible preweld)

Custom


1

Welding dixture for cell filling port welding

Custom


1

Cell transfer assembly

Custom 1 axi


2

Cabinet assembly

Custom


1

Control assembly

Custom


1

Software

Custom


1

Power supply

Power supply

Power distribution cabinet

Custom


1

Cable bridge

Custom

30m

1

This laser welding system is mainly used to realize automatic laser welding, pre-welding and full welding between upper cover and casel also filling port of the power battery. During the operation, the device is not allowed to cause any damage such as scratches to the surface or interior of the battery.

Equipment size: 1.6m(L)x1.5m(W) x2.5m(H)


Installation conditions

Item

Using quantity/parameter

Power supply requirements

Three phase 380V±5%/50Hz Rated power:≤21KW

Rated current:≤36A

Gas supply demand

Ccompressed air: pressure0.5-0.7Mpa

Nitrogen:pressure 0.3-0.7 Mpa

Environmental requirements

Temperature:0-45℃

Humidity:≤90%


PRODUCT DISPLAY


Laser Welding System

Laser Welding System

Laser Welding System

Laser Welding System

Laser Welding System
