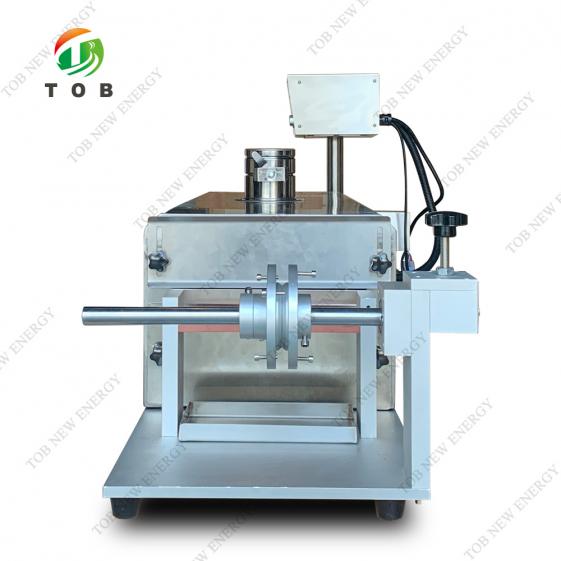

Desktop Roll to Roll Continuous Coating Machine

TOB-TBJ-180C desktop continuous coating machine is a small roll to rolling coating machine for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.

Brand:
TOB NEW ENERGY
item no.:
TOB-TBJ-180C
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Desktop Roll to Roll Battery Electrode Continuous Coating Machine for Lab

SPECIFICATIONS

TOB-TBJ-180C continuous lab coating machine is a combination assembly of high precision modular coating station mechanism, and can be used for continuous coating proofing or small production research. The machine is specially used for the continuous coating process of lithium ion battery cathode and anode coating. It is suitable for small scale coating in universities and enterprises. It can also be used in ceramic film, crystal film, special nanometer film, etc. The fuselage is made of stainless steel, beautiful, durable, surface spray treatment, easy to operate and so on.

Model	Desktop Roll to Roll Continuous Coating Machine TOB-TBJ-180C
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	3kw
Warranty	One Year limited warranty with lifetime support
Suitable material thickness	Aluminum foil : 0.01-0.03mm Copper foil : 0.006-0.020mm
Max electrode width	50-150mm
Coating speed	0-2m/min, adjustable
Max baking temperature	100℃,PID control mode
Tension control	The material feeding reel can be discharged by adjusting the knob screw to change the tension. The materials winding reel can be charged by adjusting the mechanical tension control.
Coating thickness	0.01mm-2mm
Coating thickness accuracy	0.01mm
Dimension (LW)	1800* 350 * 580 mm
Weight	About 130kg
Packing dimension	2000660750mm
Packing Weight	About 160kg

PRODUCT DISPLAY

Coating Machine

Lab Coating Machine

Desktop Coating Machine

Roll Coating Machine
