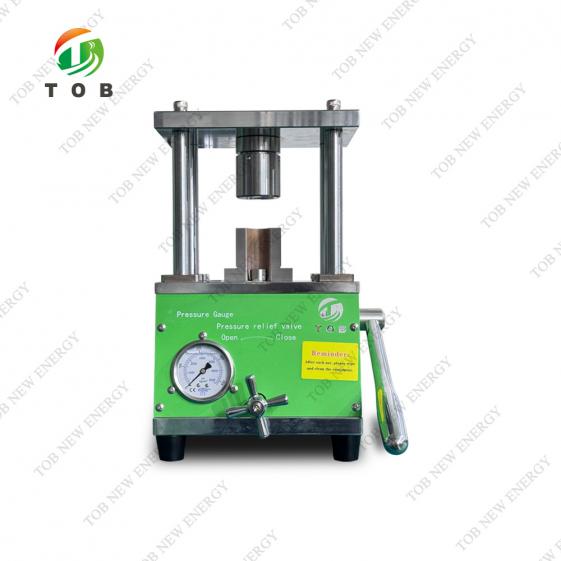

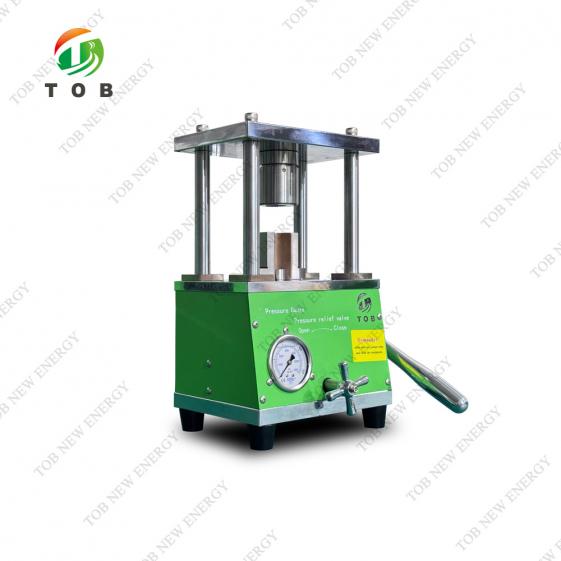

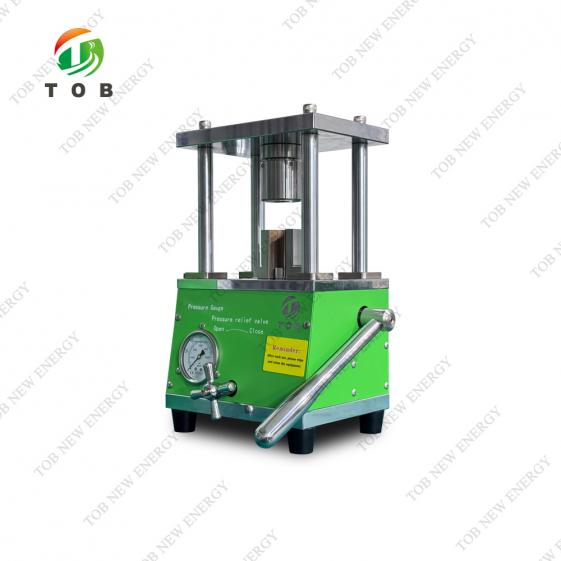

Manual Sealing Machine for Cylindrical Cell Cans Third Sealing

This TOB-CF650-3 manual sealing machine is suitable for cylindrical Cell cans third sealing. Standard 18650 cylindrical battery sealing die (third sealing) (other cylindrical battery sealing dies are optional).

Brand:
TOB NEW ENERGY
item no.:
TOB-CF650-3
order(moq):
1set
Payment:
L/C, T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Manual Sealing Machine for Cylindrical Cell Cans Third Sealing

SPECIFICATIONS

1.Configure sealing die：

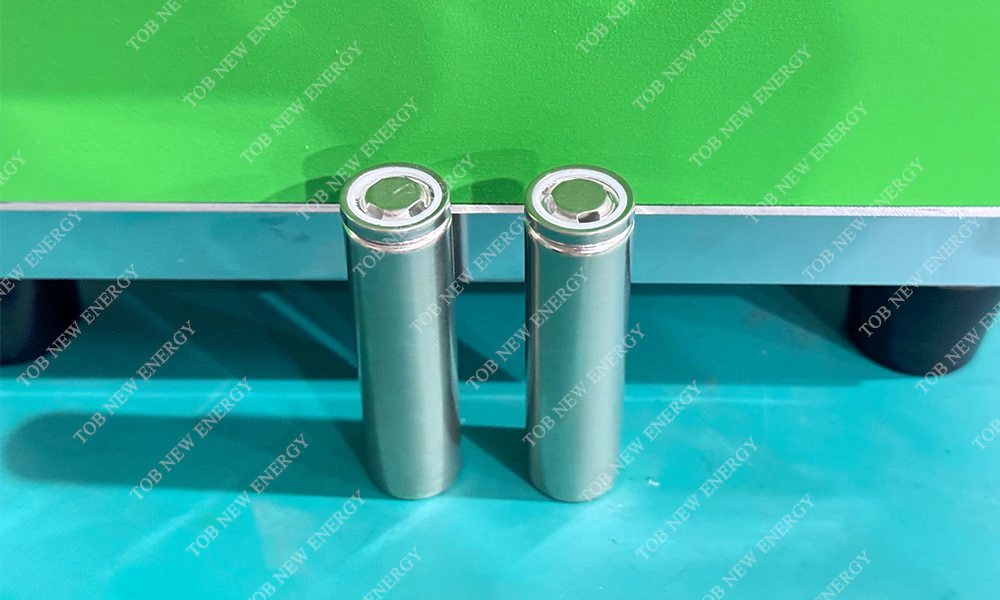

Standard 18650 cylindrical battery sealing die (third sealing) (other cylindrical battery sealing dies are optional).

2.Main features：

1) The sealing edge is flat, with good air tightness, high dimensional accuracy, high efficiency and good consistency.

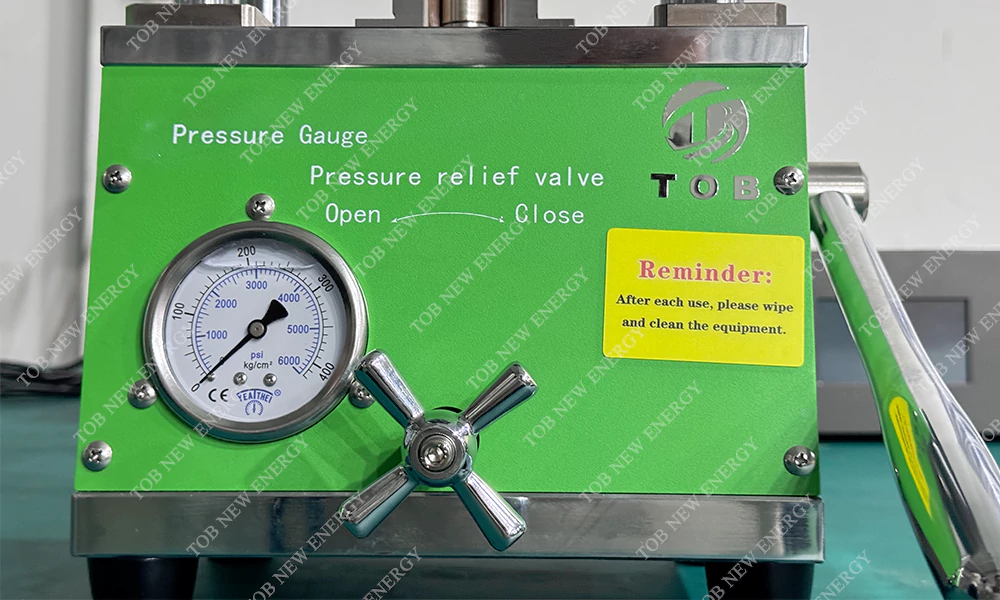

2) The built-in pressure gauge can observe and accurately control the sealing pressure.

3) It adopts hydraulic drive, and the battery seal is free of vibration and leakage.

4) Specially designed hydraulic structure saves labor in operation.

5) Precise mold design ensures accurate and reliable sealing and forming, solid steel structure design, stable and safe use.

6) Small size, easy to operate, and can be operated in glove box.

7) Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding and other advantages.

3.Technical parameter：

Sealing mold	Standard 18650 cylindrical battery sealing die (third sealing) (other cylindrical battery sealing dies are optional)
Operating force of hand rocker	Less than 6kg
Pressure gauge reading of normal cylinder battery encapsulation pressure	At about 80~100kg/cm2, the machine has been adjusted before leaving the factory. If higher pressure is required under special circumstances (the maximum pressure is 200kg/cm2, about 8 tons of pressure), it can be adjusted only after consulting the manufacturer.
Frame material	High-strength chrome steel, the surface will never rust after environmental protection electroplating and spraying treatment
Dimension	235mm X 190mm X 350mm
Weight	25kg
Mold material imported from Japan.

PRODUCT DISPLAY

Manual Sealing Machine

More battery sealing machine for cylindrical cell cans sealing

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609
