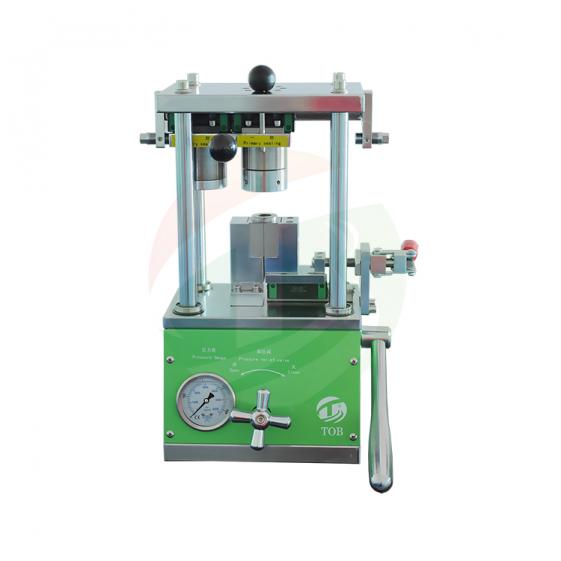

Hydraulic Battery Sealing Machine for Cylinder Cell and Coin Cell

TOB-CF-650 is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs.

Brand:
TOB NEW ENERGY
item no.:
TOB-CF650
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN
Lead Time:
7 days

inquiry now

Product Detail

Hydraulic Crimping Machine for 18650 Cylinder Cell And CR 20XX, 24XX Coin Cell Crimping And Disassembling

SPECIFICATIONS

TOB-CF650 is a compact hydraulic crimper for sealing all types of cylinder cases in lab R&D. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly.

Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.

Model	TOB-CF650
Driving Force	Manual hydraulic pressing up to 5T
Pressure Gauge	0-3500 psi (0-250 kg/cm2)
Body	Stainless Steel
Crimping Dies	Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
Warranty	One year limited with lifetime support
Dimensions	220mm(L) x 170mm(W) x 360mm(H)
Application Notes	1 Customized die for other cylindrical cell types is available upon request. 2 It is necessary to groove the opening end of the cylindrical case by using TOB-GC650 grooving machine before sealing the cap. 3 Each type of cylinder cell can only be sealed specifically by certain model.
Net Weight	32 kg

PRODUCT DISPLAY

Hydraulic Battery Sealing Machine

Battery Sealing Machine

Hydraulic Battery Sealer

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609
