Fully Automatic Cylindrical Cell Sealing Machine

Fully Automatic Mechanical Cylindrical Cell Sealing Machine

SPECIFICATIONS

This automatic battery sealing machine is used to realize the automatic sealing of cylindrical batteries after electrolyte filling. The machine uses the connected plate conveying line to convey the batteries. The first, second, third and pier sealing of the batteries are realized by the intermittent feeding of the material distribution device. At the same time, the height of the batteries during sealing is controlled and adjusted by the precise pneumatic pressurization mechanism to ensure the consistency of the height of the batteries after sealing. In order to ensure the production efficiency of the equipment, the equipment adopts the working mode of single station sealing machine, and the mechanical driving power mechanism is used to control the driving stamping during sealing; The sealing die adopts a four column integral die with specific and high-precision ball guide column.

Equipment action flow

Put the battery filled with electrolyte into the sealing assembly line → battery transportation → automatic material distribution by the material distribution mechanism → intermittent feeding mechanism ensures the intermittent transportation of the battery at a fixed pitch → battery positioning and clamping → automatic first sealing → automatic second sealing → automatic third sealing → pier sealing (height adjustment) → battery discharging.

Equipment technical parameters

1. Product qualification rate: 99% (only refers to product scrapping due to equipment)

2. Equipment capacity / speed: ≥ 45ppm.

3. Equipment utilization rate: ≥ 98% (fault caused by equipment only)

4. Equipment electrical: voltage 380V 50Hz, Voltage fluctuation is less than ± 10%, Equipment power: 3kw.

5. Air source requirements: ≥ 0.6MPa (provided by the customer).

6. The machine shall be designed with excellent ergonomic performance.

7. Aluminum and stainless steel or electroplating are preferred as the structural materials of the machine to prevent corrosion.

Product Display

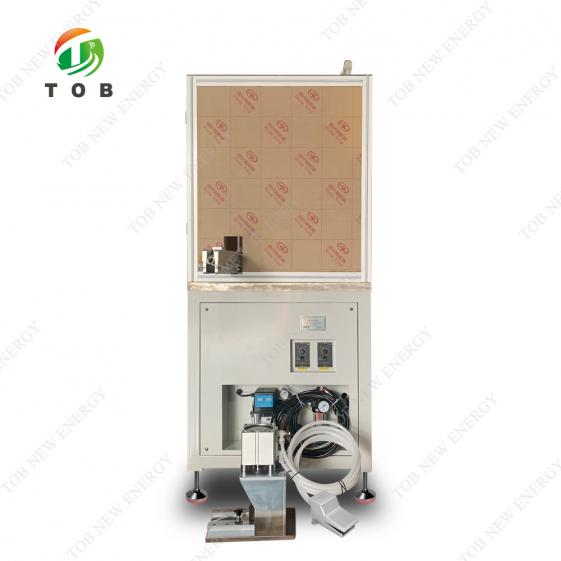

Optional (TOB-YF650-1)

If the customer does not have a drying room, a pre-sealing machine needs to be added for pre-sealing in the glove box.

More battery sealing machine for battery research and manufacturing.
