Product Name

Model

TOB-225CTT High and Low Temperature Chamber

Application & Limitation

Application

This equipment mainly used for cell, electric and electronic products,components and other materials high low temperature test,temperature change,damp heat etc.

Environment simulate reliability test.

Volume & Dimension

Effective Volume

225L

Inner Dimension

W500mm*H750mm*D600mm

Overall Dimension

W700mm*H1750mm*D1420mm(Kindly remark：exact overall dimension please refer to the final design drawing.)

4. Performance

 Condition

Environment temp.+5℃ ～+35℃,relative humidity≤85%.No load(without specimen in thetesting zone)

Temp. Range

-40℃~+150℃

Temp. Fluctuation

≤±0.5℃

Temp. Deviation

≤±2.0℃

Temp. Uniformity

≤±2.0℃

Temp. Heating Time

 Average 1℃~3℃/mins, non-linear ,no load

Temp. CoolingTime

 Average 1℃/mins, non-linear ,no load

Temp. Overshoot

≤±2℃

Max.Loading

No

Constant Max.Heating Load

 No

Noise

≤70dB（A level）

Power

380V,50Hz,three phase, 7.0KW(others can be options after confirm)

Standard

IEC60068-2-1:2007     Environmental testing - Part 2:Test methods -TestsA:Cold

Compliance

IEC60068-2-2:2007 Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat

Weight

450KG

Structure & Material

External Chamber

1.2mm cold roll steel with painting.

Internal Chamber

1.0mm SUS304# high &low temperature resistance stainless steel,

Insulation Material

100mm PU Polyurethane foam insulation material

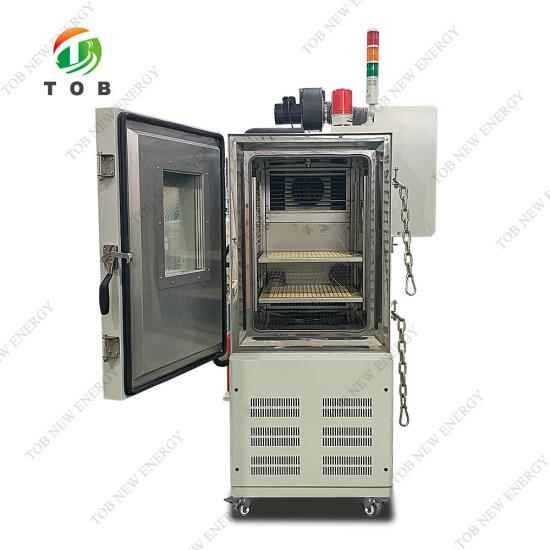

Chamber Door

Single open door

Observation Window

With vacuum glass observation window on the door ;and door frame with electric heat resistant, anti-frosting, anti-condensing    devices, ensures clear observation of the specimen under testing.

Testing Hole

Total2 pieces￠100mm testing hole on side of the chamber, with silicon seal and stainless steel cover.

Sealing

Adopt original imported silicon rubber strip, with high sealing performance.

Sample holder

Sample holder with insulation material ,2 layers,capacity 30kg/layer.

Pressure Balance

Port

Installed mechanical pressure close type balance adjustment device to avoid pressure

difference influence the test chamber strength when do high temp. test.

Lighting inside chamber

1 set of energy saving light inside the observation window .

Wheels

4 sets of universal wheels(included 2 sets of casters with self-locking function

Control Panel

Touch screen controller,Power switch,lighting,over-temp protector, Lan por or RS-485 port

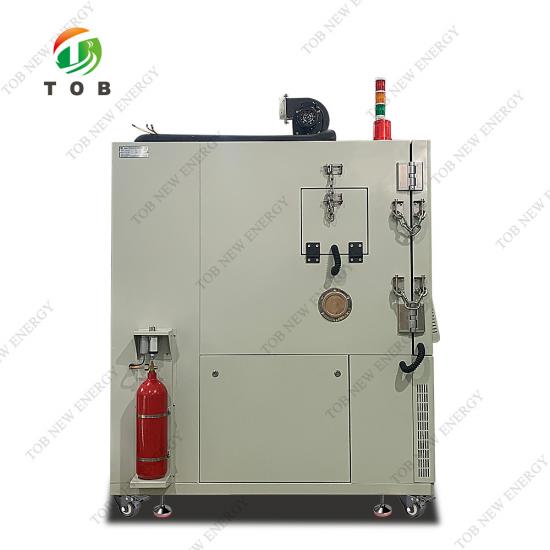

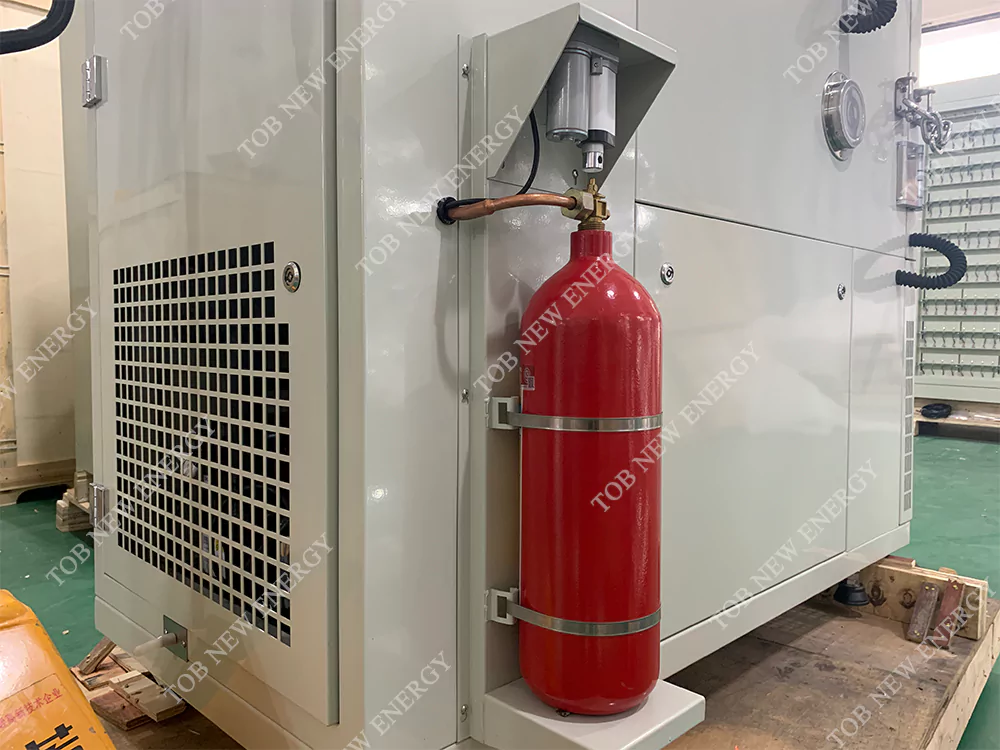

Safety Features

1 piece smoke exhaustvent.

2 pieces of Explosion proof chain on the chamber’sside. 1 set of explosion-proof pressure reliefdoor.

1 set of tri-color light alarm.

Air Supply System

Remarks

Air supply feature

From Upper to Lower air circulation.

Cyclic Motor

Taiwan Air Deviser low pressure asynchronous motor

Blower

Multi-blades centrifugal circulating blower, high low temp. resistant aluminum blades

Sensor

PT100 temperature sensor

Operating Condition

Remark

1. Environment Temp. : 5℃-35℃;

2.Relative Humidity: ≤85%RH;

3.Atmospheric Pressure：80kPa~106kPa

4. Away from strong vibration source

5.Powersource:

1. 380V AC,50Hz three phase, earthing resistance≤4Ω; Power capacity：7.0kw
2. Specimen power control connector adopt relay contact control method, （Contact closing when machine running normally, when machine under stop or fault ,contact switch power turn off ,run into protection state )
3. Frequency: 50Hz
4. Environment air quality requirement: without high density powder, easy firing, easy explosive air or powder, away from strong electromagnetic source
5. Avoid test or storage of easy firing, easy explosive, volatilization and corrosive specimens.
6. Standard specimen place requirement：
6.1 Specimen weight less than 80KG/m³
6.2 Whole specimen dimensionless than 2/5 of the chamber inner volume, each layer less the 2/5 area. Otherwise will seriously effect the chamber performance or the normal
operation.
