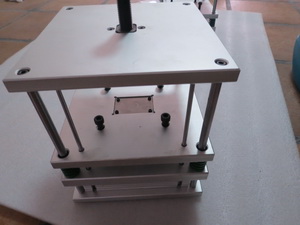

5 Layers Baking Clamp

Penetration battery nail tester for lithium battery pouch cell safety performance testing SPECIFICATIONS Model Battery Needling Testing Machine TOB-BNT-9002 Warranty One Year limited warranty with lifetime support Dimension 900*1460*500mm Weight 150kg Controller dimension 330*1040*330mm View window dimension 200*200mm, 10mm thickness Double explosion-proof glass Source voltage AC 110V/220V, 50HZ Needling mode Pneumatic  Needing force 150-200kg，±1% accuracy Max testing size 200*200*200, adjustable High temperature resistant steel needle φ3mm and φ8mm Needling height 150mm Needling speed 10-40mm/s, adjustable,  Through the perpendicular to the battery plate direction pierce the battery,  stop (1min~6hour) automatically from a battery pull, easy disassembly. Anti explosion case Bottom is provided with four universal wheels, and can move freely Exhaust fan port 15mm diameter  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Professional Battery needling and crushing machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Model Battery Needling And Crushing Machine TOB-BNCT Warranty One Year limited warranty with lifetime support Dimension 750*650*1900mm Weight 250kg Controller dimension 330*330*1040mm View window dimension 200*200mm, 10mm thickness Double explosion-proof glass Source voltage AC 380V, 50HZ Power  1500W Needling/Crushing mode Hydraulic Force range 1-15KN，±1% accuracy Plate diameter  150mm Max testing size 200*200*200, adjustable High temperature resistant steel needle φ3mm φ5mm φ8mm Needling speed 0-80mm/s, adjustable,  Delayed function 0-9999s can be set Anti explosion case Bottom is provided with four universal wheels, and can move freely Exhaust fan port 15mm diameter  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Lithium Battery Short Circuit Tester With Temperature Control Function For 0-70℃ SPECIFICATIONS Model Temperature control battery short circuit tester TOB-BSCT-TC Warranty One Year limited warranty with lifetime support Source voltage AC 220V, 50HZ Power 3000W Short-circuit tester dimension 600*800*970mm Thermostatic explosion-proof box  500*550*500mm Weight 220kg Short-circuit current 1000A  DC response time  Less than 5us Resistance  Less than 5mΩ, customized   Remote-controlled distance  7M No barrier  Temperature range  0-70℃, adjustable Temperature fluctuation ±1℃ Temperature error ±2℃ Short-circuit time 1-9999s can be set Anti explosion case Bottom is provided with four universal wheels, and can move freely  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Battery Safety Testing Equipment Li-ion Battery Extrusion Test Machine SPECIFICATIONS TOB-BET-6045Battery Crush Testing Machineis a professional battery safety testing equipment, It tests battery safety performance through extrusion test, the battery should be no fire, no explosion after extrusion. It is the indispensable testing equipment for various battery manufacturers and research institute. Model Battery Crush Testing Machine  TOB-BE-6045 Source voltage AC 380V, 50/60HZ Power 1500W Warranty One Year limited warranty with lifetime support Dimension(W*D*H) 680*570*1740mm Weight 200kg Controller dimension (W*D*H) 330*330*1040mm Max pressure 1000N-13KN, Customized   Upper pressure plate diameter 15cm Pressure error 1% Power model Hydraulic Max test space (D*W*H) 200*200*200mm View window dimension 200*200mm, 10mm thickness Double explosion-proof glass Anti explosion case Bottom is provided with four universal wheels, and can move freely Exhaust fan port 15mm diameter PACKAGE AND SHIPPING 1 Standard exported package : Internal anticollision protection, external export wooden box package 2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode 3 Responsible for the damage during shipping process, change the damage part for free 4 Supply with suitable voltage input and power plug according to customer's country requirements. SERVICES 1 We supply machines with battery technology support. 2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery. 3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line. 4 We can also supply a full set of battery technology for battery design, research and producing. We cooperated with each other, and we will do TOP OF THE BEST battery  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

50L High and Low Temperature Alternating Test Chamber For Battery SPECIFICATIONS High and low temperature test chamber is suitable for the electrical, electronics, instrumentation, automotive electronics, electronic components, materials and other products, in the high and low temperature environment adaptability under the condition of storage and use, suitable for schools, factories, military, scientific research, and other units, to detect all kinds of electronic elements in high temperature, low temperature, alternating high and low temperature environment of various performance indicators Model High and Low Temperature Alternating Test Chamber  TOB-GD4005 Working chamber size (D*W*H) 350mm*360mm*400mm Dimension (D*W*H) 890mm*890mm*1610mm Temperature range -40℃-150℃ Temperature fluctuations ±0.5℃ Temperature uniformity ≤±2℃ Heating up time 3-5℃/min Cooling time 0.7-1℃/min Power 3.8kw Voltage AC110V/220V with grounding protect Advantages 1 Screen simple operation, easy to edit program, no key presses. 2 With 99 groups, 24 section, 99cycles of program capacity,  each step with time setting up to 99 hours and 59 minutes. 3 Heating, cooling and totally independent, can improve the efficiency and reduce the test cost,  increase longevity, reduce the failure rate  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Battery Nailing Needling and Crushing Testing Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Model Battery Nailing Needling And Crushing Machine TOB-BE-6048 Testing space W200*H200*D200mm Testing box dimension W1480*D720*H2040mm Controller dimension W500*D500*H1200m Source voltage AC 380V, 50HZ Power 2000W Weight About 450kg Falling Ball weight 9.1kg、10kg Falling Ball height 610~1000mm(Digital can be set) Bar Diameter 15.8mm or 7.9mm（can choose） Power test model Electric、Free fall Pressure range 1KN~15KN(Standard is 13KN) Upper platen diameter 150mm（no less than 20cm2） Power error range 1%Up and down Needing speed 10~150mm/s（stay speed can be control） High temperature needle Diameter Delay function 0~9999second  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Battery Heavy Impact Testing Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Model Battery Heavy Impact Testing Machine TOB-BE-5066 Testing space W200*H200*D200mm Testing box dimension W720*D780*H1870mm Controller dimension W330*D330*H1040m Source voltage AC 220V, 50HZ Power 500W Weight About 150kg Falling Ball weight 9.1kg、10kg Falling Ball height 610~1000mm(Digital can be set) Bar Diameter 15.8mm or 7.9mm（can choose） Power test model Electric、Free fall  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Small Battery Dropping Test Machine For Lithium Battery Safety Performance Testing SPECIFICATIONS Type  TOB-BE-F-315S TOB-BE-F-320S Drop height 300~1500mm Adjustable 300~2000mm Adjustable Dimension W700*D900*H1760mm W700*D900*H2260mm Weight About 90kg About 110kg Max battery weight    2kg±100g Max battery size    L150*W200 Drop height Ruler Material    Stainless steel ruler，Min scale:1mm Drop plate material    Steel plate(Hard wood/Marble slab/Acrylic sheet/Cement board optional) Dropping way    Pneumatic Drop Up and down way    Electric lift Power supply    AC220V 50HZ Power     0.5KW Air pressure    <2MPa  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
