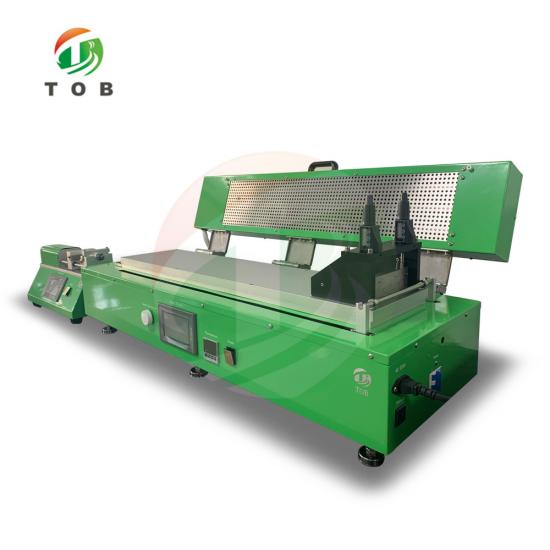

Custom Lab Desktop Coater Slot Die Coating Machine for Battery Electrode Coating

800mm Length Custom Lab Desktop Coater Slot Die Coating Machine for Battery Electrode Coating

Specification

Adopt slot die coating method (the coating process such as scraper coating, four-side coating device and wire rod coating can be selected). Mainly used for sheet type material surface coating of lithium battery substrate coating, solar photovoltaic film and polymer conductive film, OLED and other fields.

* Strong wind circulation drying heating, digital display temperature control, maximum working temperature 130℃；

* Digital display timer, freely set drying time；

* Coating speed can be adjusted within the range of 0 ～ 120mm / s；

* Vacuum aluminum pan for quick placement or removal of substrates；

* The stroke can be adjusted by the stroke switch between 0 ～ 800mm；

* Squeegee with adjustable coating thickness (0.01mm accuracy)；

* Small size could saves space；

* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful；

How to use ?

*Put the Al/Cu foil on the vacuum plate, power on, turn on the vacuum, Al/Cu foil adsorbed on the vacuum plate;

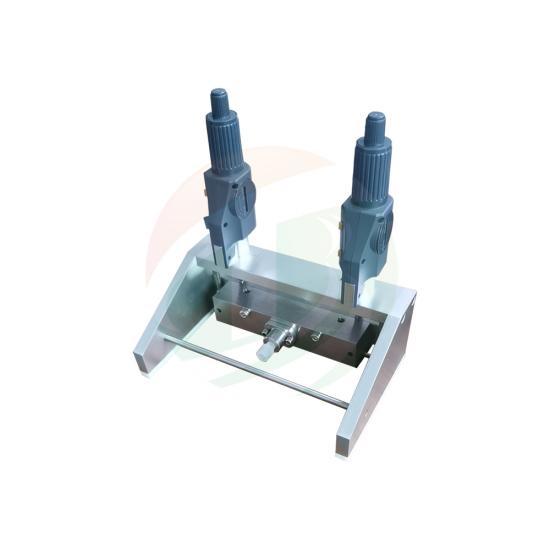

*Place the film applicator on the Al/Cu foil;

*Start coating, the push rod automatically pushes the film applicator to move and automatically coat the film;

*Take out the film applicator and push rod, cover the heating cover, set the heating temperature and time, and conduct heating and drying;

*After drying, open the heating cover, take out the electrode after coating, then reset the film applicator.

PRODUCT DISPLAY
