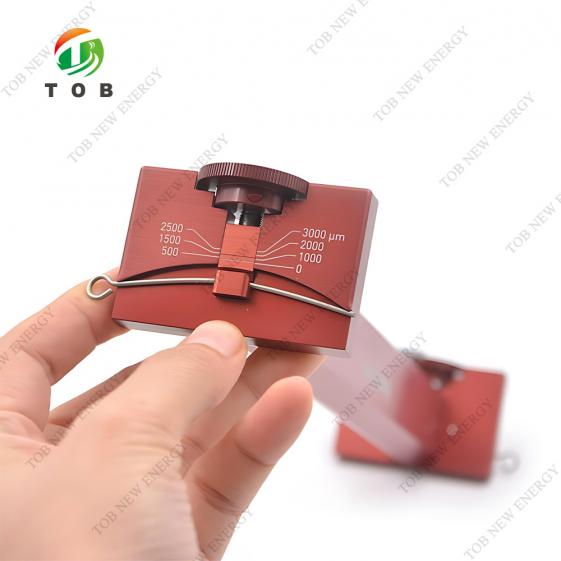

Adjustable Wet Film Applicator

TOB-ZUA2000 This adjustable film applicator is used for wet film coating, with coating range 0-3000um, minimum scale 5um, coating width 100mm, 150mm, 200mm, 220mm can be chosen, Adopt anodized aluminum alloy material, with accuracy ±10um.

item no.:
TOB-ZUA2000
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Adjustable Wet Film Applicator

Specifications

This TOB-ZUA2000 series adjustable film applicator is used for wet film coating, with coating range 0-3000um, minimum scale 5um, coating width 100mm, 150mm, 200mm, 220mm can be chosen, Adopt anodized aluminum alloy material, with accuracy ±10um.

Advantages:

1 Disassemble and easy to clean.

2 Aluminum alloy anode treatment, no decolorization, acid and alkali resistance, corrosion resistance.

3 Coating thickness adjustable.

Model	ZUA2000.100	ZUA2000.150	ZUA2000.200	ZUA2000.220
Type	Adjustable
Coating Thickness	0-3000um
Coating width	100mm	150mm	200mm	220mm
Division value	5um
Accuracy	±10um
Standard	ASTM D1640, ISO 11998
Net weight	229-479g
Materials	Anodized aluminum alloy

PRODUCT DISPLAY

Adjustable Wet Film Applicator

Adjustable Film Applicator

Email: tob.amy@tobmachine.com

Skype: amywangbest86

Whatsapp/Phone number: +86 181 2071 5609

We also supply other models of Film Applicator and Lab Coater for battery research and manufacturing.
