battery machine and materials solution
Products

Hot Products


Film Coating Device Manufacturers
加载中...

Film Coating Device For Coin Cell Battery Electrode

TOB-ZBQ The Manufacturers Film Coating Device Use For Coin Cell Battery Electrode Coating.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-ZBQ
  • order(moq):

    1
  • Payment:

    L/C,T/T,Western Union
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7
Product Detail
Simple Coating Device For Coin Cell Electrode Making With Four Thicknes

 Specifications



1.Multi slotcoating deviceis designed for use in the substrate flat top uniform coating of paint, adhesive and similar products.
2.Multi slot coatingis the diversity of choice and the fixed groove evaporator precision combined in one instrument. Applicable to water, acid and alkaline products.



Material : Stainless steel abrasion resistant material

Coating width : 80mm, Total width : 100mm


NO/1:(5μm,10μm,15μm,20μm)
NO/2:(25μm,50μm,75μm,100μm)
NO/3:(50μm,100μm,150μm,200μm)
NO/4:(30μm,60μm,90μm,120μm)
NO/5:(100μm, 200μm,300μm,400μm)
NO/6:(50μm, 75μm,100μm,150μm)
NO/7:(100μm, 150μm,200μm,250μm)
NO/8:(250μm, 500μm,750μm,1000μm)

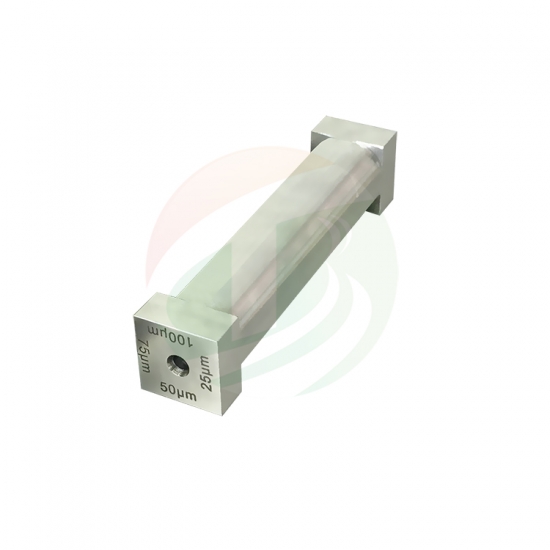

PRODUCT DISPLAY



coater for coin cell battery



PACKAGE AND SHIPPING

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.


SERVICES

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
