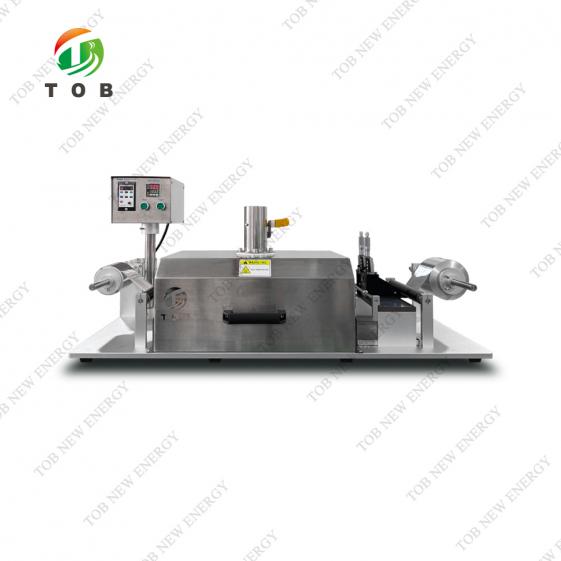

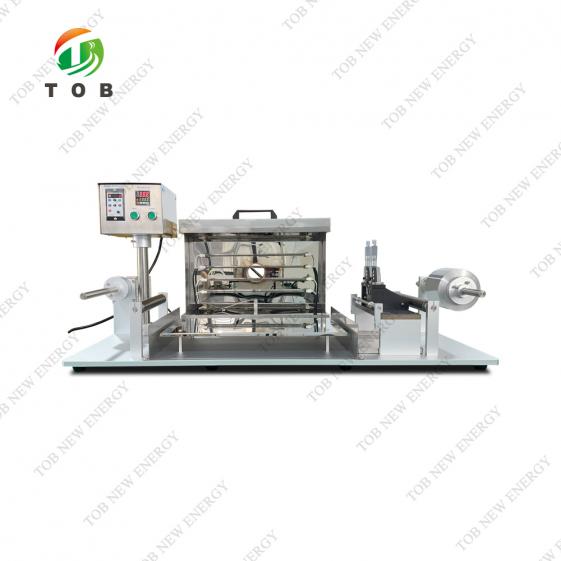

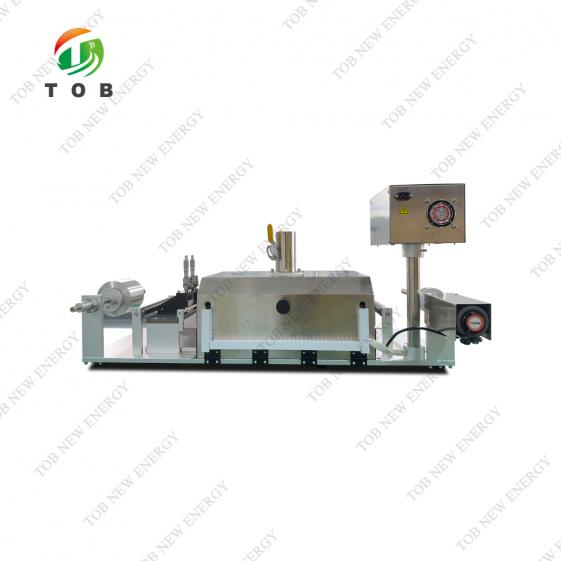

Battery Electrode Continuous Scraper Coating Machine

This TOB-TBJ-150C Battery Electrode Continuous Scraper Coating Machine can be used for continuous coating proofing or small-scale production experiments. This coating machine is dedicated to the continuous coating process of positive and negative electrodes of lithium-ion batteries. It is suitable for small-scale lab in colleges and universities and enterprises. It can also be used for ceramic films, crystal films, special nano films, etc. The machine body is made entirely of stainless steel, which is beautiful, durable, and easy to operate.

Brand:
TOB NEW ENERGY
item no.:
TOB-TBJ-150C
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Battery Electrode Continuous Scraper Coating Machine

SPECIFICATIONS

This Battery Electrode Continuous Scraper Coating Machine can be used for continuous coating proofing or small-scale production experiments. This coating machine is dedicated to the continuous coating process of positive and negative electrodes of lithium-ion batteries. It is suitable for small-scale lab in colleges and universities and enterprises. It can also be used for ceramic films, crystal films, special nano films, etc. The machine body is made entirely of stainless steel, which is beautiful, durable, and easy to operate.

Standard configuration:

Equipped with film applicator, width 150mm (film width can be selected according to customer requirements)

Features

The whole coating machine is assembled with high-precision modular coating station structure.

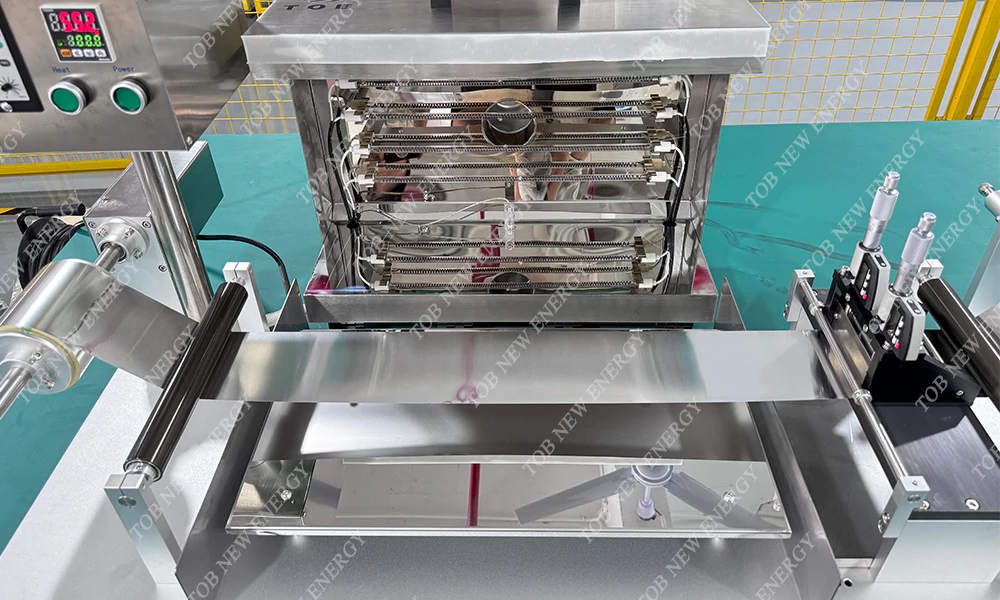

The heating cover digital display temperature controller has independent high-precision PID temperature control mode, and the heating tube is infrared heating, which effectively ensures the uniformity of material drying.
Control the coating thickness by precisely fine-tuning the coating gap of the upper scraper.
The coating width is adjusted by two baffles in the slot. Automatic winding. (The coating width can be customized by the customer).

Model	TOB-TBJ-150C
Coating width	50～220mm(Customizable)
Standard film applicator	100mm
Adjustable range of scraper thickness	0～3mm
Oven length	550mm
Mechanical running speed	500mm/min
Maximum operating temperature	150℃
Voltage	220V/50Hz
Power	2KW
Weight	70KG
Size	L1200mm×W600mm×H580mm

Maintenance methods and precautions
1. Before each work, use a soft cloth with alcohol to carefully wipe the coating head and the body to keep it clean.
2. Do not collide with the coating head, differentiator and other high-precision parts, handle with care, and adjust the differentiator symmetrically and evenly on the left and right.
3. Regularly check the screws, nuts, pins and other fasteners in various parts to prevent loosening and prevent product quality accidents.

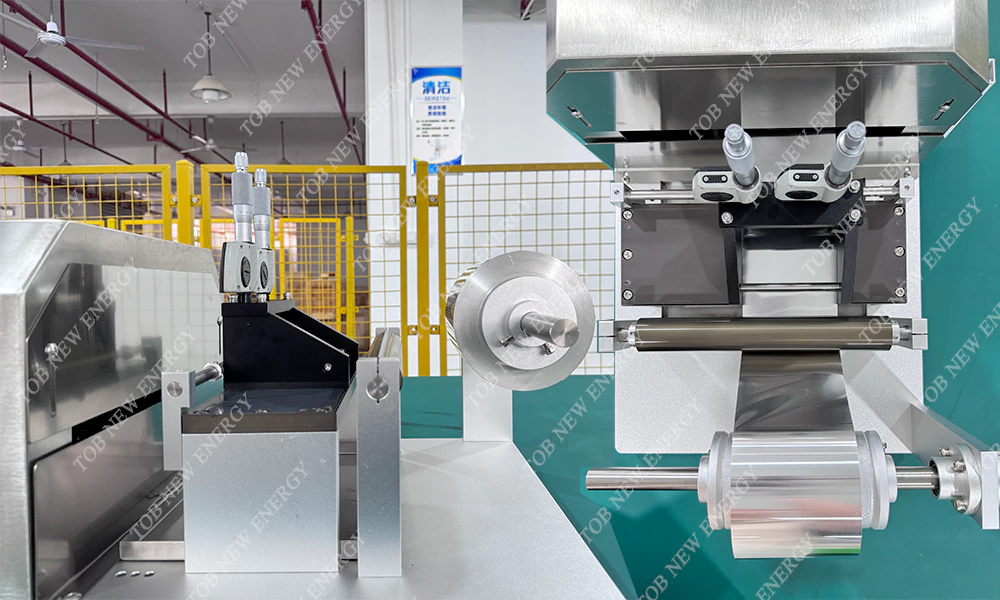

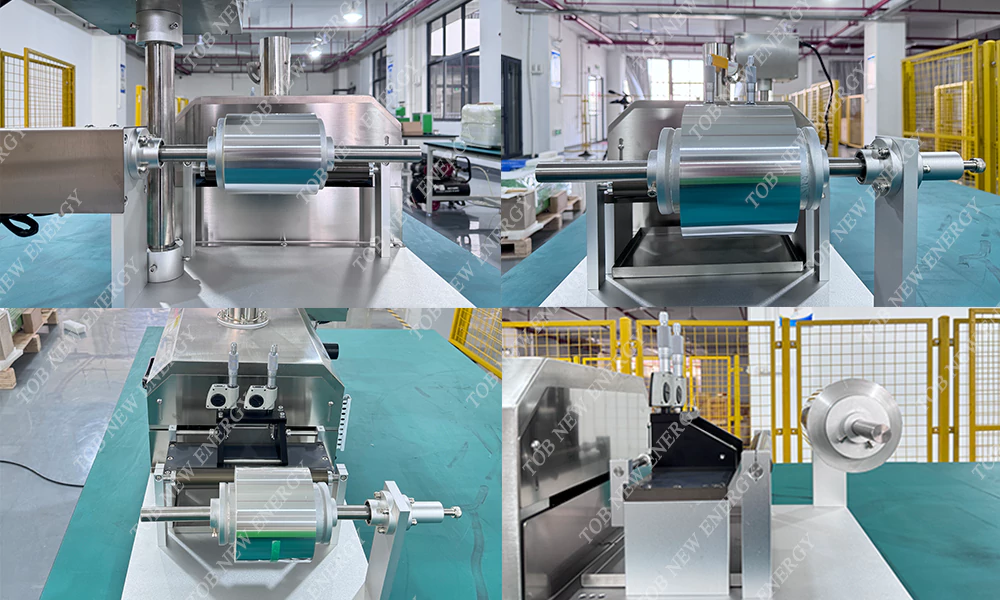

PRODUCT DISPLAY

Battery Electrode Coating Machine
