XIAMENAuto Top and Side Sealing Machine For Pouch Cell
SPECIFICATIONS
Equipment function description
This TOB-TTS-L350 auto top and side sealing machine is suitable for the top sealing and side sealing process for pouch cell. It is suitable for the preparation of same side tab pouch cell and opposite tab pouch cell.
Process flow
Manually put the formed aluminum laminated film into the clamp for positioning, put the cell into the aluminum laminated film shell, fixture clamping plate, the servo drives the fixture and transports the cell to the double top sealing position, the cylinder moves down and completes the double top sealing (Or one top sealing) at the same time, the servo continues to transport the fixture to the side sealing position, completes one side of the side sealing work, the fixture automatically returns to the material placement position, manual discharge material; the cycle repeats.
Equipment layout
Basic parameters
| Power supply | AC220V/50Hz; Power: 6.8KW |
| Compressed air | ≥0.6MPa 15L/min (user-provided) |
| Equipment weight | About 400 kg |
| Overall dimensions | LxWxH (to be determined) |
| Painting colour | International warm gray 1C or customized |
Technical parameters
| Applicable specifications | Top seal 50-320mm (including air bag position), side seal 100-250mm (tab height less than 50MM) |
| Sealing head length | Top seal ≥320MM, side seal: ≥250MM |
| Seal width | Top seal 8mm side seal 10mm (seal size, can be customized according to the user to provide acceptance blueprint) |
| Sealing head temperature | Adjustable from room temperature to 260℃, compensation can be set, control accuracy ±2℃ |
| Sealing head parallelism | Use triple carbon free copying paper, with a sealing head pressure of 0.4-0.6Mpa and a temperature of 180 ℃, to press the seal evenly |
| Encapsulation time | 0-99.9 seconds (adjustable) |
| Sealing thickness | ±0.02mm |
| Equipment capacity | 4PPM |

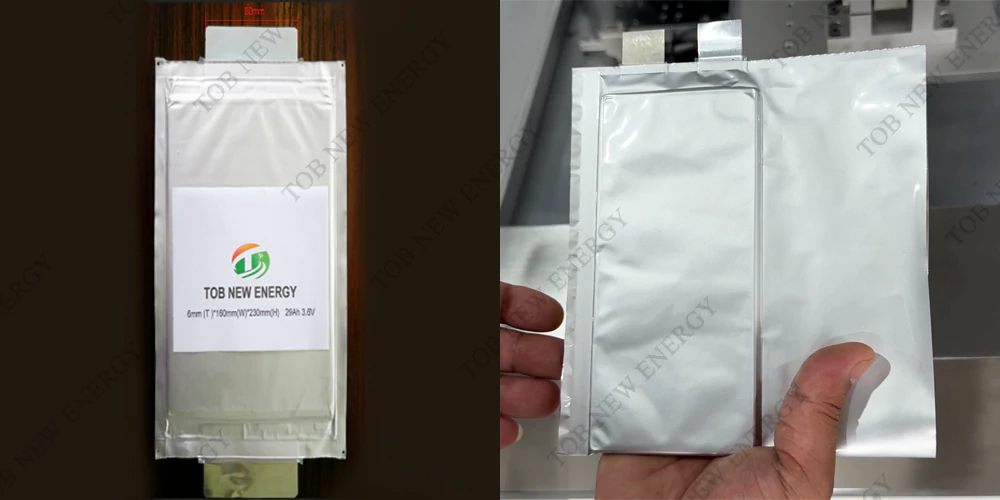

PRODUCT DISPLAY
