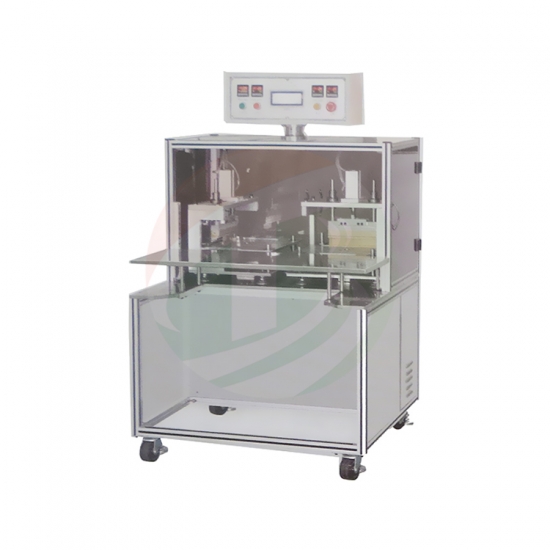

Two Station Top-side Sealing Machine For Pouch Cell

Brand:
TOB NEW ENERGY
item no.:
TOB-MY-06-200-2
order(moq):
1set
Payment:
L/C,T/T,Western Union, Paypal
product origin:
China
shipping port:
XIAMEN
Lead Time:
30days

inquiry now

Product Detail

200mm Sealing Head Lithium Battery Aluminum Film Cup Top-side Sealing

SPECIFICATIONS

1.TOB-MY-06-200-2 Two station sealing machine is used for lithium polymer battery pouch top and side heat sealing before electrolyte filled.

2.Can pre-set sealing temperature and sealing time.

3.Temperature lower and higher alarm function.

4.Without battery missing sealing or repeat sealing.

5.With light curtain safety protection and back door switch protection.

6.With our-put statistics function.

7.Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.

Working process:

Polymer Battery into fixture, Battery feeding-top sealing position-side sealing position-battery discharge, Finish battery top and side heat seal.

Model	TOB-MY-06-200-2
Type	Two work station
Source voltage	AC 110V/220V, 50/60HZ
Power	1200W
Warranty	One year limited warranty with lifetime support
Air compression	≥0.6MPa
Size (LWH)	5406401450mm
Sealing head length	200mm
Suitable battery size	≤1801208mm
Sealing stamp width	2-10mm, Top sealing : 4mm, Side sealing : 6mm (customized)
Sealing thickness	0.19-0.3mm
Sealing temperature	RT-260℃ adjustable, Accuracy ±3°
Sealing time	0-99.9s, adjustable
Feed accuracy	±0.05mm
Output	400-600 Times/H
Shelter height	4mm, Sealing battery thickness : 2-10mm
