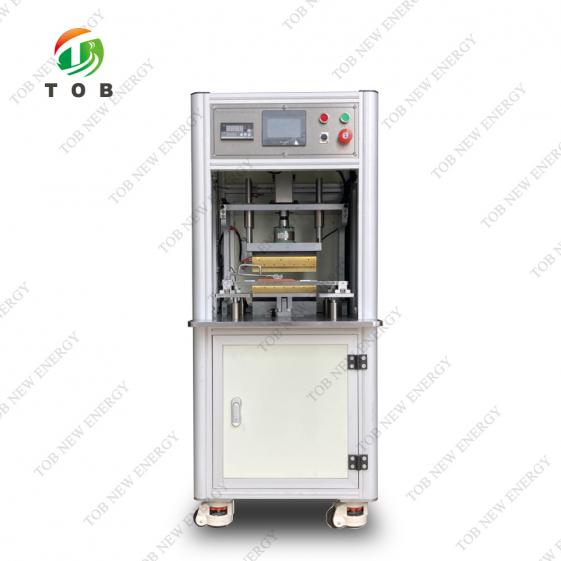

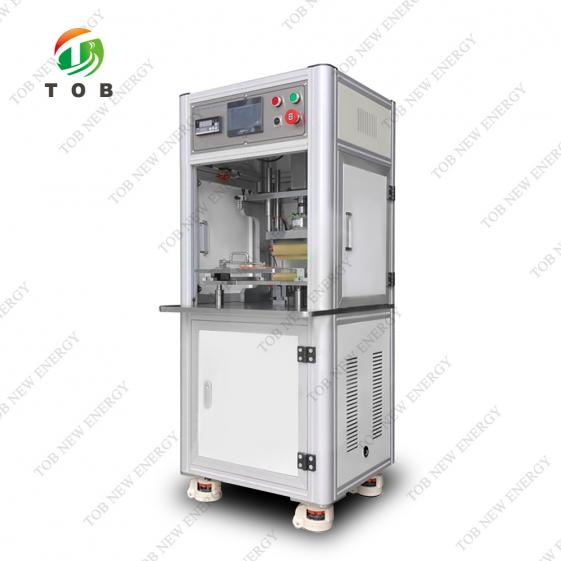

Servo Model Pouch Cell Top and Side Sealer Battery Heat Sealing Machine

This servo model pouch cell top and side battery heat sealer is suitable for polymer pouch cell top and side sealing process.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-SDF-200
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Servo Model Pouch Cell Top and Side Sealer Battery Heat Sealing Machine


Specifications


1.Equipment introduction
This machine is suitable for polymer pouch cell top and side sealing process.
1.1. Equipment function and principle
The equipment is a single-station top-sealing/side-sealing machine, manual loading, the battery is placed on the champer, the pressure plate is manually lifted to press the battery, and the battery is manually sent to the sealing station. After the clamper is in place, the cylinder controls the clamper to sink, Server drive the upper seal to press down to complete the sealing; manually pull the clamp back to the original position and manually loosen the clamp pressure plate to take out the battery and put in the next battery; repeat the operation.
1.2. Featured function introduction
This machine can be set through the touch screen: pressure, temperature, packaging time and other data, and can upload the data to the U disk through the USB port on the panel;It can more accurately give the most suitable pressure, temperature and sealing time for the aluminum-laminate film sealing.


2.Basic design requirements of equipment:

2.1. Output:≥1PPM;

2.2. The equipment size:Length*Width*Height L570*W550*H1320mm(Subject to actual size);

2.3. Equipment weight:about 150kg;

2.4. Equipment electrical

a. Power supply:AC220V±10%/50Hz,Total power 2.5KW(The actual design shall prevail);

b. Air supply:0.5~0.7Mpa,100L/min;


3.Equipment technical parameters

No

Name

Specification

1.

Applicable package battery range

Length≤200mm,Width≤200mm (Size including air bag ),battery thickness 5-25mm

2.

Sealing width

5mm(Customized according to customer requirements)

3.

Sealing head parallelism

≤0.02mm

4.

Heating tube power

Single tube 800W

5.

Temperature control accuracy

 RT-300℃ ,With accuracy ±3℃

6.

Sealing pressure

Adjustable 5-250kg on touch screen

7.

Sealing time

Adjustable 0-99″on touch screen

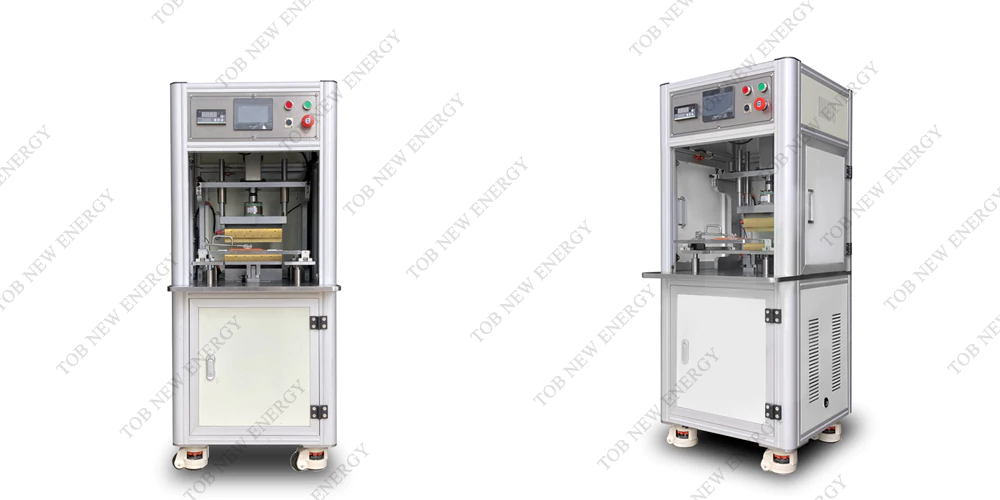

PRODUCT DISPLAY


Battery Heat Sealing Machine

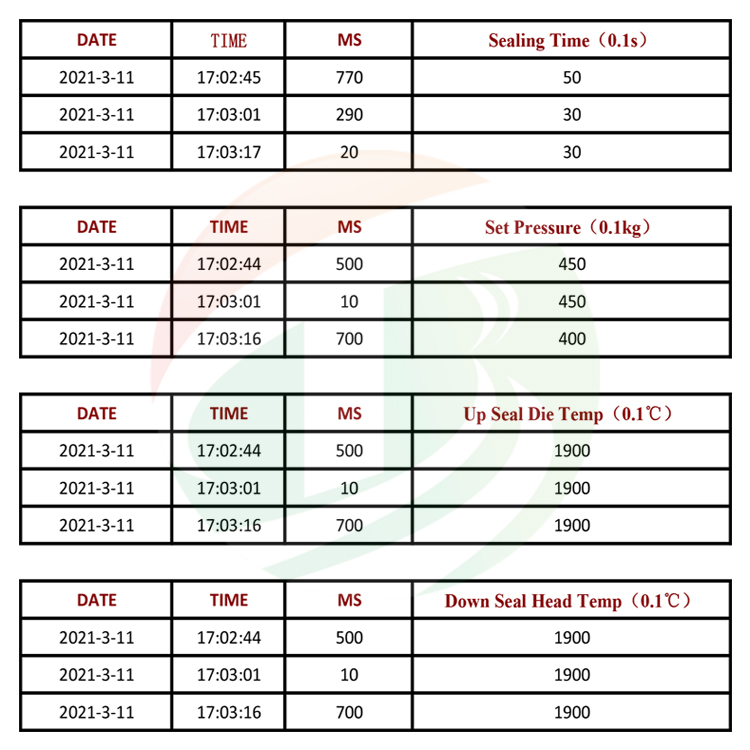

U disk data display:



Battery Heat Sealing Machine
