8000W Battery Ultrasonic Welding Machine For Electrode Sheets 10-120 Layers

8000W Ultrasonic Metal Battery Welding Machine For Electrode Sheets 10-120 Layers
  • item no.:

    TOB-USW-8000W
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

8000W Battery Welding Machine For Electrode Sheets 10-120 Layers


SPECIFICATIONS


The circuit adopts international advanced full-bridge voltage regulator circuit and is optimized to achieve constant amplitude output and automatic frequency tracking without manual adjustment. Adopt intelligent control mode, covering modes such as time, energy, power, energy and depth.


Model

TOB-USW-8000W

Power

8000W

Frequency

20KHZ

Power supply

220V/ 50Hz

Gas supply

≥0.5MPa

Control method

CPU

Maximum stroke

20 mm

Welding time

0.05~9S

Main components

1. Ceramic sheet: German imported black film

2. Aluminum rod: American Aluminum Corporation

3. Welding head: powder alloy









Welding ability

①10~120 layer aluminum foil + 0.2-0.6mm pure aluminum tab welding,

welding spot4*6 /4*8 /4*10mm /5*30mm

②10~120 layer copper foil + 0.2-0.6mm nickel or copper nickel platedtab welding,

welding spot4*6 /4*8 /4*10mm /5*30mm

③0.2-0.6mm nickel or nickel-plated coppertab,can weld with 10~90 layers of copper foil,

welding spot4*6 /4*8 /4*10mm

④0.2-0.6mm aluminum tab, can weld with 10~90 layers of aluminum foil,

welding spot4*6、4*8、4*10mm

⑤0.2-0.6mm aluminum tab or nickel tab 2~12 layers welding, welding spot4*6mm

⑥0.2-0.6mm aluminum strip and2.0mm aluminum plate welding



PRODUCT DISPLAY







Weld head area can be customized according to customer's requirements

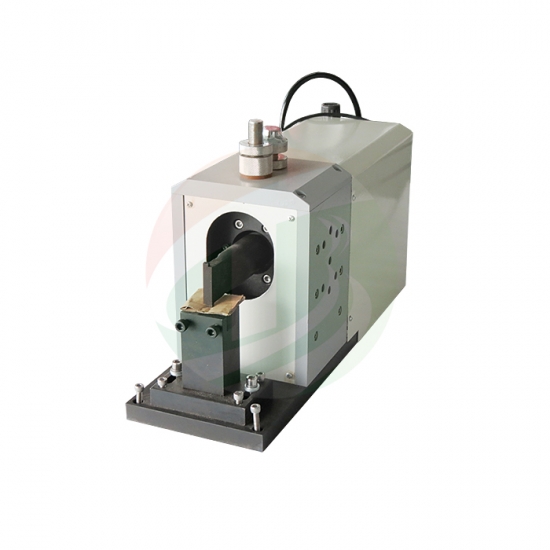

Ultrasonic spot welding machine weld area

Ni Tab welding with Multi-layers copper foil and Al Tab welding with multi-layers aluminum foil

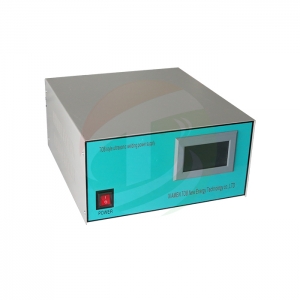

Touch-screen controller with setting parameters

Welding machine touch-screen
