Ultrasonic Spot Welding Machine For Al Tab And Aluminum Foil Welding

TOB-VS-25 Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.
  • item no.:

    TOB-VS-25
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

DeskTop Ultrasonic Spot Welding Machine For Al Tab And Aluminum Foil Welding


SPECIFICATIONS



1 TOB-VS-25Ultrasonic Spot Welding Machineis an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.

2 TOB-VS-25  Ultrasonic welding machine is with semi-auto frequency tracking function, you don’t need to setting frequency always, simple operation.


Model

TOB-VS-25

Source voltage

AC220V, 50HZ, can be customized

Power

1500W

Warranty

One Year limited warranty with lifetime support

Type

Ultrasonic spot welding machine

Frequency

25KHZ

 Welding time

0.05-9.99s

Air supply

0.2-0.8MPa

Welding effect

Single layer of aluminum foil and aluminum strip welding ,aluminum foil and aluminum belt melt, welding firmly

Welding ability

 1 Materials : Battery cathode electrode. (single layer aluminum foil and single piece aluminum strip)

 2 Aluminum foil thickness : 10-20um

 3 Aluminum strip thickness : 0.08-0.12mm

 4 Welding mode : according to your requirements

 5 Welding area : can be customized

Dimension (L*W*H)

Power box : 400*170*300mm

Welding machine : 300*200*270mm


PRODUCT DISPLAY

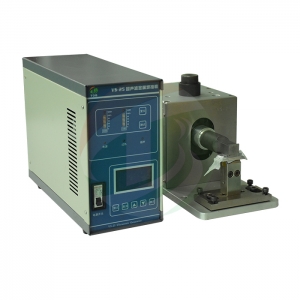

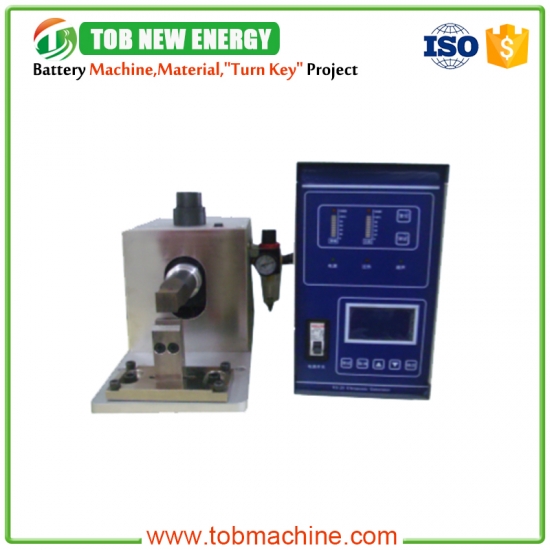

Ultrasonic Welding Machine

Ultrasonic Metal Welder


18650 battery weling head

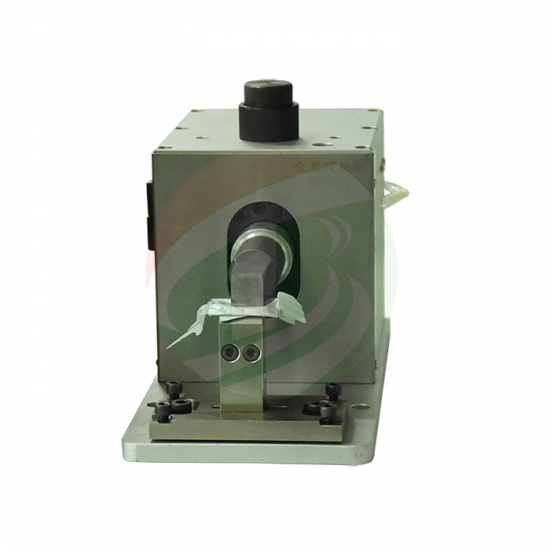

ultrasonic welding machine head
