battery machine and materials solution
Products

Hot Products


Vacuum Degassing Oven
加载中...

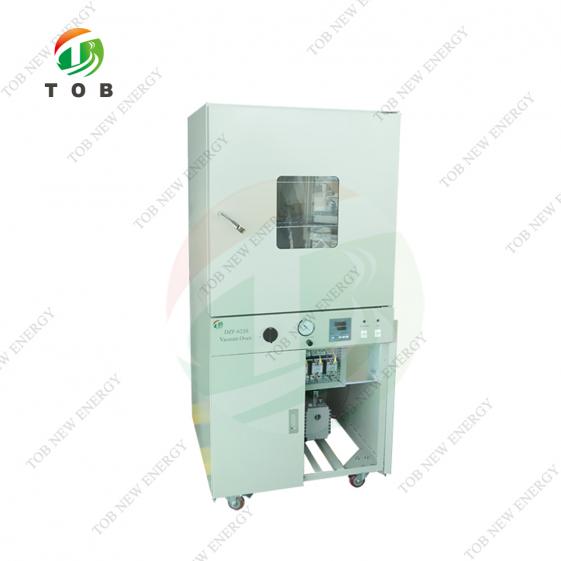

200L Vacuum Degassing Oven

TOB-DZF-6210 vacuum degassing oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying for production line.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-DZF-6210
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    30days
Product Detail
7.5 Cu feet Vacuum Degassing Oven With Vacuum Pump For Lithium Battery Electrode Drying


SPECIFICATIONS


1 The TOB-DZF-6210  Vacuum Degassing Oven is a larger volume designed vacuum oven for industrial use. It has a capacity of 200 litres about 7.5 cubic feet volume.

2 The TOB-DZF-6210 Vacuum Degassing Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying For production line.

3 Use Vacuum Oven for material heating drying under vacuum states has advantages :

   3.1 Can reduce the drying temperature

   3.2 Avoid some objects heating to oxidation

   3.3 Avoid heating air to kill living cells

   3.4 No dust damage


Model

 Vacuum Degassing Oven TOB-DZF-6210

Source voltage

110V/AC  or  220V/AC +/-10% selectable

Power

4500W

Warranty

One Year Limited Manufacture Warranty with Life Time Support

Temperature range

RT+10-250℃

Temperature fluctuation

±0.5℃

Vacuum degree

-0.1MPa, with Medical vacuum gauge pointer type

Inner box size(W*D*H)

560*640*600mm

Dimension(L*W*H)

720*820*1750mm

Temperature controller

1 High precision microcomputer temperature controller, accurate temperature control

2 Working temperature can be set and working time can be set for 0-9999min.

3 When time reach, sound alarm, and when any error, also alarm. function

Heating mode

Peripheral radiant heating.Electric heating tube is located in the tank

of the lateral walls, close to the tank

Inner box material

304 stainless steel

Outside shell material

High quality cold-rolled steel plate electrostatic spray

Box door

Toughened hulletproof double glass door

Safety device

With over temperature protection, grounding etc

Shelf

3pcs stainless steel mesh shelves

Vacuum pump

2XZ-4 Rotary vane vacuum pump, Vacuum flow 4L/S in bottom

Product display


vucuum oven

lab drying oven


Packing


vacuum oven


 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
