150℃ Double Drum Round Vacuum Oven

Brand:
TOB NEW ENERGY
item no.:
TOB-ZKHX-AR2
order(moq):
1
Payment:
L/C,T/T,Western Union
product origin:
China
shipping port:
XIAMEN
Lead Time:
30days

inquiry now

Product Detail

150℃ Double Drum Round Vacuum Oven For Roller Battery Electrode Baking

SPECIFICATIONS

TheRound Vacuum Ovenis dedicated to theLi ion battery electrode dryingprocesses for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 400 kg.

The TOB-ZKHX-AR2Round vacuum ovenis equipped with two drums, you can also choose single drum, three drum or four drum according the battery production line output.

Model	Double Drum Round Vacuum Oven TOB-ZKHX-AR2
Working Voltage	AC110V/220V, 50/60HZ
Max. Power Consumption	4.5KW*2
Temperature range	RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃
Vacuum degree	-98Kpa, Can maintain limited vacuum degree up to 24hours
Working chamber size	Dia 450*700, can customized according request
Product Dimensions (HWD)	100021001100mm
Warranty	One year limited warranty with lifetime support

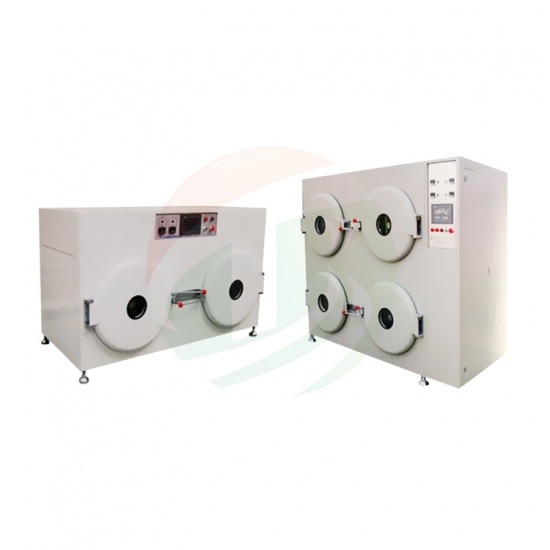

Product Display

vucuum oven

Email : tob.amy@tobmachine.com

Skype : amywangbest86

Whatsapp/Phone number : +86 181 2071 5609
