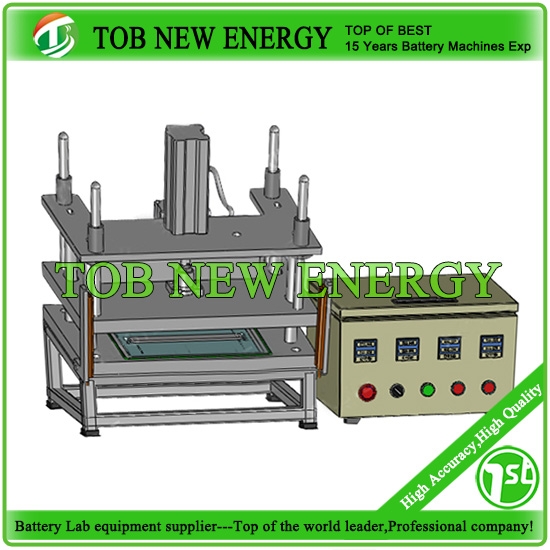

Vacuum pre-sealing machine

Vacuum pre-sealing machine
  • item no.:

    TOB-YXY-VPS
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Vacuum pre-sealing machine


SPECIFICATIONS


The main technical features

1. This device is suitable for(small size)lithium batteries liquid injection,standing,previously evacuated and hot sealing operations.

2. The device is provided with a vacuum chamber,when working the chamber vacuum up to -90KPa,to ensure the air in batteries discharge clean;

3. Device copper head equipped with a thermocouple and temperature control module to ensure that the package temperature constant, good quality packaging;

4. The device is provided with safety grating protection to ensure the safety operation.

5.Process:Device has upper and lower cavity forming a closed working space,after battery in it,made the body vacuum state up to -90 ~ -60kpa,to ensure the air in batteries discharge clean,then sealing by head conduction effect .The equipment specifications.


Head length

350mm(Customized according to customer requirements)

Head width

2~10mm(Customized according to customer requirements)

Sealing edge thickness

0.19~ 0.3mm

Power configuration

AC220V / 50Hz, power 1.5KW

Compressed air

0.6MPa, 5L/min

The vacuum source

-0.095MPa, 50L / min

Weight

about 100kg

The device dimensions (LxWxH)

 550 * 450 * 500mm

Production capacity

100 ~ 350EA/H (depending on the workers operating proficiency,

small battery simultaneously encapsulate multiple


PRODUCT DISPLAY


Vacuum pre-sealing machine
