Small Size Battery Heat Sealing Machine For Glove Box

Brand:
TOB NEW ENERGY
item no.:
TOB-SFZ-200-S
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

Small Size Battery Heat Sealing Machine for Top-side Sealing in Glove Box

SPECIFICATIONS

1 TOB-SFZ-200-S Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

2 The battery heat sealing machine adopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.

3 It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.

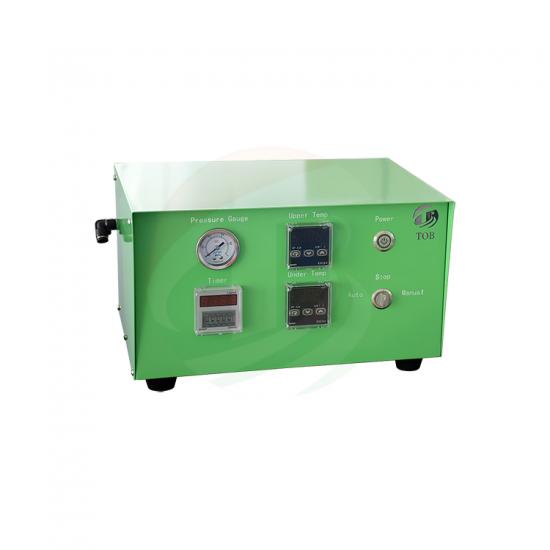

4 The controller and working device separate design make the sealing part with small size, suitable for use in glove box with pure Li.

Model	Battery Heat Sealing Machine TOB-SFZ-200
Voltage supply	110/220V 50/60Hz Single Phase
Power	800W
Warranty	One Year limited warranty with lifetime support
Compressed air	≥ 5kg/cm2
Suitable battery size	Top sealing ≤180mm, Side sealing ≤180mm
Sealing head length	200mm, Customized
Sealing thickness	0.17-0.3mm
Sealing stamp width	6mm (Can be customized upon request without extra charger)
Sealing pressure	0.5- 0.7 MPa (0 - 99 psi) adjustable
Sealing temperature	RT-250℃, adjustable with controlling accuracy +/-2 °C
Sealing time	0-99s adjustable
Sealing blade type	Soft sealing blade (Copper sealing blade with aluminum and Silicone rubber piece, good for Al film case sealing and case with tab in between, suitable for both top sealing and side sealing)
Dimension(LWH)	Working : 315150290mm Controller : 320240220mm
Weight	40kg

PRODUCT DISPLAY

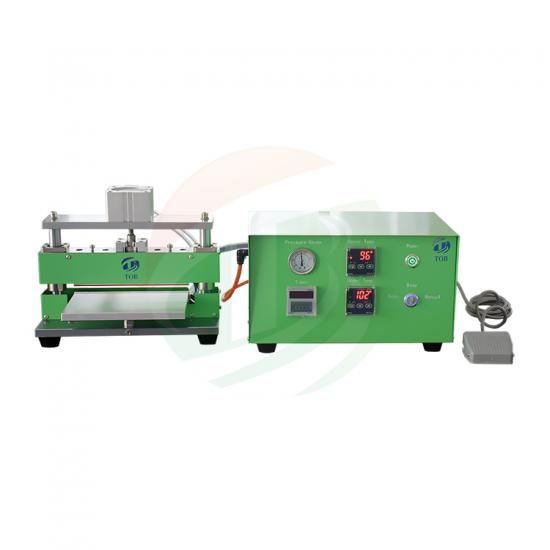

Battery Heat Sealing Machine

Heat sealing machine
