Solid State Battery Electrode Die Cutting Machine

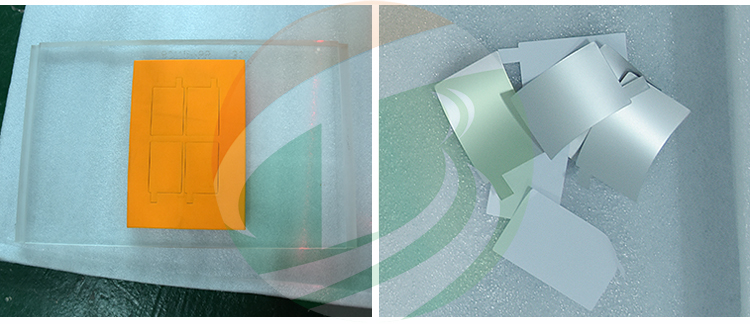

TOB-MQ300 semi-automatic electrode die cutting machine is mainly used for solid state battery electrode sheet cutting for stacking process.

Brand:
TOB NEW ENERGY
item no.:
TOB-MQ300
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Solid State Battery Electrode Die Cutting Machine

Specifications

1 TOB-MQ300 semi-automatic electrode die cutter is mainly used for solid state battery electrode sheet cut for stacking process. It is a necessary tool in the production line of solid state battery to produce specific shapes of cathodes and anodes with current collector tabs.

2 This Semi Automatic Die Cutting machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

3 High speed, high accuracy,long lifetime to make cutted electrode without burr, to get a good consistency.

4 This model has max die dimension with 200*300mm, if need other models, please choose the TOB-JD-500model with max die size up to 500*500mm.

Model	Solid State Battery Electrode Die Cutter Machine TOB-MQ300
Work voltage	AC110V/220V, 50/60HZ
Power	100W
Warranty	One year limited warranty with lifetime support
Max cutter die size	200*300mm
Die Set Dimensions	One set of standard electrode die is included.within the dimensions: 200*300mm Customized size die is available upon request
Safety Protection	Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button
Cutting Accuracy	±0.1mm
Air Cylinder	3 tons Max. pressure
Tensile Cylinder	0.15 tons pressure
Cutting stroke	250mm
Feeding	Manually
Production Yield	800 - 2000 pieces of electrodes per hour
Air Pressure	0.5-0.8Mpa
Dimension (LWH)	580455 900mm
Net Weight	120kg (265 lbs)
Shipping Dimensions	4775109cm

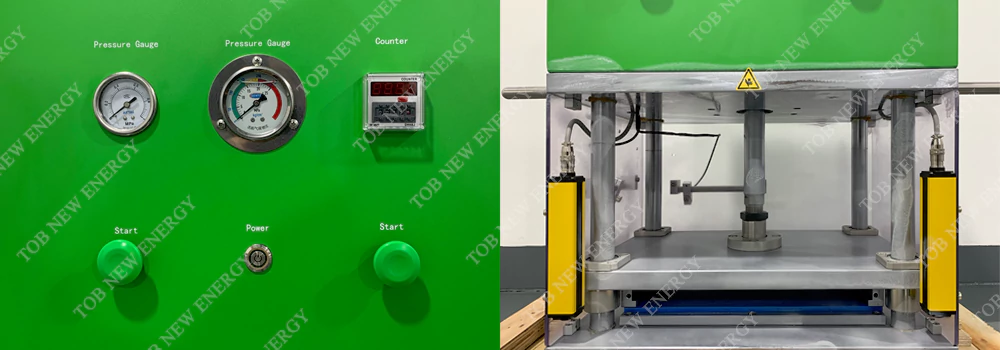

PRODUCT DISPLAY

Electrode Die Cutting Machine

Solid State Battery Electrode Die Cutting Machine

battery electrode cutting machine

PACKAGE

Electrode Die cutter Package
