China Leading Small Lab Vacuum Mixer Machine With 150ml Mixer Jar Manufacturer
加载中...

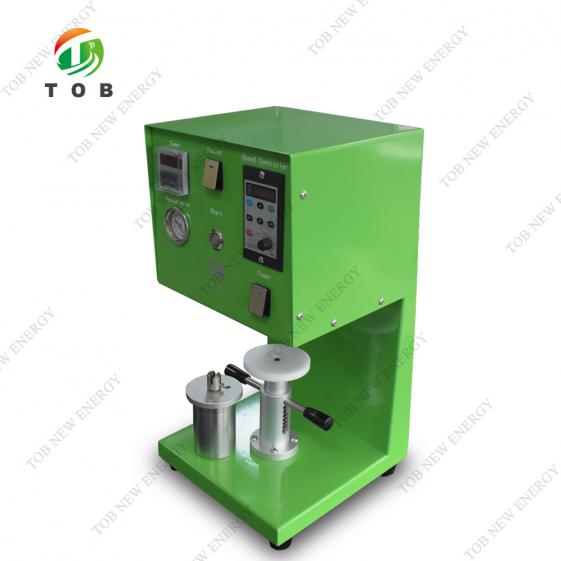

Small Lab Vacuum Mixer Machine With 150ml Mixer Jar

This vacuum mixer is vacuum mixing, dispersion efficient equipment, it is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles,improve the filling material and density
  • item no.:

    TOB-ZKJB-150
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail
Desk-Top Stepless Speed Small Lab Vacuum Mixer Machine With 150ml Mixer Jar

SPECIFICATIONS



1.Thisvacuum mixeris vacuum mixing, dispersion efficient equipment, it is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles,improve the filling material and density

2.Mainly feature:

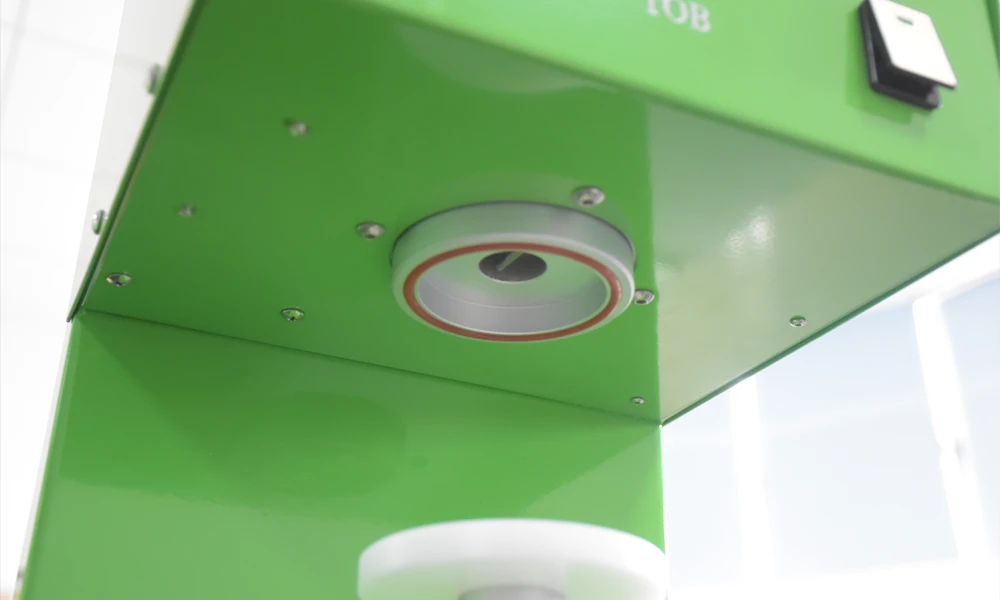

2.1.Use soft sealing process, good sealing effect

2.2.Mixing motor adopts gearbox frequency adjustment, can adjust vacuum speed according to materials feature.

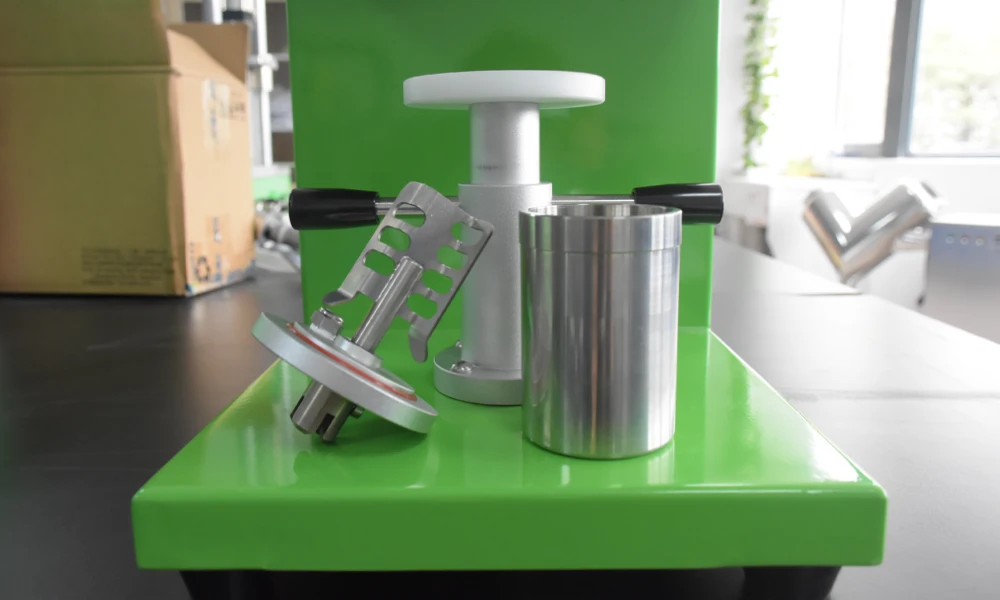

2.3 Double blade design,make rapid mixing paste.

2.4.Small overall dimensions, to save space,delicate appearance, simple.


Model

Vacuum mixer machineTOB-ZKJB-150

Voltage Input

AC220V /AC110V

Power

150W

Stirring speed

0 ~ 320 RPM;the inverter speed control

Vacuum

≤-90~-95Kpa

Accessories volume

150 ml stainless steel vacuum drum, can be customized

Mixing time

0 ~ 9999 minutes (can beset)

Oscillation mode

Infinitely adjustable-speed

Dimensions(L*W*H)

About 330*310*510mm

Weight

About 20kg

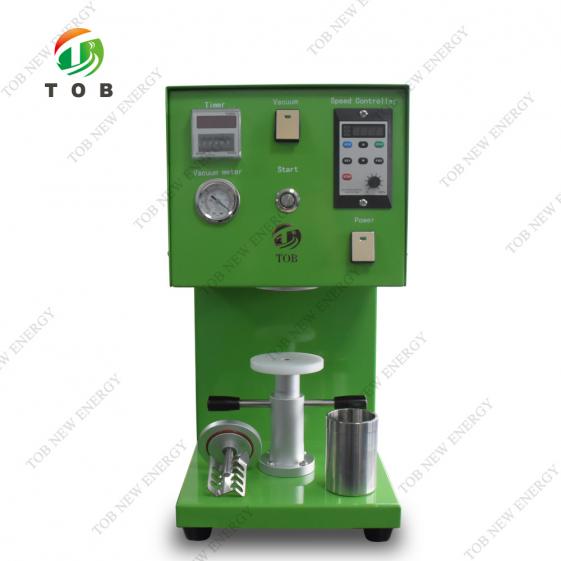

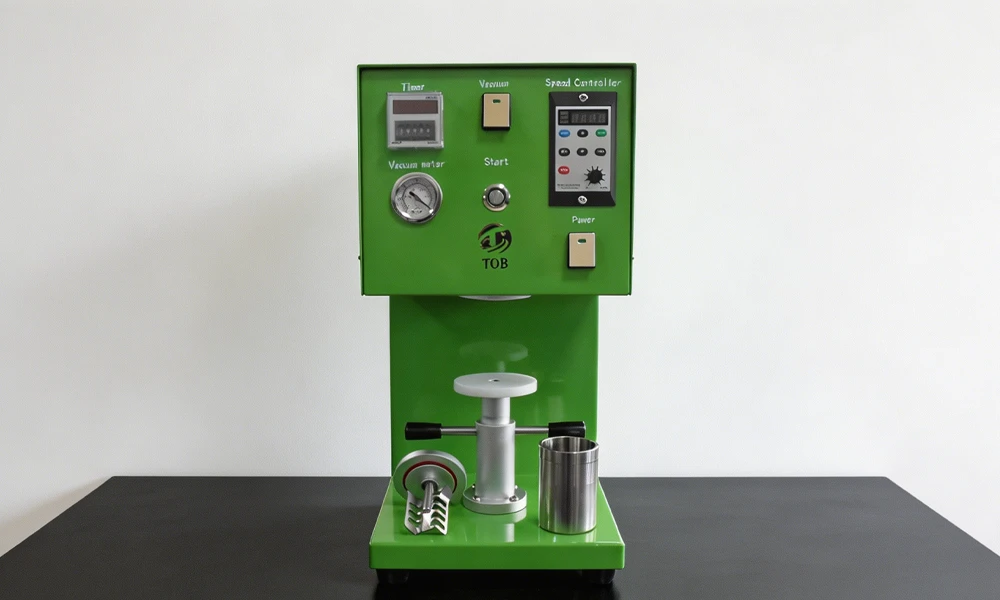

PRODUCT DISPLAY




Vacuum Dissolver Mixer Machine

Vacuum Dissolver Material Mixing Machine

Vacuum Dissolver Mixer
