battery machine and materials solution
Products

Hot Products


battery electrolyte filling machine
加载中...

Single Head Battery Electrolyte Filling Machine

TOB-JLB - 10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system
  • item no.:

    TOB-JLB-10
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

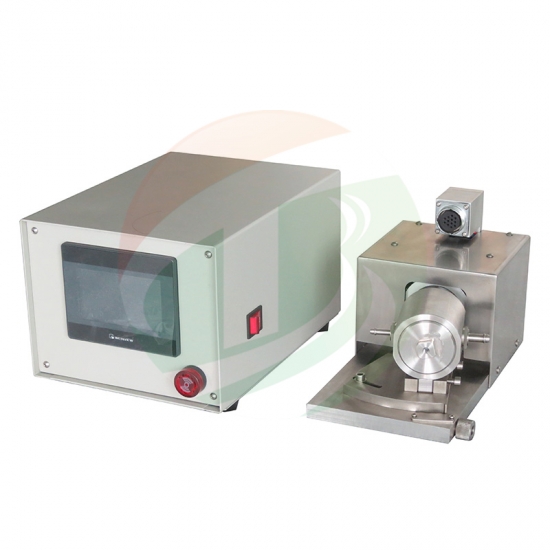

Single Head Electric Injection Pump Battery Electrolyte Filling Machine


SPECIFICATIONS


TOB-JLB - 10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system


Model

Single Head Electric Injection Pump  TOB-JLB-10

Warranty

One year limited and lifetime support

Type

Rotating reciprocating positive displacement special ceramic injection pump

Speed

1-800 rpm, According to system configuration and fluid characteristics

For battery industry, 60-200rpm is best

Stroke number

1-9999times, According to system configuration and fluid characteristics

Filling range

0-2.4ml adjustable

Filling accuracy

Within 3‰

Source voltage

AC110V/220V, 50/60HZ Single phase

Power

300W

Dimension (L*W*H)

Controller box : 340*300*145mm

Filling device : 230*160*155mm

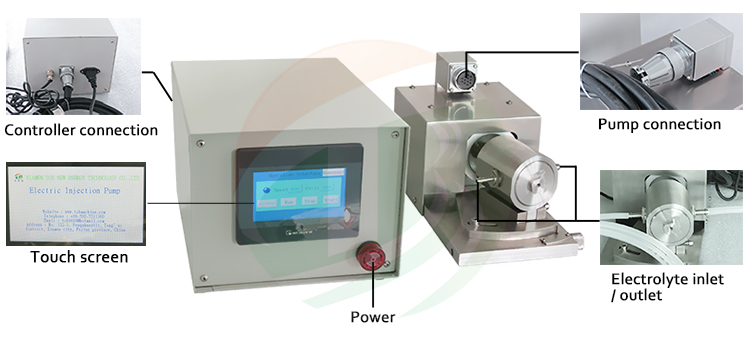

PRODUCT DISPLAY



 Single Head Electric Injection Pump

 Single Head Electric Injection Pump

 Single Head Electric Injection Pump

Electric Priming Pump filling process

Filling pump filling process

PACKAGE

 Single Head Electric Injection Pump Package
