Injection Pump For Lithium Battery
加载中...

Injection Pump For Battery Electrolyte Filling

Pump is easy to be placed into a glove box and precisely controls the filling amount of electrolytes or other lower viscosity liquids under vacuum/inert gas atmosphere. It is an ideal tool for use in battery R&D.

  • item no.:

    TOB-JK-JLB-M12
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Desk-top Precision Injection Pump For Battery Electrolyte Filler


Specifications



1 TOB-JK-JLB-M12 Electrolyte Injection Pump is a desk-top and corrosive-proof electrolyte filling device.

2 ThisInjection Pump is easy to be placed into a glove box and precisely controls the filling amount of electrolytes or other lower viscosity liquids under vacuum/inert gas atmosphere. It is an ideal tool for use in battery R&D.


Model

Electrolyte Injection Pump   TOB-JK-JLB-M12

Voltage

110V/220V, 50/60HZ

Power

20W

Warranty

One year limited warranty with lifetime support

Air Pressure

> 60psi (0.4Mpa)  ( Air compressor in not included)

Advantages

1 High precision of quantitative pump injection

2 Resistance to acid and alkali corrosion

Filling Volume Range

0 - 7ml

Increment Displayed

1µl for minimum

Digital Scale Accuracy

0.02g

Piston diameter

3/4 inch, about 19.05mm

Stroke

1 inch, about 25.4mm

Net Weight

25Kg

Product Dimensions

Injection Pump : 55*55*250mm

Control Box : 150 *200 * 250mm


PRODUCT DISPLAY

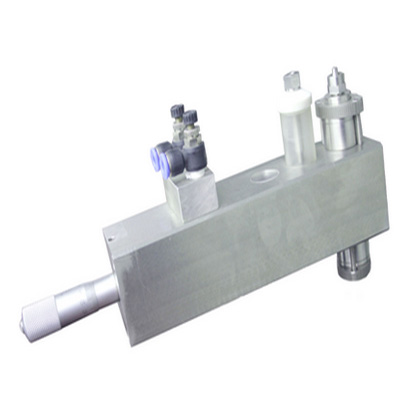

Electrolyte Injection Pump

Injection pump structure
