Prismatic Cell Sorter Battery Sorting Machine

Suitable size of the prismatic battery: 50*160*118, 36*130*200, 30*130*200.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-STS08-S
  • order(moq):

    1 set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

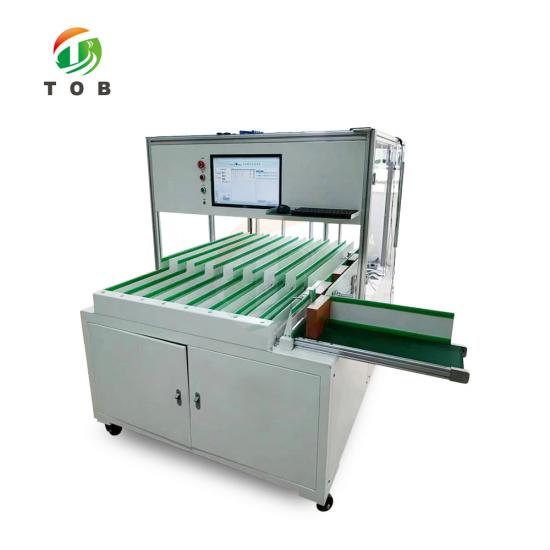

Prismatic Cell Sorter Battery Sorting Machine



SPECIFICATIONS


Equipment Features

1. This prismatic cell sorting machine includes brand computer, software system, precision voltage and internal resistance tester, code spraying mechanism, batch feeding mechanism, manipulator automatic grading, automatic discharging and other mechanisms.

2. According to the AC internal resistance, open circuit voltage and other parameters of lithium battery, the battery is accurately divided into groups according to various performance parameters, and the maximum number of one-time divided groups is 8 groups, so as to improve the consistency of pack battery quality and cell performance.

3. The AC internal resistance and open circuit voltage are collected by the high-precision testerHIOKI BT3562A, HIOKI DM7275. automatic collection, automatic control of sorting process, simple operation, abandoning manual participation, ensuring the accuracy of test parameters and the reliability of matching process, improving and ensuring the performance and quality of pack products.

4. High degree of automation, hopper feeding and simple operation. It can test and match about 600 cells per hour, can effectively improve production efficiency and reduce production cost.

5. The performance data of the cell tested by the system adopts the database management mode, which is stored for a long time and has strong traceability. Cooperate with the data analysis function to conduct long-term monitoring and analysis of product performance and quality, so as to guide the improvement of R&D and improve the production process.

6. The industrial control computer collects data and automatically generates curves and bar charts. The system has the function of database, which can trace and export historical data.


Prismatic Cell Specifications and Requirements
1. Prismatic cell 50*160*118, 36*130*200, 30*130*200.
2. The positive and negative side are clean and free from dirt.


Model TOB-STS08-S prismatic cell sorting machine

Power supply

220V, 0.5KW

Air source

0.5~0.6 MPa (dry air)

Sorting efficiency

≥ 10ppm

Product qualification rate

≥ 99%

Equipment activation

≥95%

Sorting qualification rate

 ≥ 98%

Sorting accuracy

99.9%

Secondary test

Edge gear voltage deviation ±0.1mv,

internal resistance deviation ±0.05mΩ

Sorting parameters

Open circuit voltage, AC internal resistance

Tester

Precision voltage and internal resistance tester

Equipment weight.

≥ 300kg

Overall dimension (L*W*H)

1600*1600*1700mm


Equipment Module

1. Model: TOB-CTS12-S sorting system, it can complete the open circuit voltage and AC internal resistance testing and sorting.

2. HIOKI BT3562A internal resistance tester, 1 set

3. HIOKI DM7275 voltage tester, 1set


Safety Protection

No.

Item

1

High temperature, high pressure and other dangerous parts of the equipment are equipped with corresponding protective devices and warning signs.

2

During normal operation of the equipment, there will be no smoke, abnormal noise, air leakage, electric leakage, spark, open fire and other phenomena.

3

The equipment has the functions of emergency switch protection, overvoltage protection, overcurrent protection, leakage protection, short circuit protection, vacuum pump/motor overload protection, overtemperature protection and audible and visual alarm protection.

4

An emergency stop switch shall be installed at an obvious position on the equipment installation site to conduct emergency stop operation in case of equipment emergency.

5

The equipment is guaranteed to be safe and reliable, the appearance is neat, and the maintenance and inspection are convenient. In the case of system failure or protective device failure, the equipment cannot be started or immediately stops working, and an alarm is issued at the same time.

6

The main components of the equipment are reliable parts, not vulnerable parts.

7

When the equipment gives an abnormal audible and visual alarm, the operation screen displays alarm information and simple fault handling prompt, it’s convenient for the operator to diagnose the fault.

8

The equipment is equipped with red, yellow and green alarm indicators. The indicator adopts LED light source to ensure its long service life and reliability. Its colors respectively indicate: equipment failure, standby preparation and normal operation. In case of failure, it has audible and visual alarm function until the alarm is relieved.


Other Requirements

1. The probe is a vulnerable part with spring, its service life is related to the test frequency. If the test frequency is very high, it is generally recommended to replace the probe within 30 days (according to the specific service times). The replacement of the probe is convenient and simple, it only takes 3-5 minutes. At the same time, we will provide vulnerable parts to customers.
2. The appearance color of the equipment is international standard gray 1C.
3.Equipment noise ≤ 80dB (measured 1000mm away from the outer wall of the equipment).
4. The equipment complies with relevant national safety standards.
5. We will provide operation manual and maintenance manual.
