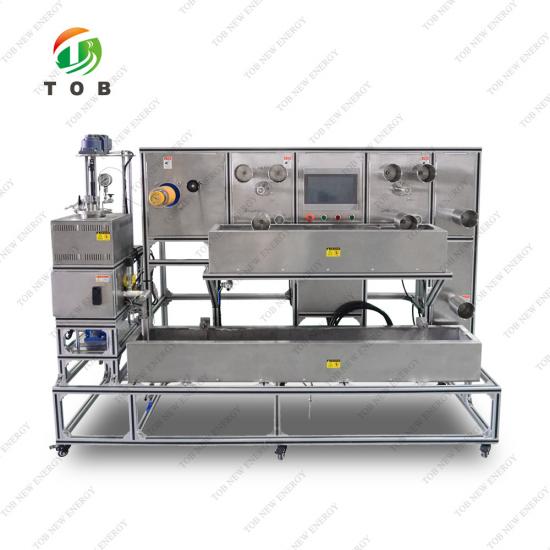

Multi-layer Wet Spinning Machine

No.

Item

Specification

Qty

Unit

1

Spinning pot

1. Tank material: 316L stainless steel spray acid and alkali resistant material

2. Tank volume: 2L

3. Viscosity of spinning solution: 50-200Pa·s(dry spray wet spinning)

4. Mono filament size: 0.1-1mm

5. Spinning speed: 5m/min-100m/min, step less speed regulation

6. Maximum spinning temperature: ≥300℃ 7.Maximum heating temperature: ≥150℃

8. Power supply: 220V 50Hz

9. With positive and negative pressure gauges

1

Set

2

Measurement system

1.Metering pump flow: 1.2cc/rpm

2.Transmission mode: cycloidal-pin gear reducer motor

3. Motor power: 370W

4. Gearbox reduction ratio: 1:59

5. Heating temperature: RT-150℃

1

Set

3

Spinneret assembly

1. Material: 316L stainless steel

2. Composition: Spinneret (plate type), hollow fiber membrane spinning assembly

3. Spinneret structure: single hole

4. Pressure sensor included

1

Set

4

Core fluid system

1.Structure: liquid storage tank (2L) + peristaltic pump

2. Flow rate: 0-130ml

1

Set

5

Coagulating bath

1. Material: 316L stainless steel

2. Maximum heating temperature: ≥100℃

3. Inlet and outlet diameter DN15

4. With two sets of press roller, temperature sensor port

1

Set

6

Bath draft

1. Material: 316L stainless steel

2. Dimensions: 1000x160x160

3. Inlet and outlet diameter DN15

4. Maximum line speed of draft: 20m/min

5. Maximum draft ratio: 10:1

6. Roller size: Outer diameter: 100mm width 80mm

7. Structure: two sets of 3 rollers

8. Maximum heating temperature: ≥100℃

1

Set

7

Defoaming vacuum pump

1.Vacuum pump structure: directly connected rotary vane vacuum pump

2. Power: 0.37KW

3. Pumping rate: 1L/s

4. Limit vacuum: 0.067pa

1

Set

8

Circulating pump

1. Name: brushless DC pump

2. Voltage: 24V;

3. Flow rate: 12L

4. Fluid temperature: 0-120℃

1

Set

9

Simple winding

1. Quick removal of stainless steel cylinder

2. Common cabling device

3. Frequency converter step less speed regulation

4. Winding speed: 1-50m/min

1

Set

10

Touch screen control system

1. Control mode: PLC+ touch screen + software

2. Brand electrical/instrument/sensor

3. Integrated centralized control box,

4. Centralized touch interface: temperature control/temperature measurement/flow/pressure/speed

5. Data can be saved and remote transmission

1

Set

11

Bottom frame

1. Material: 30x30 aluminum alloy frame

2. Overall design, segmented connection

1

Meter
