China Leading Lab Melt Spinning Machine Manufacturer
加载中...

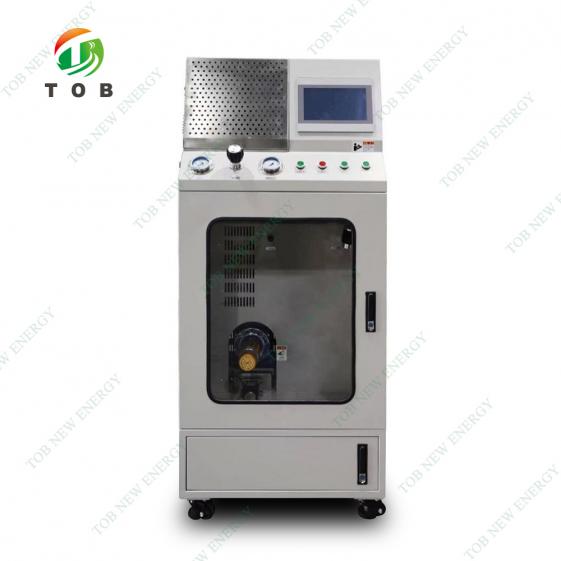

Lab Melt Spinning Machine

TOB-PM-M12-350 lab melt spinning machine is a spinning machine specially designed for the characteristics of chemical fiber and carbon fiber, which can realize carbon fiber spinning and forming of chemical fiber, pitch-based, coal-based or other modified materials.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-PM-M12-350
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

Lab Melt Spinning Machine


SPECIFICATIONS


TOB-PM-M12-350 lab melt spinning machine is a spinning machine specially designed for the characteristics of chemical fiber and carbon fiber, which can realize carbon fiber spinning and forming of chemical fiber, pitch-based, coal-based or other modified materials.


Working Principle

This melt spinning machine adopts a three-stage brass heating jacket for uniform heating, so that the spinning material is evenly heated and melted. Using compressed gas to precisely adjust the pressure to control the extrusion flow rate of the material, the melt passes through the spinneret assembly and the spinneret, and is extruded into filaments from the spinneret in a quantitative and uniform manner. After the slow cooling system, long fibers are formed under the drafting action of the take-up roller, and the fiber diameter can be as thin as 10um or less.


Features

1. Integrated structure, electrostatic sprayed plastic sheet metal shell, beautiful and anti-corrosion.

2. The front adopts a super-large perspective window, which is convenient for observing the spinning process.

3. The control adopts touch screen, which is easy to operate and expandable in function.

4. The material barrel is made of heat-resistant stainless steel, which is durable.

5. A small amount of materials can be used to complete the test process and save materials.

6. The take-up drum adopts quick-release standard fiber paper drum or stainless steel drum, which is convenient for post-processing of fibers.

7. The take-up roller can realize automatic wire arranging to ensure even wire collection, more orderly and beautiful wire arranging.

8. The collection speed is adjustable to realize fibers with different wire diameters, which can be below 10um.

9. The overall spinning process can be realized without personnel care, reducing the labor force of operators.


Technical Parameters

Product model:

TOB-PM-M12-350

Name:

Air pressure standard type spinning tester

Power:

AC208-240V 50HZ (other power customized)

Maximum power:

≤ 3750KW

Overall dimensions:

700*750*1700(mm)

Charging method:

Intermittent, manual one-time filling

Filling quantity:

10-300g, barrel size D60 * H350

Melting method:

3-stage casting brass heater heating

Melting temperature:

350 ℃, accuracy: ± 0.5 ℃

Feeding mode:

Precision decompression and pressure stabilization control compressed gas pressure extrusion

Pressurization/metering:

Precision pressure reducing and stabilizing valve (customer-owned compressed gas cylinder)

Spinning pressure:

<2.5Mpa,±0.01Mpa

Melt Filtration:

Stainless steel sintered plate 200 mesh (other precision customization)

out of the wire mold:

≤ 6 hole plate SUS630 material

Spinning Corridor:

Can choose another slow cooling corridor

Cable:

Active reciprocating roller, adjustable speed

Rewind:

Paper tube, specification: outer diameter 100, length 120mm,

Spinning speed:

2800r/min continuous variable frequency adjustable

Control mode:

Integrated touch screen control

Security protection:

Overtemperature power off/overpressure power off

Scope of application:

Suitablefor chemical fiber,asphalt-based/coal-based or other modified materials of carbon fiber spinning performance evaluation, explore material spinning performance parameters

Applicable materials:

Chemical fiber, coal-based/pitch-based carbon fiber, or other modified polymers.


PRODUCT DISPLAY


Melt Spinning Machine

Melt Spinning Machine

Melt Spinning Machine
