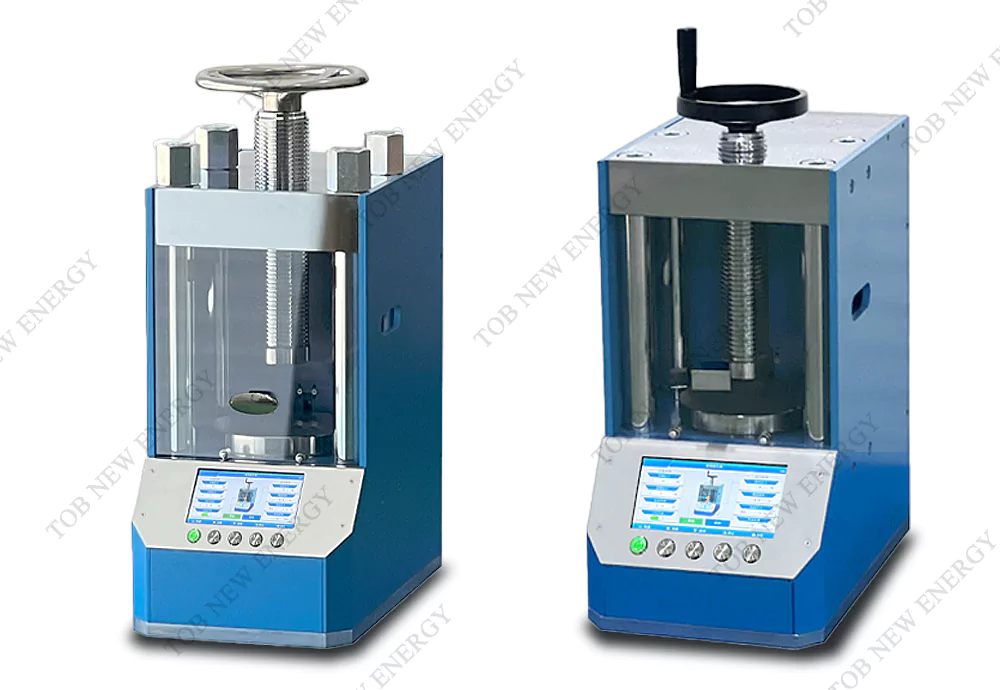

XIAMENTOB-NL-Series Lab Automatic Tablet Press Machine
SPECIFICATIONS
Selection Suggestions:
For manual hot presses, it is recommended that the pressure used be within half of the full-scale pressure. For example, if a pressure of 10 tons is required, it is best to choose a hot press of more than 20 tons, so that the pressure can be relatively stable. If the pressure is too high, the insulation pads and insulation boards will produce large deformations under high pressure, which will lead to insufficient pressure.
If the pressure required is relatively high and the pressure holding requirement is relatively high, it is recommended to choose an automatic tablet press. Because the automatic machine has an automatic pressure replenishment function, that is, if the pressure is insufficient, the machine will automatically replenish the pressure.
| Model | TOB-NL-20S | TOB-NL-30S | TOB-NL-40S | TOB-NL-100S | TOB-NL-150S |
| Pressure range | 0-20.0ton | 0-30.0ton | 0-40.0ton | 0-100.0ton | 0-150.0ton |
| Pressurisation process | Ordinary or connected multi-stage pressurisation and can display the pressure curve | Ordinary or connected multi-stage pressurisation and can display the pressure curve | Ordinary or connected multi-stage pressurisation and can display the pressure curve | Ordinary or connected multi-stage pressurisation and can display the pressure curve | Ordinary or connected multi-stage pressurisation and can display the pressure curve |
| Holding time | 1sec~∞sec | 1sec~∞sec | 1sec~∞sec | 1sec~∞sec | 1sec~∞sec |
| Pressure conversion | The programme automatically converts the mould to withstand pressure | The programme automatically converts the mould to withstand pressure | The programme automatically converts the mould to withstand pressure | The programme automatically converts the mould to withstand pressure | The programme automatically converts the mould to withstand pressure |
| Liquid crystal display | 7 inch (IPS HD) touch screen | 7 inch (IPS HD) touch screen | 7 inch (IPS HD) touch screen | 7 inch (IPS HD) touch screen | 7 inch (IPS HD) touch screen |
| Metal keypad | Silver-plated contacts, service life > 100,000 times | Silver-plated contacts, service life > 100,000 times | Silver-plated contacts, service life > 100,000 times | Silver-plated contacts, service life > 100,000 times | Silver-plated contacts, service life > 100,000 times |
| Equipment protection | Steel plate protection with organic glass door | Steel plate protection with organic glass door | Steel plate protection with organic glass door | Steel plate protection with organic glass door | Steel plate protection with organic glass door |
| Limit switch | Automatic pressure relief when the cylinder reaches the limit height. | Automatic pressure relief when the cylinder reaches the limit height. | Automatic pressure relief when the cylinder reaches the limit height. | Automatic pressure relief when the cylinder reaches the limit height. | Automatic pressure relief when the cylinder reaches the limit height. |
| Remote control | Optional computer for remote control, and can print the report. | Optional computer for remote control, and can print the report. | Optional computer for remote control, and can print the report. | Optional computer for remote control, and can print the report. | Optional computer for remote control, and can print the report. |
| Cylinder stroke | 30mm（T） | 30mm（T） | 40mm（T） | 50mm（T） | 50mm（T） |
| Space Size | 140*160mm（M*N） | 140*160mm（M*N） | 175*180mm（M*N） | 185*250mm（M*N） | 200*260mm（M*N） |
| Overall dimensions | 230*390*420mm（L*W*H） | 230*390*420mm（L*W*H） | 280*460*550mm（L*W*H） | 330*580*620mm（L*W*H） | 400*620*620mm（L*W*H） |
| Equipment power supply | 550W（220V/110 can be customised） | 550W（220V/110 can be customised） | 550W（220V/110 can be customised） | 1500W（220V/110 can be customised） | 1500W（220V/110 can be customised） |
| Equipment weight | 90kg | 95kg | 150kg | 240kg | 380kg |
PRODUCT DISPLAY
