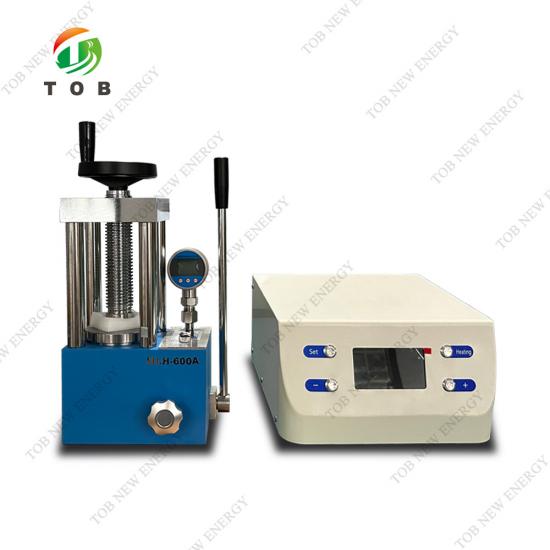

Cylindrical Heat Press Machine

This TOB-NLH-600 heat press machine is suitable for rubber, plastic, leather, chemical industry, pigment, electronic appliances, textile, hardware and other fields.

Brand:
TOB NEW ENERGY
item no.:
TOB-NLH-600
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Cylindrical Heat Press Machine

SPECIFICATIONS

Adopts water cooling cycle, which can accelerate the cooling speed of the sample after forming, reduce the sample preparation time and improve the efficiency. It can be used as a small flat vulcanizer, suitable for rubber, plastic, leather, chemical industry, pigment, electronic appliances, textile, hardware and other fields.

Model	TOB-NLH-600A	TOB-NLH-600C
Pressure range	0-24T (0-34MPa)	0-24T (0-34MPa)
Piston diameter	ф 95mm cylinder	ф 95mm cylinder
Overall structure	Seamless connection, reducing leakage point	Seamless connection, reducing leakage point
Temperature control	RT~600.0℃, accuracy 0.1℃	RT~600.0℃, accuracy 0.1℃
Mold heating temperature	RT~300.0℃	RT~300.0℃
Heat insulation method	imported heat shield	Imported heat shield
Cooling method	rapid cooling by water cooling (water cooler is optional)	Rapid cooling by water cooling(water cooler is optional)
Mold cavity size	Inner hole less than 20 mm (other sizes can be customized)	Double plate heating 100x100mm
Host size	245x175x415mm	245x175x500mm
Overall size	800 × 470 × 415mm	800 × 470 × 500mm
Power supply	220V / 300W	220V / 600W
Weight	48kg	52kg

PRODUCT DISPLAY

Heat Press Machine

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609

Related Tags :

Heat Press Machine

Cylindrical Heat Press Machine

powder tablet compaction machine

Cylindrical Press Machine

Electrode Powder Press Machine
