Inert Atmosphere Glove Box for Solid Lithium

This TOB-STX-2 stainless steel glove box is an inert atmosphere glove box for lithium battery research and manufacturing.

Brand:
TOB NEW ENERGY
item no.:
TOB-STX-2
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

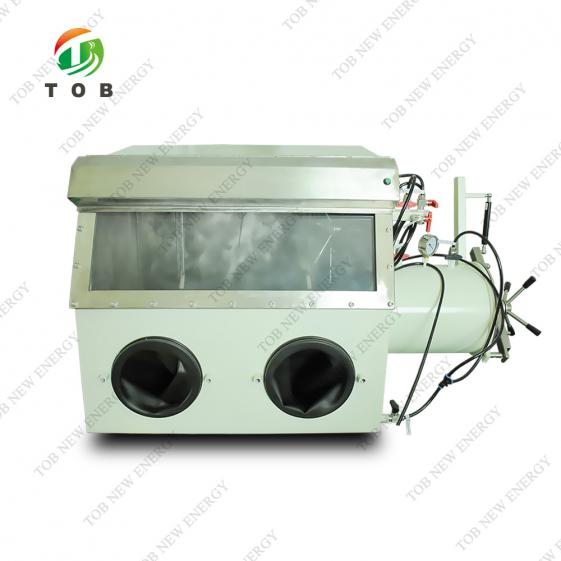

Inert Atmosphere Glove Box for Solid Lithium

SPECIFICATIONS

1. Vacuum glove box (also known as vacuum inert gas operation box) can effectively solve the easy oxidation and deliquescence problems, the device can make test sample safely put in and taken out, and operation, reaction and test in anaerobic anhydrous conditions freely, to ensure the normal scientific experiments.

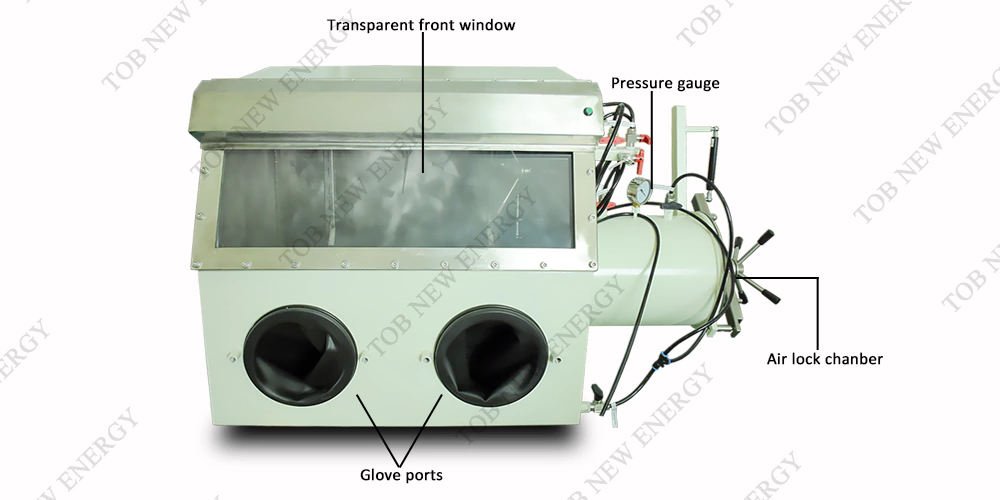

2. TOB-STX-2 is a middle size heavy duty stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

Machine parameter
Machine model	TOB-STX-2
Dimension	800600700mm
Air-lock Chamber	Φ280*350mm
Gloves	Glove hole diameter : 200mm (2 pcs)
Weight	240 kg
Advantages	1 Stainless steel, corrosion resistance, easy to clean, no pollution 2 Observation window view the vast clear and bright 3 Equipped with porous plug socket, convenient for scientific experiment 4 Operating gloves use special seal latex gloves, reliable sealing
Technical indicators
Vacuum degree for air-lock chamber	0 ~ -0.1 Mpa pressure maintaining more than 12 hours
Vacuum degree for operating chamber	0 ~ -0.1 Mpa pressure maintaining more than 12 hours
Operating air	Ar, He, N2 (purity more than 99.95%)

Rotary vane vacuum pump (Optional)

Rotary vane pump is mainly composed of pump body, rotor, rotary vane end cover, spring, etc. Installing a rotor in rotary vane pump cavity, the outer circumference of the rotor is tangent to the inner surface of the pump chamber and the rotor slot inner is fitted with two rotary vane with springs. When it is rotating, centrifugal force and the spring tension make the top of rotary vane keep contact with pump chamber wall, and the rotating rotor drives the rotary vane to slide along the inner wall of the pump cavity.

Model	Pumping rate	Air inlet diameter	Oil capacity	Dimensions	Power	Voltage	Gross weight / net weight
TOB-MZT-2L	2(L/S)	Φ30(mm)	0.8 (L)	481225(cm)	0.37(KW)	220/380(V)	22/20(kg)
TOB-MZT-4L	4(L/S)	Φ30(mm)	1(L)	521425(cm)	0.55(KW)	220/380(V)	21/20(kg)

vacuum pump

PRODUCT DISPLAY

Inert Atmosphere Glove Box

More glove box for battery research and manufacturing

Email : tob.amy@tobmachine.com

Skype :amywangbest86

Whatsapp/Phone number :+86 181 2071 5609
