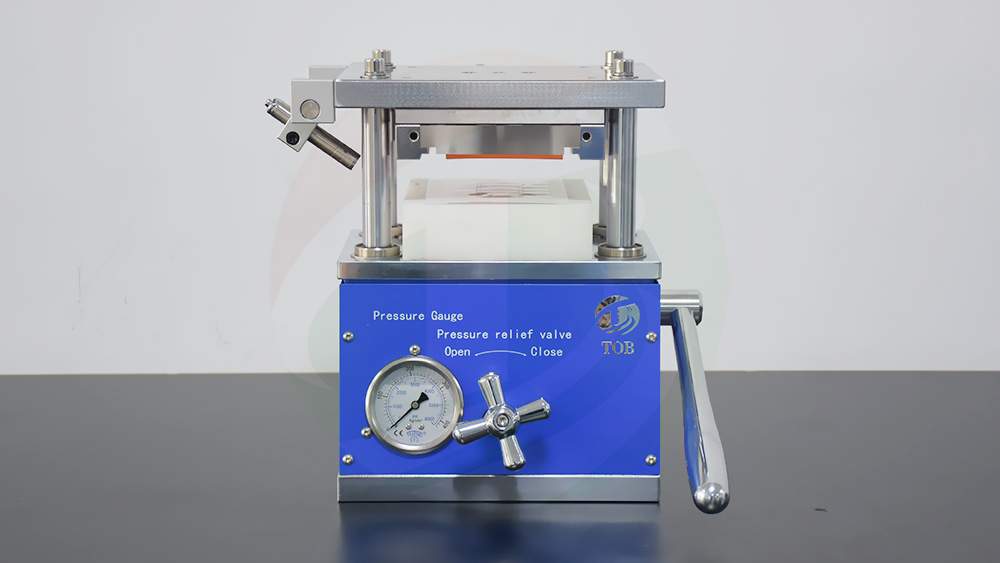

Hydraulic Battery Electrode Die Cutter For Pouch Cell Lab Research

TOB-CP-500 battery electrode cutting machine has a 500mm cutting width, and switch between the fixed length mode and the induction mode.

TOB-D-500 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery.

TOB-MQ300 semi-automatic electrode die cutter cutting machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery.

500mm Width Battery Cutting Machine

1 Thisbattery cutting machineis used for lithium battery anode/cathode electrode and aluminum laminated film Automatic continuous roller cutting. 2 For thisautomatic cutting machine,the cutting length can be set, and it’s cutting quantity can be counted and set automatically, it is a very useful machine for battery production line. 3 This battery cutting machine is used after electrode coating for cutting the electrode to big pieces for rolling press simply.

500mm Width Battery Electrode Shear Cutting Machine

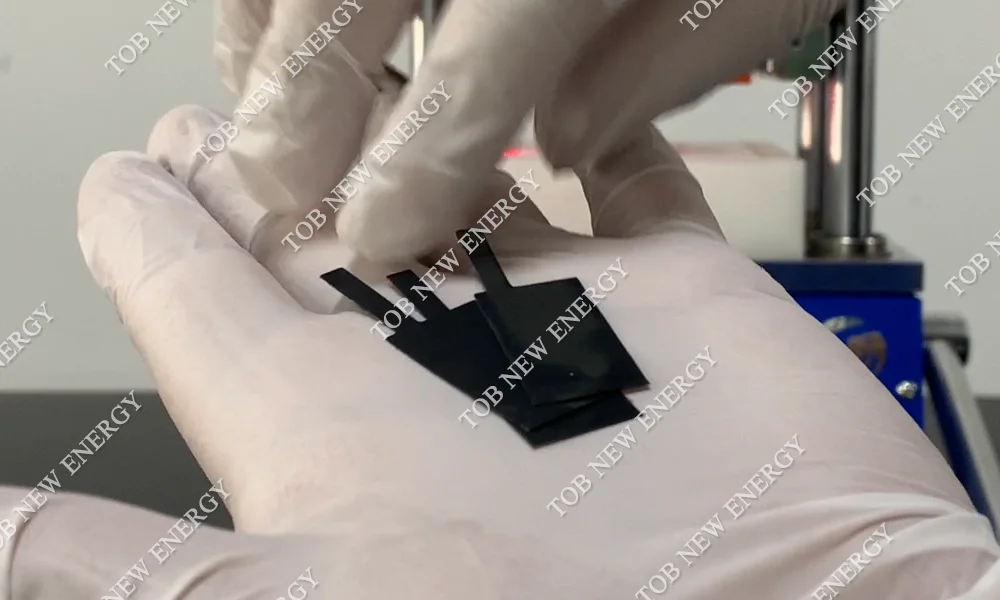

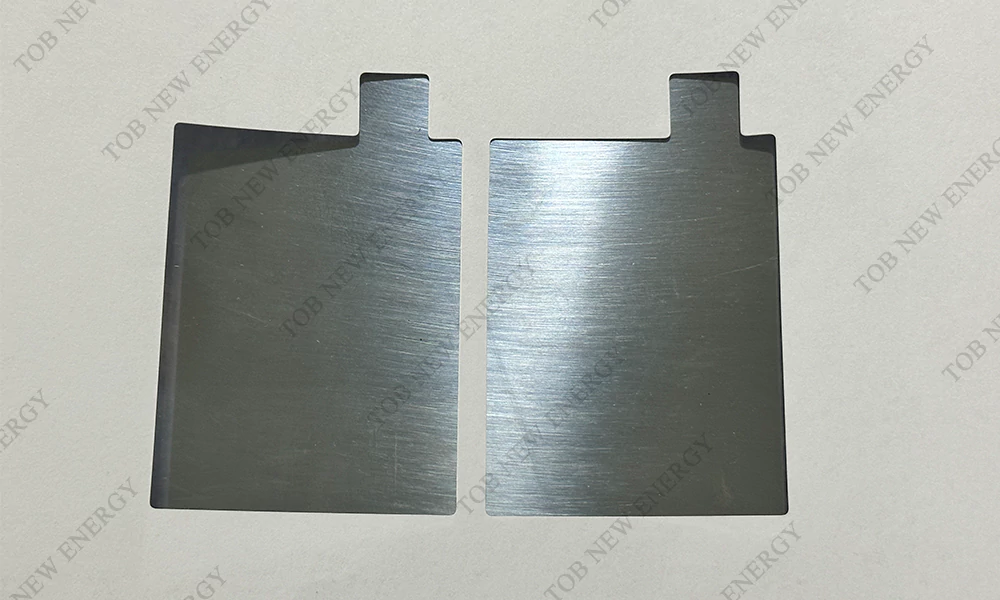

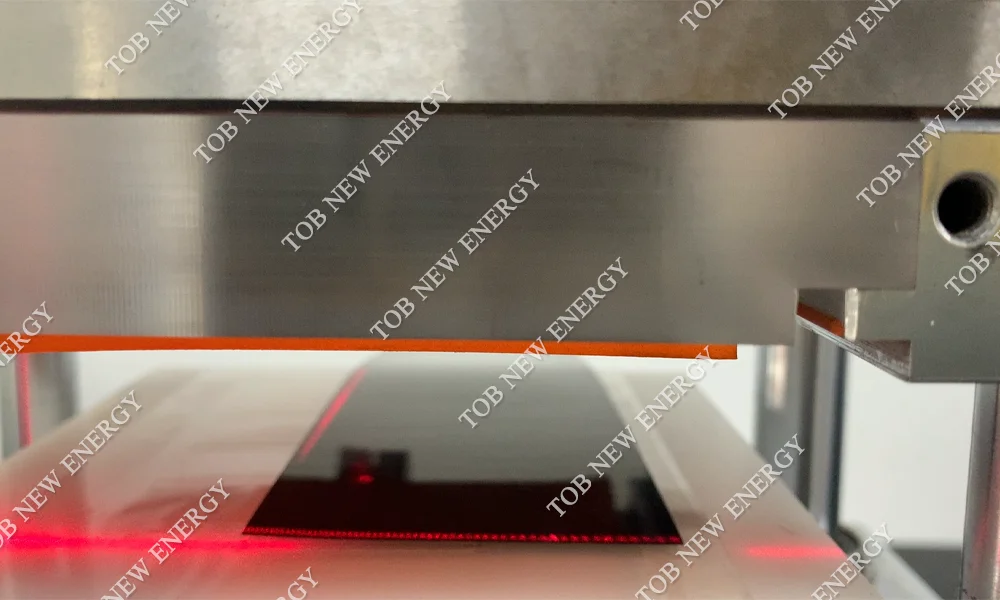

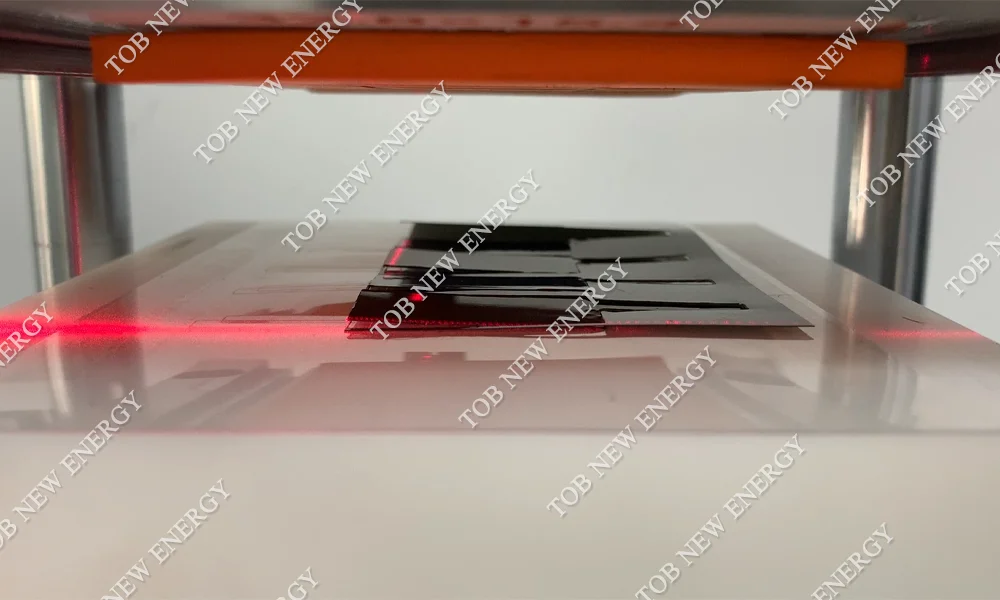

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell SPECIFICATIONS This machine is used for make the roll electrode into cell shape electrode automatically. 1 Roll electrode feeding automatically, controlled by Photoelectric switch 2 Adopt laser module to get high efficiency and accuracy Model TOB-04-350-DC Source voltage  AC 220V, 50HZ Power  4.2KW Air compression 0.6-07MPa Suitable battery size ≤350*200mm Max electrode width 360mm Cutter die height 23.8mm Accuracy of struggle 0.1mm Capacity 40-60times/min Dimension 2800*1400*900mm Weight 2500kg Finished electrode of the die cutter machine  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609

Automatic high-precision electrode forming machine SPECIFICATIONS TOB-LPC520 series machine technical parameters: Forming speed 20-30 punching  per minute. Maximum electrode width 520mm (actual maximum 540mm) The largest size electrode forming 500mm*500mm Electrode thickness 0.06 ~ 0.25mm Cutter life about 30,000 times Forming burr ≤0.015mm After punching the edges dusting ≤0.15 mm PET conveyor belt life recycling approximately 10,000~30,000 times Electrode box size according to customer-supplied Failure rate of the device ≤5% (only caused by the equipment failure) Power  required 6.0KW Voltage AC380V ± 10% Air pressure required 0.5 ~ 0.7Mpa Vacuum required -90Kpa ~ -60Kpa Weigh 4000KG Dimension (approx) length: 4300MM * Width: 2000MM  * High: 1850MM Other: According to electrode specifications provided by the customer, provide a laser sheet die cutter free.  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
