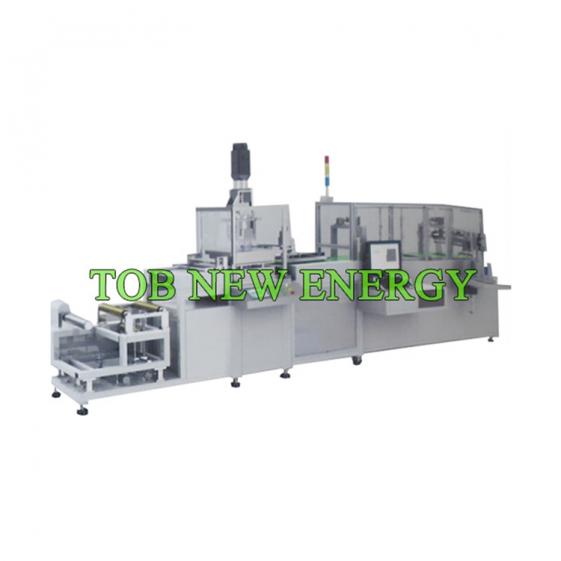

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode

  • item no.:

    TOB-04-350-DC
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Automatic Die Cutting / Punching Machine For Anode and Cathode Electrode for Stacking Pouch Cell


SPECIFICATIONS



This machine is used for make the roll electrode into cell shape electrode automatically.

1 Roll electrode feeding automatically, controlled by Photoelectric switch

2 Adopt laser module to get high efficiency and accuracy

Model

TOB-04-350-DC

Source voltage

AC 220V, 50HZ

Power

4.2KW

Air compression

0.6-07MPa

Suitable battery size

≤350*200mm

Max electrode width

360mm

Cutter die height

23.8mm

Accuracy of struggle

0.1mm

Capacity

40-60times/min

Dimension

2800*1400*900mm

Weight

2500kg


Finished electrode of the die cutter machine

Finished electrode
