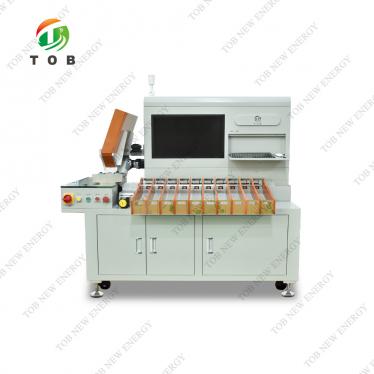

Battery Automatic Sorter Machine

The Battery Automatic Sorting Machine is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

Brand:
TOB NEW ENERGY
item no.:
TOB-FX-05
order(moq):
1set
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN
Lead Time:
7days

inquiry now

Product Detail

5-channel Automatic 18650 Battery Grading Sorting Machine For Battery Pack Preparing

SPECIFICATIONS

System Overview

The 5 channels battery sorting machine is used for automatic sorting of battery by voltage and internal resistance with a voltage internal resistance tester. It sets the different grade in the touch screen, and shifting different grades of batteries to different channels according to the judgment result.
This automatic sorting machine is composed of loading mechanism, testing mechanism, automatic sorting and receiving mechanism, etc.
The machine's system automatically sorts and collects the batteries into their respective corresponding receivers based on group information according to the user's settings.

Workflow

battery sorting machine workflow

Equipment arrangement
This automatic sorting machine consists of automatic feeder, test, automatic sorting and collector.

Manually put the integrated battery into the cache area of the automatic feeder, the automatic feeder will send the batteries to the test area one by one, after the test is finished, the pushing cylinder will send the batteries to the sorting cylinder, the sorting cylinder will put different batteries into the corresponding grade; so on and so forth, the main parts and arrangement diagram are as follows.

Equipment operating environment requirements
Model	TOB-FX-05
Voltage supply	AC220V±10% 50Hz Power ≤1000W
Air Pressure	0.5-0.7Mpa
Operating temperature range	25℃±5℃
Humidity	≤85%
Size	L1100W620H1400mm
Weight	About 180kg
System technical specifications
Damage probability	≤0.1%
NG equipment failure rate	≤ 2% (faults caused by equipment only)
Suitable battery model	18650 battery voltage and resistance sorting
Number of sorting channels	5 channels
Equipment capacity	≥60PPM

PRODUCT DISPLAY

1. General arrangement diagram:

2. Feeding module:

3. Test mechanism:

4. Collector:

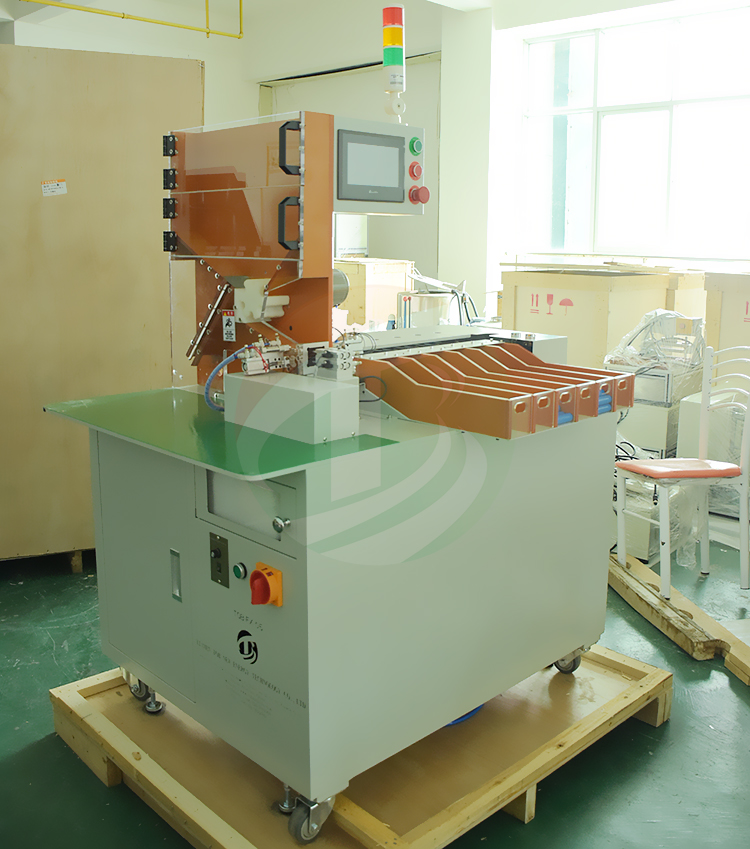

Automatic 18650 Battery Grading Sorting Machine

battery sorting machine

PACKAGE

Battery Cell Automatic Sorting Machine
