battery machine and materials solution
Products

Hot Products


  vacuum filling machine
加载中...

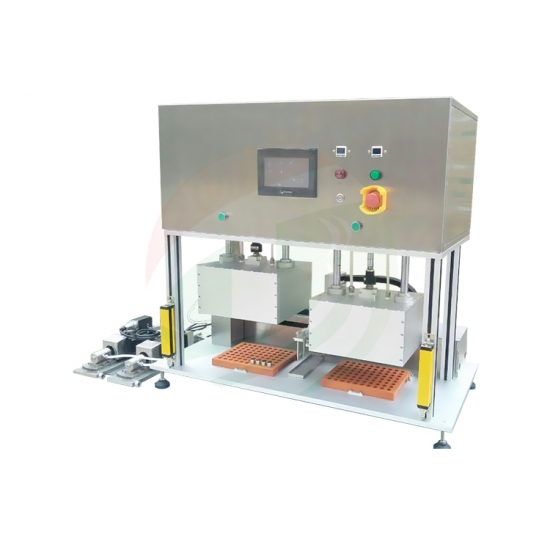

Vacuum Filling Machine For Cylindrical Battery

Vacuum Filling Machine For Cylindrical Battery
  • item no.:

    TOB-ZYJ-02
  • order(moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • product origin:

    China
  • shipping port:

    XIAMEN
  • Lead Time:

    7days
Product Detail

Vacuum Filling Machine For Cylindrical Cell Electrolyte Injection



SPECIFICATIONS




1 TOB-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.

2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.


Model

Vacuum Filling Machine  TOB-ZYJ-02

Source voltage

110V-220V AC, 50/60Hz Single Phase

Power

1500W

Warranty

One year limited and lifetime support

Suitable battery model

18650 / 26650 / 32650, For all kinds of cylindrical battery

Advantages

 1 Customized die for all kinds of cylindrical cell types is available according to request

 2 Adopt PLC and man-machine interface centralized control, easy operation.

 3 Filling speed and times can be set

 4 All the parameters such as vacuum time, air input time,

 filling quantity and battery distance can be adjusted freely.

 5 Vacuum box for static control independently

Vacuum filling accuracy

±0.02g

Vacuum filing time

1-10times adjustable

Vacuum filling quantity

 0-7g

Vacuum degree

-0.1Mpa

Air supply

0.3-0.6MPa

Working clamps

18650 clamps battery tray 6 rows 8 columns


PRODUCT DISPLAY




Vacuum Filling Machine

PACKAGE

Vacuum Filling Machine PACKAGE




 Skype : amywangbest86

 Whatsapp/Phone number : +86 181 2071 5609

Send a Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

our works
related products
Injection Pump For Lithium Battery
Injection Pump For Battery Electrolyte Filling
Pump is easy to be placed into a glove box and precisely controls the filling amount of electrolytes or other lower viscosity liquids under vacuum/inert gas atmosphere. It is an ideal tool for use in battery R&D.
China Leading Vacuum Filling System For Super Capacitor Electrolyte Manufacturer
Vacuum Filling System For Super Capacitor Electrolyte
TOB-ZY300 Vacuum filling system applies to the battery, super capacitor electrolyte filler process, this vacuum filling system adopts Vacuum-Filling-Pressure process, Guarantee electrolyte absorption with high consistency, reliability, completeness.
Double Head Priming Pump
Double Head Electric Priming Pump For Electrolyte
Double Head Electric Priming Pump For Electrolyte
  Electric Injection Pump
Single Head Electric Injection Pump For Electrolyte
Single Head Electric Injection Pump For Electrolyte
China Leading Electric Liquid Injection Pump Manufacturer
Electric Liquid Injection Pump
Electric Liquid Injection Pump SPECIFICATIONS Functional overview The machine makes use of stepping motor to drive rotation motion and reciprocating motion of ceramic plunger rod. Rotation motion is used for changing valve direction, and reciprocating motion is used for liquid inlet and outlet  so as to reach the purpose of controlling fluid accurately. Functional characteristics 1.Adopt anti-corrosion and special high wear-resisting ceramic pump head. 2.Assembling, disassembling or cleaning of pump head is convenient and quick. 3.Select speed. Number of turns is continuous and adjustable. Technical parameters Power source AC220V/50Hz  Power: 0.5kW Injection accuracy ±0.1% The calibration of the injection liquid is rough, and the precision is controlled by the program Injection volume adjustment,  by setting the number of pulses to achieve precision adjustment Overall dimensions(Lx W x H)  380 x 130 x 120mm Weight 13kg  Email : tob.amy@tobmachine.com  Skype : amywangbest86  Whatsapp/Phone number : +86 181 2071 5609
battery electrolyte filling machine
Single Head Battery Electrolyte Filling Machine
TOB-JLB - 10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system
China Leading Cylindrical Battery Electrolyte Filling Cup Manufacturer
Cylindrical Battery Electrolyte Filling Cup
It is an auxiliary tool for the electrolyte injection process of a cylindrical lithium battery.
Rotary Plunger Pump
Ceramic Rotary Plunger Pump for Battery Electrolyte Filling
This TOB-ZYB-01 ceramic rotary plunger pump is suitable for high-end trace of liquid precision measurement such as medicine, electrolyte, acid, solvent, dairy products, glue, reagents and other industries of a variety of liquid media.
