8YSZ Electrolyte Supported Cells

Provides professional(customized size & shape ) 8YSZ electrolyte supported SOFC solid oxide fuel cells.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    T-8YSZ-ESUP
  • order(moq):

    1
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    Xiamen
Product Detail

8YSZ Electrolyte Supported Cells


SPECIFICATIONS


The electrolyte supported cells have the advantage of having a dense electrolyte membrane and thin anode and cathode electrodes. The dense electrolyte membrane enables enhanced sealing at the periphery of the cell, reducing efficiency losses due to reactant leakage. A thin anode electrode greatly reduces diffusion resistance. This in conjunction with enhanced sealing enables high single pass fuel utilization to be achieved. Additionally, because this design has thin anode and cathode layers it provides the opportunity for optimizing both material for various applications. Thus, enhanced performance or chemically resistant anode and cathode formulations can be developed. The downside to this approach is the thick electrolyte increases ohmic losses; thus lowering power density. Therefore, this cell type requires higher operating temperature to achieve equivalent performance.


Features:

– High Power Density

– High Mechanical Strength

– Long term Stability

– High Planarity

– Customized Size & Shape


We also provide SSZ Electrolyte Supported Cells.

 Model T-8YSZ-ESUP

 Product Type

8YSZ-supported Cells

 Electrolyte/Thickness

200±10μm

 Cathode/Thickness

25±3μm

 Anode/Thickness

10±3μm

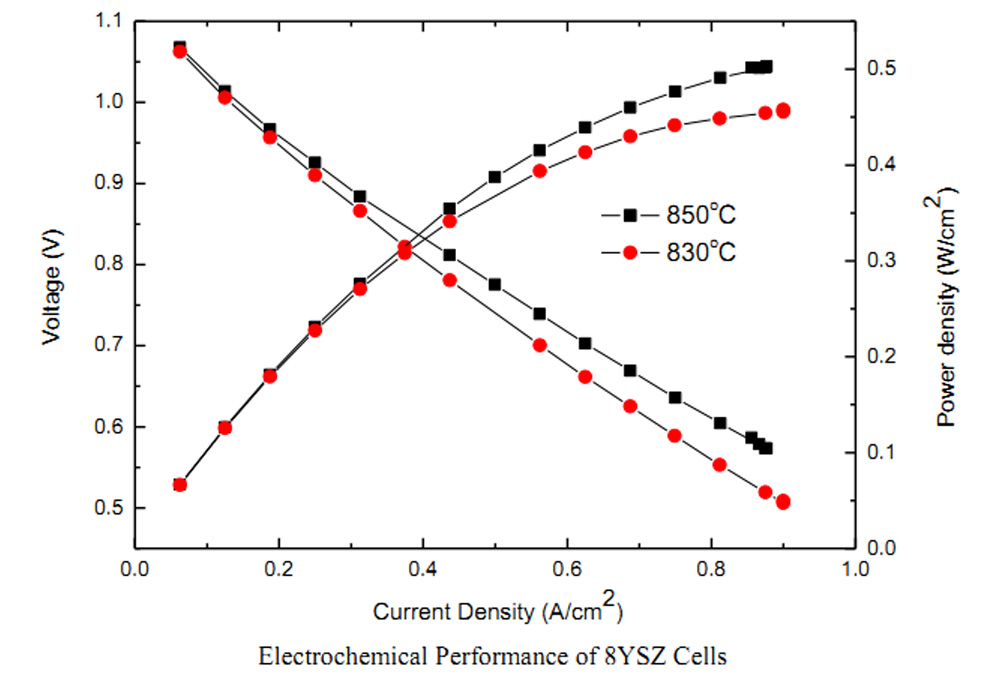

 Power Density

≥0.35W/cm2@830℃, 0.75V

 Size

Button to 10cm×10cm


Product Display


8YSZ Electrolyte Supported Cells

8YSZ Electrolyte Supported Cells

8YSZ Electrolyte Supported Cells
