Universal Tensile Strength Tester Testing Equipment Meter

TOB-BLY2510 used for lithium ion battery foil material (copper foil, aluminum foil, electrode, welding effect) and other related products of 180 degree peeling performance test.

Brand:
TOB NEW ENERGY
item no.:
TOB-BLY2510
order(moq):
1
Payment:
L/C,T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

Universal Tensile Strength Tester with Fully Computerized Measurement and Control

SPECIFICATIONS

TOB-BLY2510 used for adhesive, adhesive tape, adhesive stickers, medical patch, protective film, release paper, composite film, thin film, paper, lithium ion battery foil material (copper foil, aluminum foil, electrode, welding effect) and other related products of 180 degree peeling performance test. Can accurately measure the initial viscosity force value. Through high-precision imported brand sensors, ensure accurate and reliable data, products meet FINAT, ASTM and other international standards, widely used in research institutions, adhesive products enterprises, quality inspection institutions and other units.

Measure principle:

The test sample adhesive face to the standard board,was rolled three times with the standard roller, placed for more than 20 minutes, and then mounted on the test machine. The specimen and the test plate were stripped at 180°. The force value sensor recorded the force value during the stripping process, and then divided by the sample stripping width to obtain the final peeling strength.

Product feature:

This product tests various materials, semi-finished products and finished products for tensile, compression, bending, bonding, shearing, peeling, tearing and other mechanical properties test. All kinds of tensile or compression fixture can be configured to test the tensile, compression, bending, folding properties of various materials.

Parameter	Technical
Measure range	500N(or custom)
Measurementaccuracy	Better than±0.5%
Measurement resolution	1/250000（0.01N）
Effective measurement range	0.5-100%F.S
Unit conversion	N、kN、kgf、gf、lbf
Indication accuracy	Indication error±1%，indicationvolatility≤1%
Positional accuracy	≤0.01mm
Transmission way	High precision ball screw drive
Test speed	1～500mm/min(可调)
Effective travel of beam	1000mm
Effective travel between fixtures	650mm
Return rate	1～500mm/min（adjustable）
Measurement range	120mm
Display system	PCdisplay
Print function	Need connect printer to export test report in Word format, including: serial number, peak value, curve, average value, can be remembered. Etc.
Measurement and control software	SupportWindows7、Windows10
Fixture	One set of 180° stripping fixture
Measure steel plate	Mirror 304 stainless steel plate, roughness：50nm±25nm L150mmW50mmT2.0mm
Power system	Stepper motor + matching stepper driver
Sensor	suncells
Working power supply	AC220V50H
Machine weight	About90kg
Machine dimension	L480×W560×H1250mm
Spare part	testing software1. data line1.hand-operated box*1
Optional	Computer, printer

PRODUCT DISPLAY

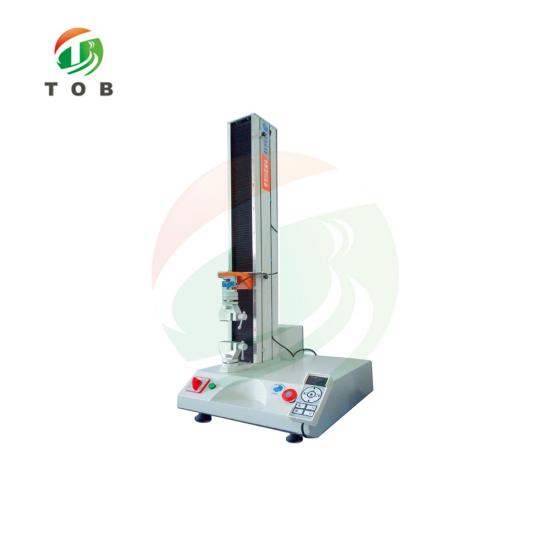

Tensile Strength Tester

Universal Tensile Strength Tester

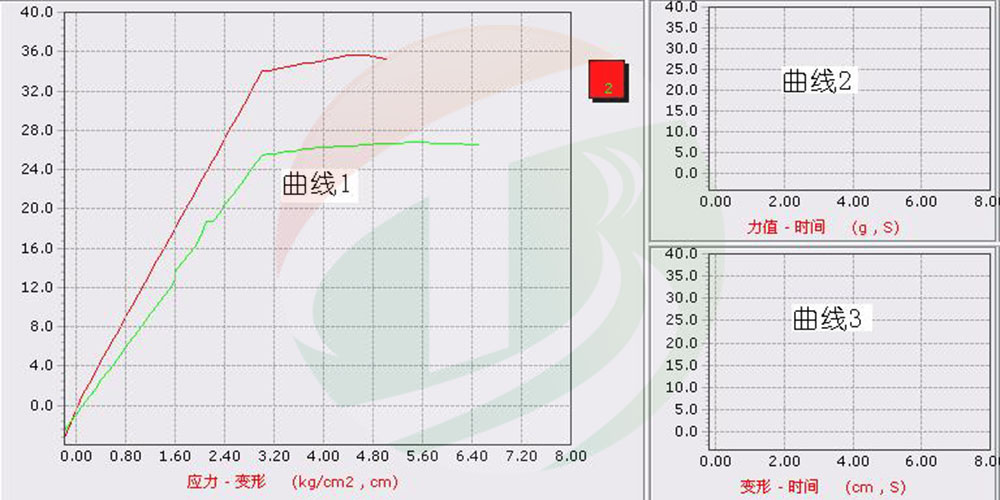

Software operate screen(English and Chinese can change)

A variety of format report selection, comprehensive test report function, can be arbitrarily edited
