Two Electrode Split Test Cell

TOB New Energy provides two electrode test split cell of different materials. TOB-PSLC-14-316 is used for lithium-ion battery, solid electrolyte, alkaline battery, and overcapacity testing. TOB-PSLC-14-Ti is used for zinc-ion battery and aqueous battery testing. TOB-PSLC-14-Mo is used for aluminum-ion battery testing and magnesium-ion battery testing.

Brand:
TOB NEW ENERGY
item no.:
TOB-PSLC-14
order(moq):
1 set
Payment:
L/C, T/T
product origin:
China
shipping port:
XIAMEN

inquiry now

Product Detail

14mm Inner diameter Two Electrode Split Test Cell

SPECIFICATIONS

TOB-PSLC-14-316

- Material: 316+PTFE, spring 1kg, 3kg optional.

TOB-PSLC-14-Ti

- Material: titanium+PTFE, spring 3KG.

TOB-PSLC-14-Mo

- Material: molybdenum+PTFE, no spring.

Size	Inner diameter is 14mm
Total length	122mm
PTFE intermediate length	59mm
Total length after cylindrical assembly	88mm

Material:

1. Stainless steel 316 + (1kg force spring or 3kg force spring) + PTFE (used for lithium-ion batteries, solid electrolytes, alkaline batteries, supercapacity testing, ceramic electrolytes use 1kg force springs, and the rest use 3kg force springs)

2. High-purity titanium + (3kg force titanium spring) + PTFE (used for zinc-ion batteries, aqueous battery testing)

3. Military-grade high-purity molybdenum (customized) + PTFE (used for aluminum-ion battery testing, magnesium-ion battery testing)

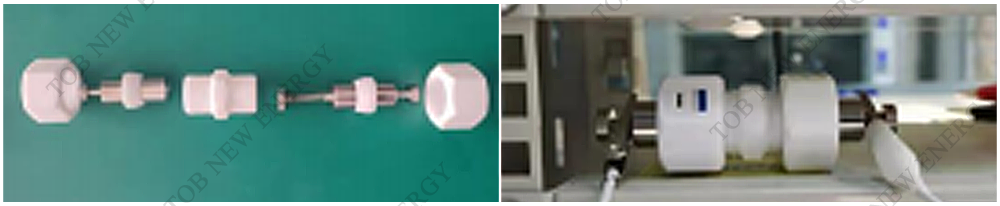

Product Display

Two Electrode Split Test Cell
