Threaded 60138 60130 Cylindrical Supercapacitor Cell Feeding Machine

60138 60130 Cylindrical Supercapacitor Cell Feeding Machine

SPECIFICATIONS

This TOB-RK60 supercapacitor cells feeding machine is used for supercapacitor (after the electric cell is welded and the o-ring of the upper cover is assembled) to be pressed into the inside of the shell, and the o-ring sealing ring is fastened inside.

Main features

- High precision guide column guide sleeve for guidance, shell size is stable.

- The height of the supercapacitor can be adjusted to suit products of different heights.

- Product counting function, easy to see the amount of processing.

- Cylinder speed can be adjusted evenly.

- Adopt optical curtain electronic protection, safe and reliable.

- Geometric design, delicate and beautiful.

- PLC control, man-machine interface display, simple and convenient operation.

- Optional high frequency heating into the shell, the quotation not included this function

Working process description

Manually put the product into the product positioning base bracket, put the upper cover of the cell into the upper cone sleeve, press down the foot switch, and the lower cylinder will push the product into the lower end of the cone sleeve, and press down the upper cylinder, slowly press the cell, the upper end cover and the o-ring into the shell from the large and small inside the cone sleeve. After the completion, all parts will be returned to the original position and take out the product.

Installation environment requirements

Equipment water and electricity, load bearing, working temperature and humidity requirements, equipment size, etc.

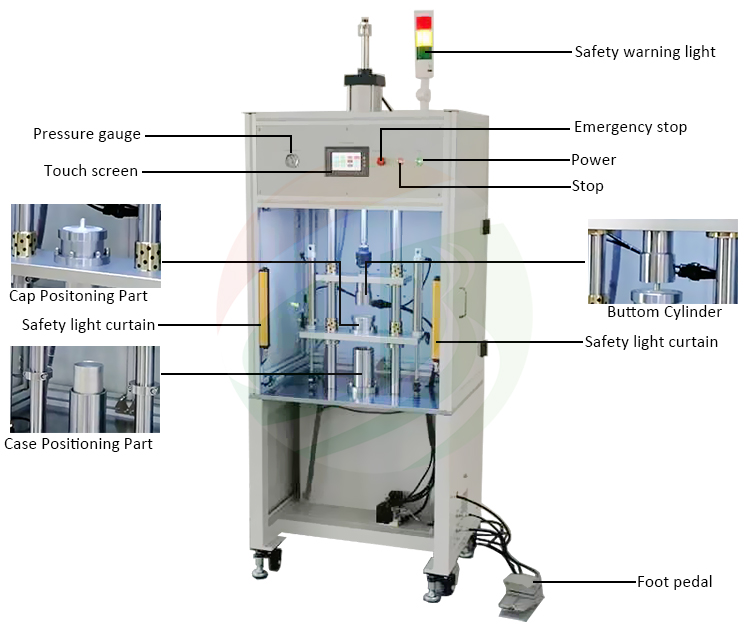

PRODUCT DISPLAY
