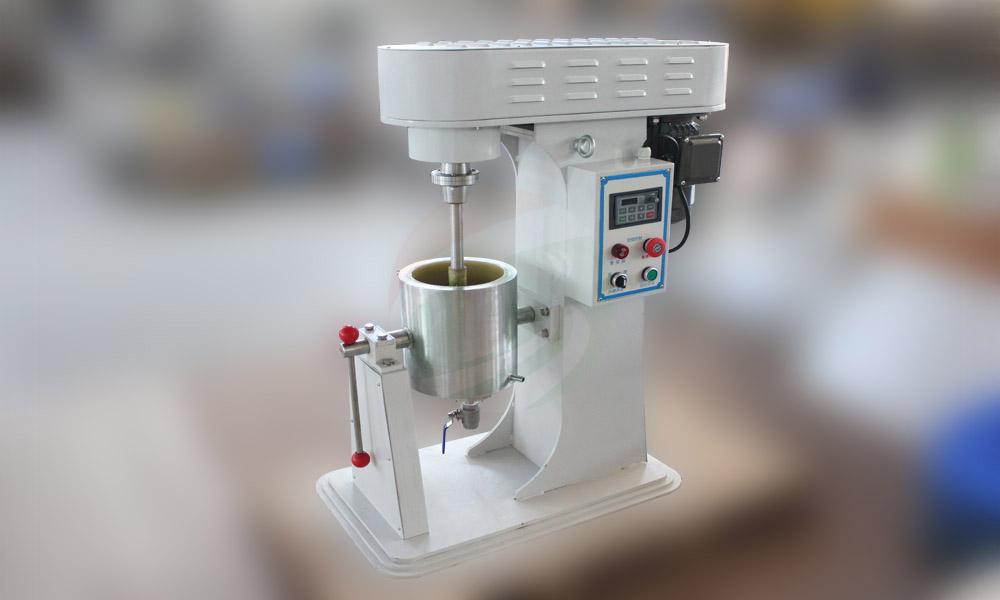

Stirred Ball Mill for Laboratory

TOB New Energy provides 30L capacity stirred ball mill for laboratory, we can also provide 5L and 10L models, contact us for more details.
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-JM-30L
  • order(moq):

    1set
  • Payment:

    L/C,T/T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail
Stirred Ball Mill for Laboratory (suitable for lithium ion battery sector research)



30L Stirred Ball Mill Specification (5L and 10L Stirred Ball Mill Supply too!)


Ⅰ. Product overview:

Stirring stainless steel mill is mainly composed of a standing cylinder filled with small diameter grinding medium, stirring device and other auxiliary devices (e.g. Loop device, cooling device, timing, speed control, etc.), high grinding efficiency, grinding particle size is small, can be a very good for a variety of process parameters, simulation of the indicators of production, at the same time because of its small volume, low power consumption, low price advantage, is a school, research units, the company is crushing technology, new material, coating study the preferred equipment. Widely used in zirconium silicate, zirconia, alumina, ceramics, chemical, electronic materials, magnetic materials, paper making, coating, non-metallic ore, new materials, paint, graphite, calcium carbonate, pharmaceutical and other ultrafine powder production field.


Ⅱ. Product principle:

The spindle drives the stirrer to rotate at high speed, so that the grinding medium does irregular movement. This disorderly movement produces the collision, extrusion, friction and shear of the grinding medium, so that the material is crushed and finely ground. In addition, the size, shape and ratio of grinding media are different, and the grinding effect is different. In general, the larger the size of the grinding medium, the coarser the material is crushed; On the contrary, the smaller the grinding medium, the finer the material grinding; The grinding effect will be better if the proper ratio of different grinding medium and the proper adjustment of speed are added


Ⅲ. Product feature:
1. High energy utilization, can obtain very high power density, so energy saving.
2. The product granularity is easy to adjust, and the final fineness can be guaranteed by adjusting the retention time of the material in the barrel.
3. Low vibration,low noise.
4. Simple structure and easy operation.
5. Can well meet process requirements,can carry our continuous or intermittent production as required.
6. Because the grinding barrel has a jacket,the grinding temperature can be well controlled.
7. Can be produced according to the need with a variety of special functions of the equipment,such as: timing,speed regulation,Circulation, temperature regulation, etc.
8. Can choose different materials of grinding barrel and mixing device(stainless steel,Corundum ceramics, polyurethane, zirconia, etc).


Equipment model

TOB-JM-30L

Grinding barrel volume

30L

Loading capacity

10L

Grinding barrel material

Stainless steel

Material feeding size

Small than 10MM

Discharge size

1-10um

Mill mode

Wet mill

Rotate speed

60-310/min(frequency conversion)

Motor power

3KW

Size

950*760*1770mm


PRODUCT DISPLAY


Stirred Ball Mill

Stirred Ball Mill
