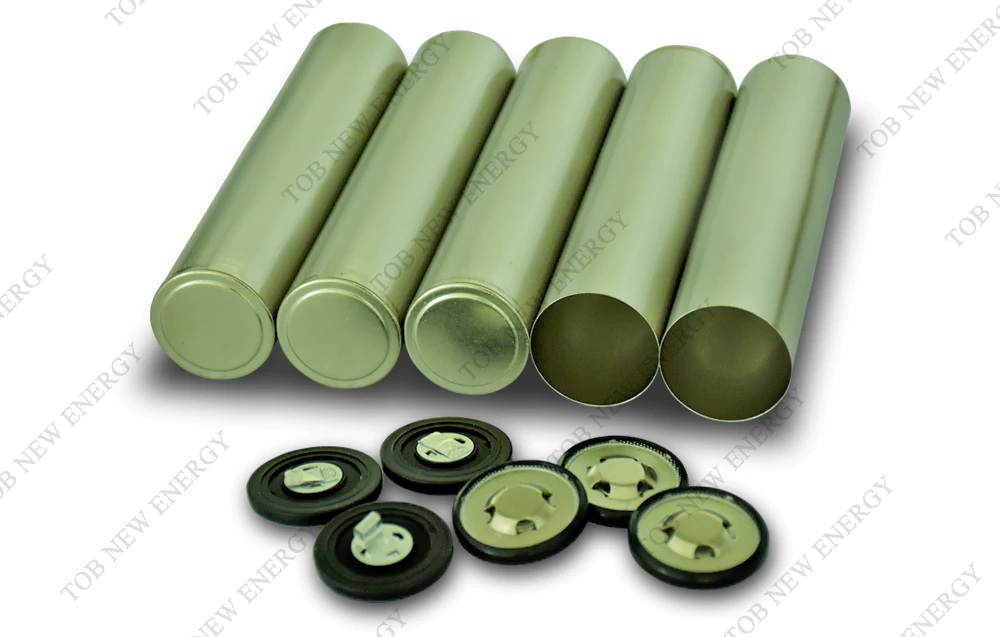

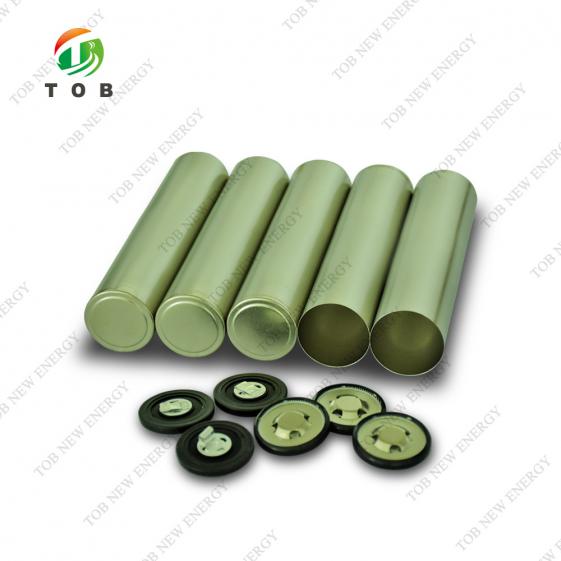

Stainless 32140 Cell Cans

Material

Battery Steel

Main Dimension

Item(mm)

Min

Max

Item(mm)

Min

Max

External diameter

Φ33.0±0.05

32.95

33.05

Internal diameter

Φ32.4±0.05

32.35

32.45

Cylinder wall thickness

0.30(±0.05,0)

0.30

0.35

Total height

144±0.1

143.9

144.1

Bottom wall thickness

0.50

0.50

Thickness of plating layer in the middle of the shell≥2.5um

2.5um

-

Bottom diameter

Φ25.0±0.05

24.95

25.05

Bottom diameter height

0.15

0.15
