Sodium Nickel-iron-manganate Electrode as Sodium Ion Battery Cathode

TOB New Energy providesSodium Nickel-iron-manganate Electrode for Sodium Ion Battery Cathode
  • Brand:

    TOB NEW ENERGY
  • item no.:

    TOB-Electrode-Na
  • order(moq):

    1
  • Payment:

    L/C,T
  • product origin:

    China
  • shipping port:

    XIAMEN
Product Detail

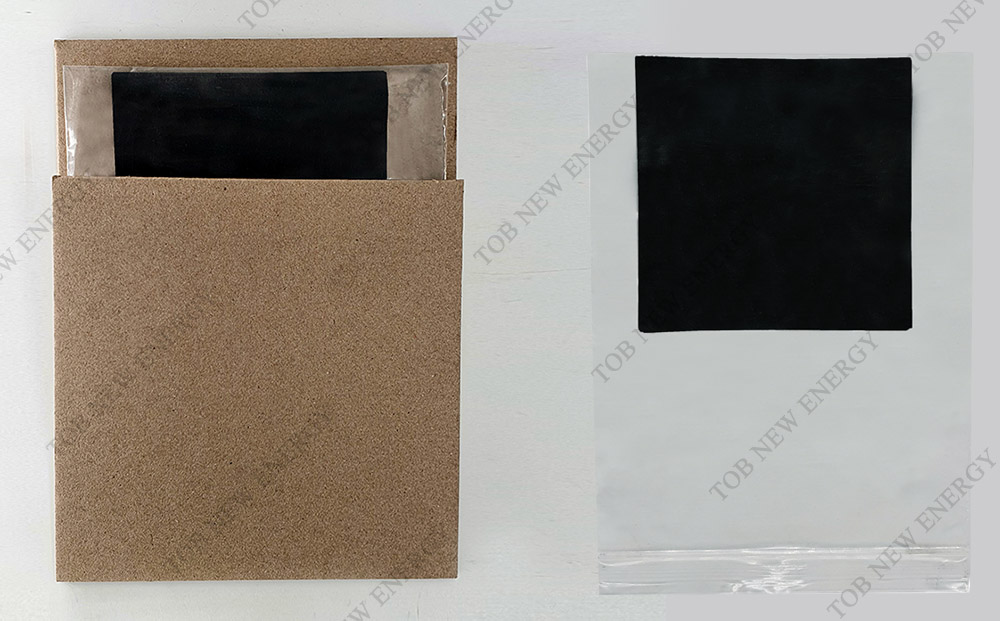

Sodium Nickel-iron-manganate Electrode as Sodium Ion Battery Cathode for R&D


SPECIFICATIONS



Model1:TOB-Electrode-Na-1 Single-sided without roller press 170usd/bag

Model2:TOB-Electrode-Na-2 Single-sided roller press 190usd/bag


The contact between the particles and the current collector is better, and the internal resistance of the battery is smaller, which is conducive to the exertion of gram capacity and improves cycle and rate performance.


Packing 5Ps/bag

Thickness of current collector (um)

12um

Surface density of current collector (mg/cm2)

3. 3

Density of coated surface (mg/cm2)

About 8.0mg/ cm

Proportion of active substance

94%

Gram capacity of active material (mAh/g)

120mAh/g(2. 0^ 4.0V)

Recommended compaction density (g/cc)

1.0^ 1.5

Surface capacity (mAh/cm2)

0.90

Shelf life

One year (kept in vacuum package), use up within one month after opening

Gram capacity description

25°C,0.1/0.1C,2.0~4.0V

Size

10cm * 1 0cm

Instructions for use

It is recommended to use after vacuum baking (85°C/4h) to remove water.



Electrode

Battery Electrode

Sodium Ion Battery
